OUP-07S
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:6 Piece(s)
Payment Method : T/T
Keywords:Air pump
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | YANTIAN |

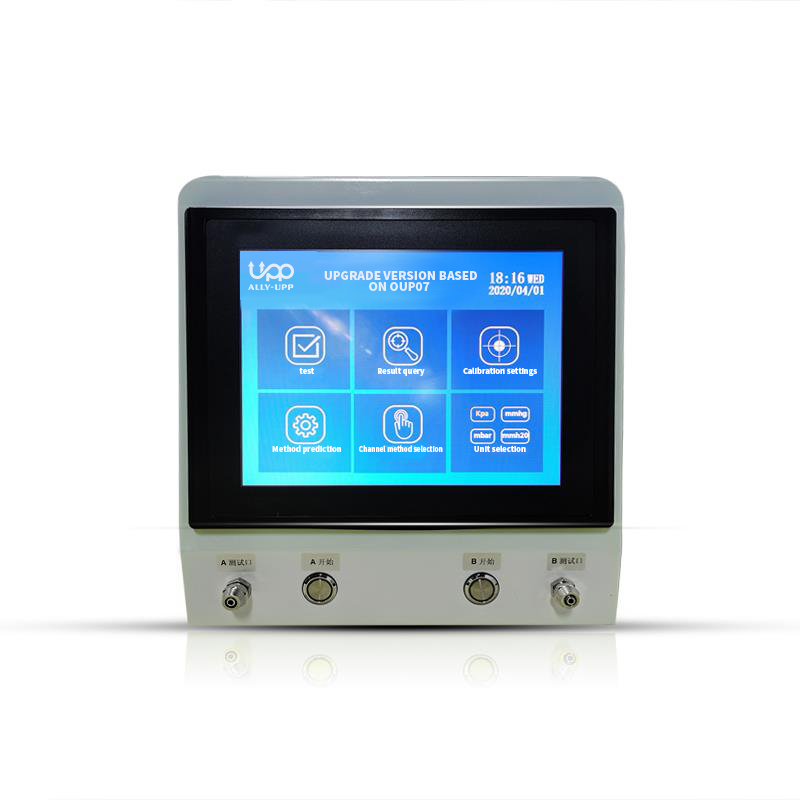

Model: full automatic leakage measure instrument NP07
Pressure measure range:-50KPa~0/0~50KPa/0~500KPa/0~800KPa, range optional
Resolution ratio: 0.01KPa/0.01KPa/0.1KPa/0.1KPa
Display: LCD
Time setting: start, aerating, balance, air discharge time 0~99S; measure time setting range 0~9999S
Control input: start 1 (outer connection) Control input: start 2 (outer connection)
Control output: CH1 ( Start, PASS, FAIL, switch signal output)
CH2 ( Start, PASS, FAIL, switch signal output)
Air connect port: connect outer diameter 6mm soft pipe
Power supply: AC220V (Wide voltage)
Air source: common air compressor air source; connect outer diameter 8mm soft air pipe, air source air pressure required at 0.5MPa~1MPa;
Test joggle: double way test (CH1, CH2), means can same inlet test, also can divide to independently test and improve the test efficiency
Size: 250*120*310 mm
Measure agent: clean atmosphere, air (no corrode gas)
