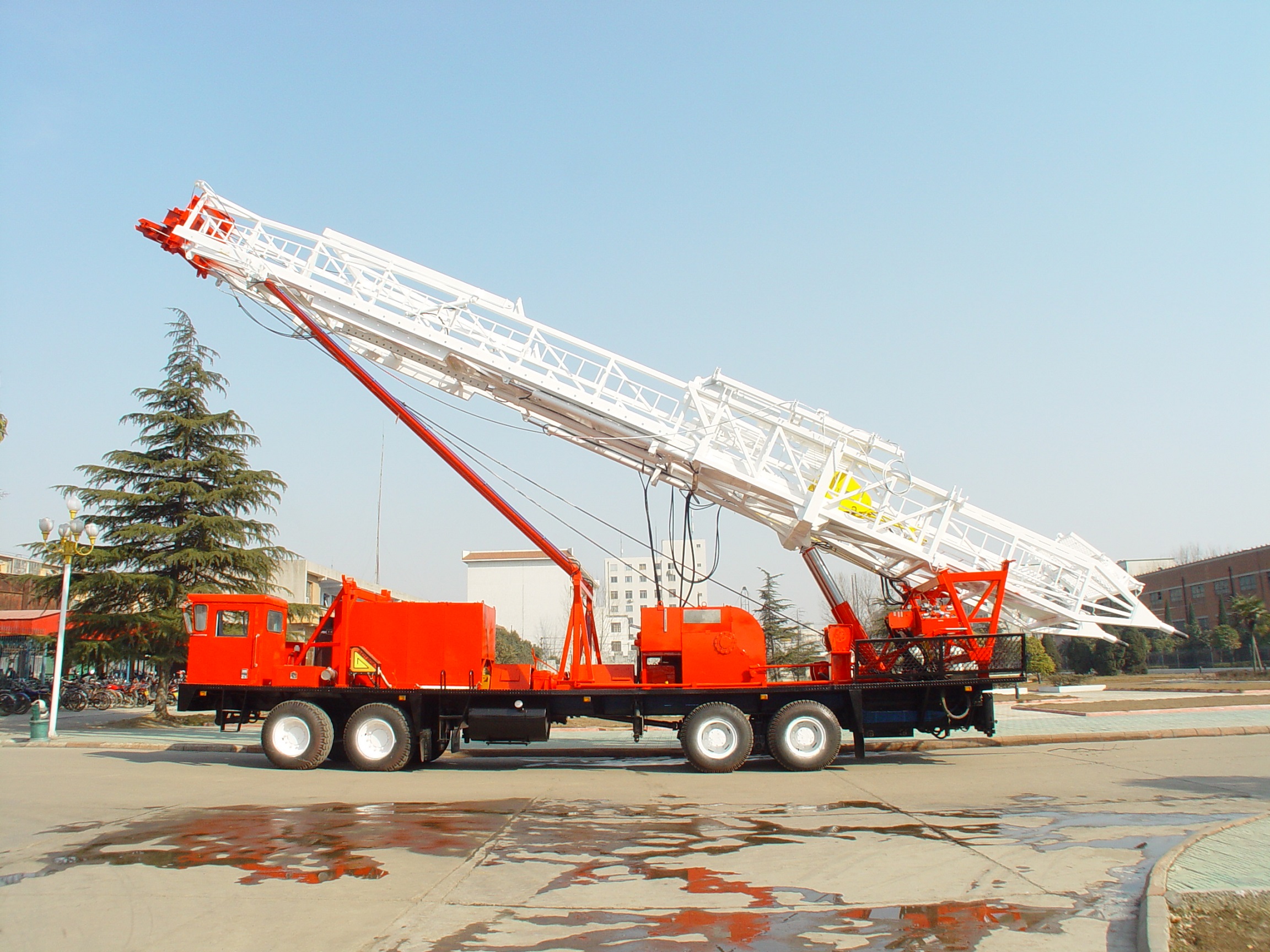

Slant-Well Workover Rig

Oil & Gas Oil and Gas Equipment

FOB Price:US$ Customizable price / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:Slant-Well Workover Rig Slant-Well Workover Rig oilfield oil gas rig

Inquire


Add to Favorites

Product Category: Oil & Gas > Oil and Gas Equipment Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai

Feature:

The slant-well workover rigs can be used for service and workover operations on the slant wells of oil, gas and water with a slant degree of 45°~ 80° and well depth of less than 5000ft.

The chassis is a heavy-duty 8*4 drive chassis with a hydraulic steering system, which has a good cruise performance.

The whole unit could be moved in both longitudinal and transverse directions with a stepless adjustable function to allow the wellhead to be centralized quickly and conveniently.

The secondary-deck board and light-duty working platform are lifted hydraulically and locked mechanically, which is safe and reliable.

These workover rigs can also be used for slant-well drillings after being equipped with a power swivel.



Product Parameters:

Model

XXJ700

Max hook load (kN)

700

Rated Hook Load (kN)

400

Rated workover depth  (73mm)m

2000

Drawworks powerkW

269

Lines

6

Wireline dia. (mm)

22

Mast height  (m)

21

Max Hook speed (m/s)

1

Mast Dip

45°～80°

Main Brake

band and disc brake

auxiliary brake

224WCB

carrier model

XD40/8×4

Min ground clearance (mm)

311

Min diameter of turning circle m

27

emission standard

国V




Contact Name: Mrs XIN WANG Contact Email: 19****8@qq.com
Contact Job Title: Sales And Marketing Contact Mob: 137***804
Contact Tel: 0086 0377 63577509 Contact Fax:
Address: NO.869 WESTERN ZHOGNZHOU ROAD, NANYANG CITY, HENAN PROVINCE, CHINA Website: http://www.ejpetro.com



RG PETRO-MACHINERY GROUP CO., LTD. is one of the largest and the most professional manufacturers of Petroleum drilling equipment in China. RG is the member of Associate Member of IADC. RG Acquired API Spec Q1, 4F, 7K,8C, and obtained TUV Certifications and ATEX Certifications.  We are proud to serve the international oil and gas drilling industry. Our applications not only work reliably from day one. They are built to last a lifetime.



Products classified as 12 Series in more than 200 kinds mainly includes truck-mounted drilling rig, skid-mounted drilling rig, offshore drilling rig and unconventional oil and gas development equipment.
