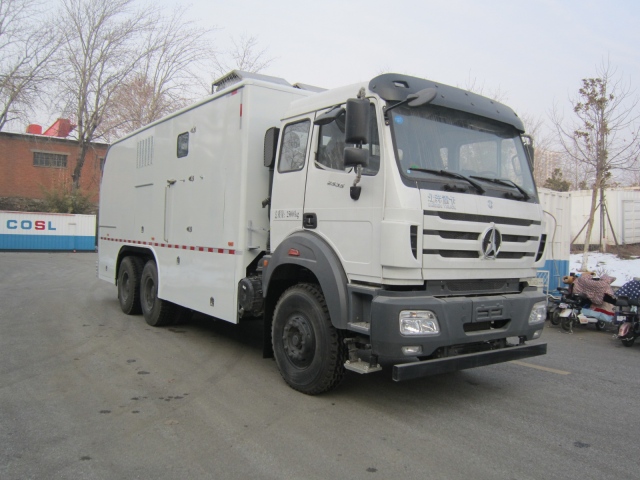

Chassis: The imported Benz 3341 chassis is equipped with German OM 501LA turbocharged & Inter-cooled intelligent control and its power can reach 402HP26000ft. The Europe Ⅲ standard engine adopts a 6*4 drive. This type of truck is the optimum choice for super-deep logging work in domestic oil fields.

Drawworks: 26000ft single drawworks or 23000ft double drawworks can be installed (the small drawworks uses hydraulic elevation, which is convenient for operation). Its drum is cast and welded with full-anti-magnetic steel, and dynamic balance tests have been done after machining and heat treatment to create a highly stable and reliable drive. The brake system is a double-belt pneumatic control brake, and a tension overload automatic brake device is installed to ensure safety. The framework is welded using high-grade seamless rectangular tubes and firmly connected with subsidiary beams to ensure advanced performance, safety and reliability of the whole unit.

Drawworks Transmission System: The main hydraulic system and hydraulic generator dive are controlled separately and individually. The power of the main system comes from the engine via full-power driving devices. Its output torque can reach 1106lb.ft[U1] , with plenty of power for easy operation. The hydraulic system utilizes dosed-circulation loop operation, which can realize bully stepless speed adjustments. The pneumatic control and large torque transmission box are made inChinaand are used as the main unit of the hydraulic chain transmission system; giving it application in deep-well logging operations. The product has reliable performance with an overloading auto-stop system installed for the drawworks to ensure safe running of the equipment. The W16T hydraulic shit gearbox is imported fromUSAand is utilized for the full hydraulic system, which has a large speed-adjusting scope and neutral shift. Two drive ways are applicable in all kinds of working conditions for logging operations. Its minimum speed can be lower than 98.4ft/h so as to meet super-low-speed working requirements. The hydraulic generator is driven by the power output end on the gearbox side.

Carriage: The carriage is constructed using a steel framework and the deck inside the operation cabin is made of straight-vein stainless steel plate. After polyurethane foaming treatment, the carriage body has excellent heat conservation performance and is installed with a ceiling air-conditioner imported from theUSA. The operation table and toolbox are made of 5700 steel and provide a comfortable environment. The drawworks cabin floor is made of 0.15in waved-type aluminum plate, underneath which are strong and durable steel sheets. The outside deck is also installed with aluminum plate which has been treated by the processes of oxidation sand-blasting; the surface is coated with imported Dupont paint so that perfect performance can be maintained permanently in severe environments.

Rope Guider Device: The upper rope guide is hydraulically controlled. With hydraulic power and an imported control valve, it is convenient for operation. This system also has a servo-buffering function so that it is convenient and reliable for operation.

Electrical System (110V/220V): This system is equipped with a HARRISON hydraulic generator, imported diesel generator and extermal power which can supply power synchronously or individually to meet the requirements of different electrical devices. The lighting installed on the wellhead can be self-rotated so as to ensure a safe driving environment and convenient logging operation.

Auxiliary System: Instrument racks have been equipped with rollers with an airbag structure for convenient use.

Product Parameters:

 [U1]1217lb.ft(5256)
