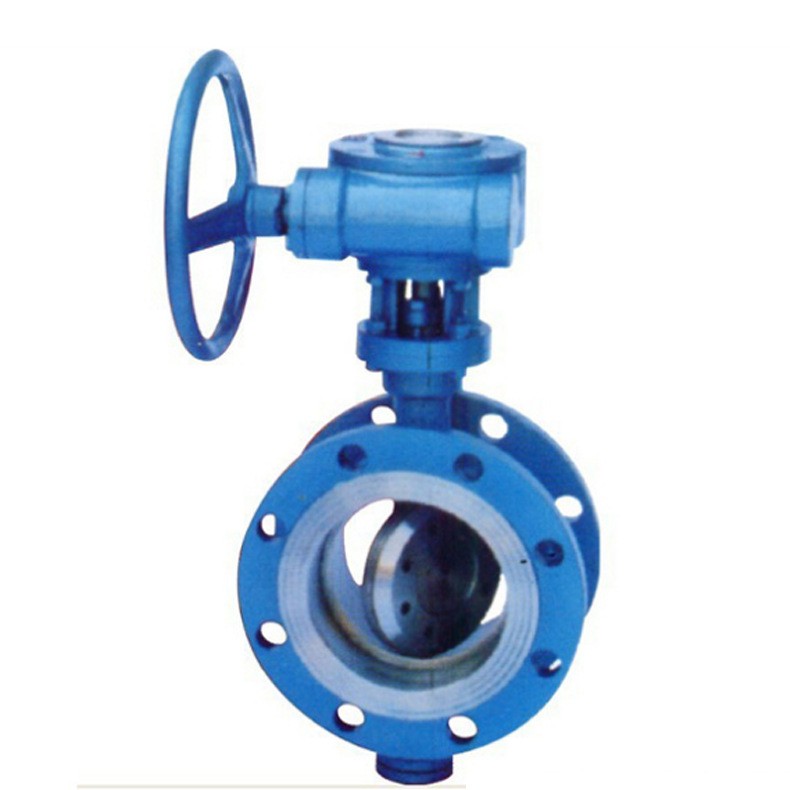

Gear Operated Butterfly Valve
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union
Keywords:Butterfly Valves valve ductile iron steel
| Product Category: | Oil & Gas > Piping and valves | Trademark: | TRS |
| Product Package: | wooden case | Specifications: | 2~48"(DN50~DN1200） |
| Place of Origin: | Tianjin,China | Port: | Tianjin, China |
Gear Operated Butterfly Valve
【Size Range】: 2~48"(DN50~DN1200）
【Pressure】: PN10, PN16, Class125
【Body Materials】: Cast Iron, Ductile Iron
【Seat Materials】: NBR, EPDM, VITON
【Disc Materials】: Ductile Iron, WCB, CF8, CF8M, Al-bronze C958
【Stem Materials】: SS416, SS304, SS316
ADVANTAGES
Worm gear operated flange butterfly valve Features
Worm gear operated flange butterfly valve:
Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
Adoptive Standards
Worm gear operated flange butterfly valve:
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211
Product Advantage
1、The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline
2、The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve
3、Triangle support material, guarantee the required mechanical properties
4、According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation
5、No groove at the bottom to make sure no slag and full bore flow
6、TRS valve strict implementation of the API598 experimental standard, for each product to implement 100% positive and negative double pressure test, guarantee delivery to customers is 100% qualified products
7、TRS Group dedicated to the dedication of the valve for 23 years, with professional production, sales, research and after-sales team,we are your strong backing.
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
