SS Global Valve
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union
Keywords:global valve SS gloal valve stainless steel valve stainless steel global valve valve
| Product Category: | Oil & Gas > Piping and valves | Trademark: | TRS |
| Product Package: | wooden case | Specifications: | DN50-400 |
| Place of Origin: | Tianjin,China | Port: | Tianjin,China |

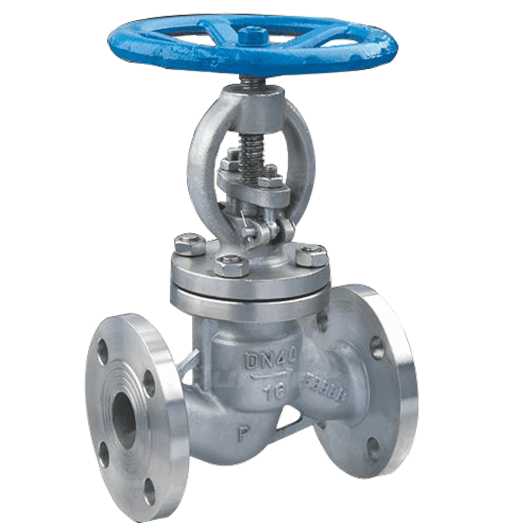

SS Globe Valve
【Body Materials】: WCB
【Disc Materials】: 304 , 316
【Stem Materials】: 304 , 316
ADVANTAGES
Flange connected valve applicable to nominal pressure PN1.6~PN4.0Mpa, roommate working temperature -29~425 DEG C, chemical, pharmaceutical, chemical fertilizer, the power industry and condition of the pipeline, cut off or connected to medium, suitable for water, oil, steam, acid medium, and the operation mode: manual, gear, electric, pneumatic, etc.
Detailed
Body Material:WCB
Bonnet:WCB
Yoke: WCB
Disc: 304 , 316
Stem: 304, 316
Seat:25, 304, 316
Packing: Flexible Graphite
Adoptive Standards
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Product Advantage
1,The sealing surface has the advantages of good sealing performance, easy operation, no damage to the sealing surface, long service life and no water hammer phenomenon.
2,The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
3,Stem after the modulation and surface nit riding treatment, has a good corrosion resistance and abrasion resistance.
4,The product can be used with standard pipe flanges and flange sealing surface in the form, to meet the needs of various projects and user requirements.
Standard Test
Valve design and manufacture according to GB/T12237-1989
Valve test according to GB/T13927-1992
PARAMETER INFORMATION
| PN(Mpa) | Connection Flange | Pressure test | Temperature | |
| Shell | Seal | ≤425 | ||
| 1.6 | RF | 2.4 | 1.76 | |
| 2.5 | RF | 3.75 | 2.75 | |
| 4 | RF | 6 | 4.4 | |
| Part Name | Body, Bonnet, Yoke | Disc | Stem | Seat | Sealing Ring, Gasket | Packing |
| Material | WCB ZG1Cr18Ni9Ti ZG1Cr18Ni12Mo2Ti ZGCr5Mo | 2Cr13 304 306 Cr5Mo | 2Cr13 304 316 25Cr2MoV | 25 304 316 | 304 coated | Flexible Graphite |
