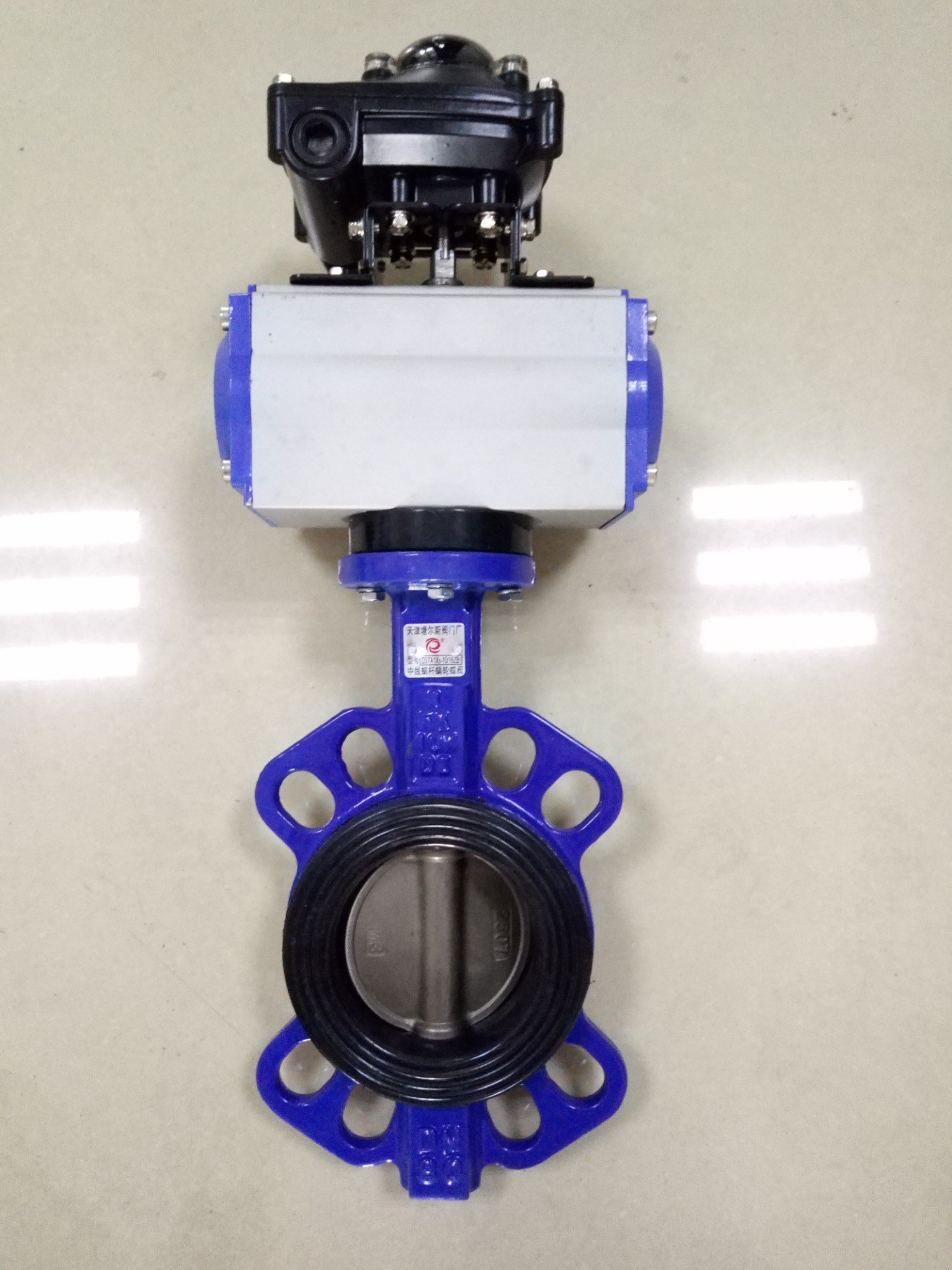

Replacebale Seat Pinless Lug Butterfly Valve
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union
Keywords:electric drive valve replacebale butterfly valve Lug valve butterfly valve
| Product Category: | Oil & Gas > Piping and valves | Trademark: | TRS |
| Product Package: | wooden case | Specifications: | DN50-DN150 |
| Place of Origin: | Tianjin,China | Port: | Tianjin,China |
Replacebale Seat Pinless Lug Butterfly Valve
【Size Range】: DN50-DN150
【Pressure】: PN6/10/16、5/10K、CL150、Table D/E
【Body Materials】: Ductile Iron
【Seat Materials】: EPDM/NBR
【Disc Materials】: DI/SS304/SS3016/C954
【Stem Materials】: 45#/420/SS304/SS316
ADVANTAGES
Applicable medium：Water and neutral liquid
Suitable temperature：- 20 ~ 120 ℃
Application field： Water supply and drainage, water treatment, water conservancy projects, etc.
FEATURES
| Parts | 1 | 2 | 3 | 4 | 5 | ||||||
| Name | Body | Seat | Disc | Stem | Handle | ||||||
| Material | DI | EPDM | SS304 | 420 | DI | ||||||
| Size | L | L1 | L2 | ΦD0 | Class150 | PN 16 | PN 10 | ||||
| DN | NPS（inch） | ΦK | n-M | ΦK | n-M | ΦK | n-M | ||||
| 50 | 2" | 43 | 79 | 161 | 86 | 120.7 | 4-5/8" | 125 | 4-M16 | 125 | 4-M16 |
| 65 | 2 1/2" | 46 | 82 | 175 | 101 | 139.7 | 4-5/8" | 145 | 4-M16 | 145 | 4-M16 |
| 80 | 3" | 46 | 95 | 181 | 121 | — | — | 160 | 8-M16 | 160 | 8-M16 |
| 100 | 4" | 52 | 114 | 200 | 144 | 190.5 | 4-5/8" | 180 | 8-M16 | 180 | 8-M16 |
| 125 | 5" | 56 | 125 | 193 | 171 | 215.9 | 8-3/4" | 210 | 8-M16 | 210 | 8-M16 |
| 150 | 6" | 56 | 139 | 209 | 200 | 241.3 | 8-3/4" | 240 | 8-M20 | 240 | 8-M20 |
