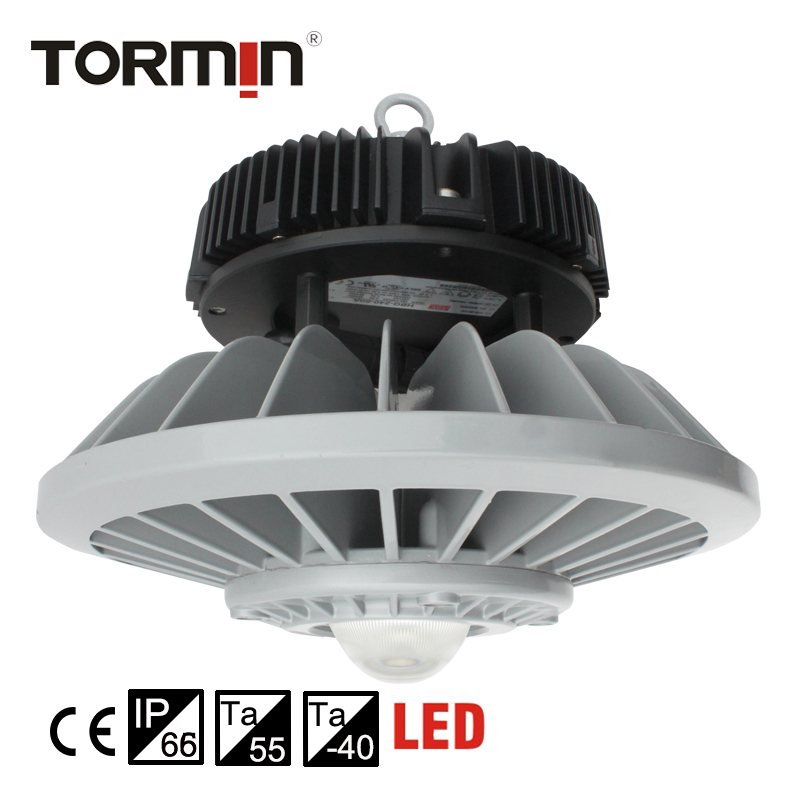

LED high bay light ZY8502 series

Lights & Lighting Pro,Commercial & Industrial Lighting

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T Western Union Paypal Others

Keywords:led light High Bay Lights LED High Bay Light LED Low Bay Light

Add to Favorites

Product Category: Lights & Lighting > Pro,Commercial & Industrial Lighting Trademark: TORMIN
Product Package: CARTON Specifications:
Place of Origin: CHINA Port: NINGBO/ SHANGHAI

Application

1. The product is suitable for use in power station, steel industry, workshop and other places.

Characteristics

1. Radiators adopt comprehensive self-loop design, long-term suitable for operating environment with high temperature and high humidity. Upper and lower ventilation fin structure, no dust.

2. Variety of light distribution, variety of installation types, an effective solution to beautify workshop and device platform.

3. It adopts imported light source, no dark zone in light spot, no ghosting, can save 60% or more on energy than theMetalHalideLamp.

4. AC and DC wide voltage constant power supply, power factor up to 0.98.

5. LED high bay light fixture can achieve quickly scene replacement of light source and electrical without welding.

6. According to user needs,achieve a variety of intelligent control.

Main specification

Item

Technical Parameters

Input voltage range

90~305VAC

Frequency

50Hz/ 60Hz

Light source

LED

Life time

50,000h

CRI

Ra 70(80 Optional)

CCT

5000K(3000K/4000K optional)

Dimension

φ230* 175mm(60W)

φ230* 180mm(80W)

φ300* 235mm(100~200W)

Net Weight

4.8Kg(Max)

Ordering reference

Ordering reference

Wattage

Light output

Space height ratio

Mounting height

Equivalent to

Metal Halide Lamp

ZY8502-L60

60W

>7600lm

0.4~1.75

8~10m

150

ZY8502-L80

80W

>9000lm

8~12m

175W

ZY8502-L100

100W

>11200lm

250W

ZY8502-L120

120W

>12900lm

10~15m

>250W

ZY8502-L150

150W

>16400lm

400W

ZY8502-L200

200W

>23000lm

400W~600W

Note: The above model numbers are ring mounted light, pole mounted lights are required to plus "P" after the modelnumbers (as ZY8502P-L150-100 °)
