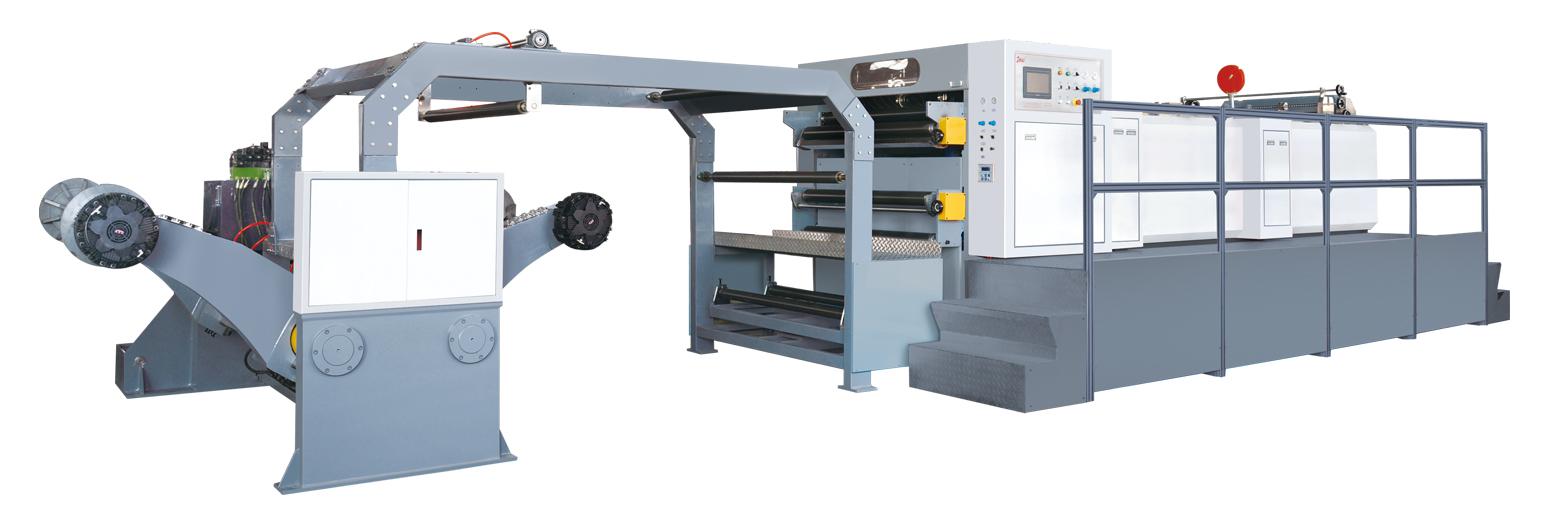

1400Model  high  speed  roller paper  cutting  machine-double roll

Technical parameters and configuration-single volume

Functional features

High-speed computer paper cutter is an economical and practical paper cutter. The modified machine is suitable for high-weight paper cutting with no burrs and no dust. It successfully solves the problem of dust in post-sequence printing and greatly improves the working efficiency. This machine adopts high quality Veluntong color touch screen, yonghong PLC control, simple and reliable operation, intuitive display. High precision servo drive motor, mechatronics design; Neat paper arrangement, front and left side with beat function, with counting and automatic marking device. Computer controlled automatic operation, high efficiency, high precision, high degree of automation.

The main engine is driven by Dedric servo motor. High precision, compact structure, lower inertia, high dynamic response characteristics. Special low speed and high torque characteristics and synchronization function. Excellent servo performance can be achieved. Save electricity.

Delta inverter controller, low speed and high torque, high positioning accuracy, fast response without overshooting.

Taiwan imported blade, tungsten steel welding edge, Taiwan raw materials, long blade life (up to one year).

4. The knife shaft adopts gb 45, tempering treatment, and never deforms. NSK imported bearings from Japan are used at both ends for long life and high precision.

Main technical parameters

Model: 1400 high-speed computer paper-cutting machine-double roll

1, Design Speed: 350 m / min, Economic Speed: 260m-300m/min

2. the length of the paper cutter (the length of which is based on the fou.ndation drawing) is about 12 m.

3, paper cutting accuracy ±0.3mm (at constant speed), less than 1.5m

4, Paper cut length: 450-1650mm (customizable to customer requirements)

5, cut paper thickness: 50g-550g/

6, Paper height: 1500mm

7, Machine Center height: 1700mm

8, total motor power: approximately 25-30KW

9, Warranty time: within 12 months of debugging and installation

Hydraulic shaft-less support

Technical parameters:

: original paper rack movement: full hydraulic action

* Paper clip range (working width): maximum 1400mm minimum 500mm

* Paper clamping diameter: max.1500 mm minimum diameter,350 mm

* unilateral maximum load: maximum 2000kg

* Spindle diameter of bracket: diameter φ 240mm

* Air source working pressure (MPa): 0.6 ~ 0.9 MPa

* Total equipment power: 3.75 kw

* Working power supply: voltage 380V frequency 50 Hz

* overall dimensions: 3550 × 1600 × 1650 (long x wide × high)

Hydraulic system parameters

* work pressure (MPa): 12 / 16 MPa

: hydraulic cylinder operating range (swing): φ 100mm x 500mm

: hydraulic cylinder diameter (clamping): φ 63mm x 750mm

* hydraulic station motor power: 3.7kw origin: Tianjin short-term working voltage 380V

* hydraulic station solenoid valve operating voltage: 220V 50Hz origin: Tianjin (Shengtian Youyan)

 design feature

* Taper cast iron paper head for 3-12 corrugated roll.

* Tension control adopts multi-point brake, automatic tension control, labor saving and time and labor saving.

* symmetrical structure can be installed to cut two rolls of raw paper at the same time.

* hydraulic drive, can complete the paper lifting, clamping, loosening, moving center.

Cutting part

* The front section adopts light alloy mist roller, and the design is reasonable, which can guarantee the flatness of paper.

* High precision synchronous belt pulley, manufacturing accuracy of more than 6 levels, low noise, smooth transmission.

* The main engine adopts Dedric servo drive motor, Shanghai Kefeng servo drive, high quality, quick response and accurate action.

* Shanghai Dedric inverter motor and Shanghai Kefeng inverter driver are used for feeding paper

* Tungsten steel blade, blade welding edge, long blade life (up to one year)

Conveying

* The conveying is divided into two stages: the first stage is high-speed conveying, so that the cut white board can be quickly removed from the cutter shaft; The second stage of slow delivery makes the white board run on top of each other. Quick access to the stack. A suction device is installed between the first and second stages of conveying so that the whiteboard sheets can be stacked neatly and stacked into stacks.

* Two sets of paper pressing wheels are set in the rear section, one of which can be adjusted forward and backward according to the length of paper cutting.

* Maximum paper cutting length 1500

Stacking

* The stacking department is equipped with front beat paper, side beat paper and rear baffle device. The front patting paper is an electric mechanical swinging device; The side beat paper is controlled by pneumatic vibration valve, which makes the white board stacked neatly and beautifully. The tailgate device can be adjusted back and forth according to the length of the white board.

* The stacking part is equipped with a label insertion device, which automatically counts and inserts the label paper.

* Maximum stacking height: 1500mm

Paper cutting machine parts\customer also can choose seimens
