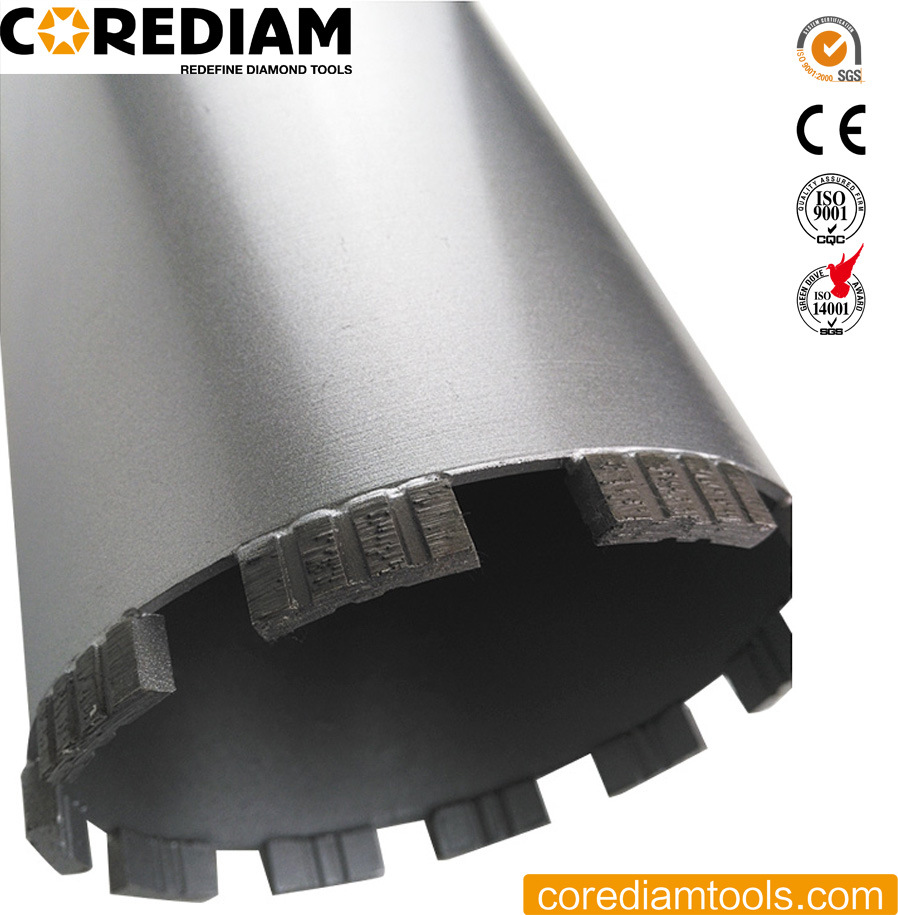

350mm Lasered Diamond Core Bit

Tools,Hardware & Instruments Power Tools

FOB Price:US$ 10.00 / Piece(s)

MOQ:20 Piece(s)

Payment Method : L/C T/T D/P Western Union

Keywords:Laser Welded Core Drill Diamond Core Drill Wet Core Drill Diamond Core Drilling Tools Core Drill Bit

Add to Favorites

Product Category: Tools,Hardware & Instruments > Power Tools Trademark:
Product Package: carton/pallet Specifications: 350x10x450mm
Place of Origin: China Port: Tianjin/Shanghai

1. introduction

This type of core drill is laser welded, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The segment sharp is normal rectangular segments. It can be installed on Stand Core Driller, Hand-Held Drillers. The diameter is 350mm.

2. Specification

Item No.DiameterSegment
Height
ArborEffective Length
CWDB0254501025mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0324501032mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0364501036mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0424501042mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0524501052mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0624501062mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0664501066mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0724501072mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0764501076mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0824501082mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB0924501092mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB10245010102mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB11245010112mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB12745010127mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB13245010132mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB15245010152mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB16245010162mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB17245010172mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB18245010182mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB20045010200mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB25045010250mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB30045010300mm10mm1 1/4"UNC / 1/2''BSP450mm
CWDB35045010350mm10mm1 1/4"UNC / 1/2''BSP450mm

3. Features

Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.
4.Corediam facility

5.Quality Control&Test

6.Delivery time&Packing

2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.

7.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

Contact Name: Mr. Michael Tian Contact Email: sa****s@corediamtools.com
Contact Job Title: Marketing Manager Contact Mob: 186***983
Contact Tel: Contact Fax:
Address: Website:
Shijiazhuang Corediam Tools Technology Co., Ltd, as a high-tech enterprise, concentrates on researching & developing, manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation. The main product ranges include laser welded saw blade, brazing saw blade, sinter hot-pressed saw blade, diamond grinding cup wheel, laser welded core drill, diamond wire etc. The advanced automatic pressing, sintering, German Dr.Fritsch full-automatic laser welding machinery have been adopted in manufacturing lines, and all the products are approved by rigorous inspection and quality control process. Corediam products are also authenticated by Germany MPA standard and European Union EN13236 Standard. Today Corediam export-sales network has rapidly expanded to more than 50 countries, including North America, Europe, Middle East, Southeast Asia and South America. In China, a perfect long-term strategic cooperative partnership has been established between us and the diamond tools distributors. As a reliable supplier of global diamond tools industry, we also focus on the professional total solutions of cutting, grinding and drilling for end users. In global, we provide the clients of mega project, such as road bridge, building renovation, railway, airport, stone mine, fire protection, and nuclear power plant, with professional diamond tools product and solutions, which is used in road saw, wire saw, wall saw, core drill, stone saw and grinding machine. It ensures that users can complete a great job. Corediam will insist on innovating and developing, and strives to create the redefined diamond tools leader to serve the global markets
