KLX-A-automatic computer spiral knife type machine (Taiwan)

Specifications

* Working width: 1400mm

* maximum cutter speed: 150m / min

* Cutter range: Maximum 9999mm Minimum 500mm

* cutter precision: ± 1mm when uniform

* cutter shaft diameter: φ240 mm wall thickness 30mm

* guide Paper shaft diameter: φ136mm grinding hard chrome plating, coating thickness 0.02mm

* Working power: voltage 380Vfrequency 50Hz

drive motor with* Tanwan Futian servo motor, power 22KW

* primary system used in Germany Kobe servo controller, power 30 KW

* whole Machine Dimensions: 2500mm × 1200mm × 1400mm (L × W × H)

Features:

* Special structure design, particularly good mechanical strength and base panels, wall panels with a perspective on both sides of the window for easy observation and maintenance.

* Automatic transmission uses circulating lubrication oil pump, ensure transmission accuracy.

* High-precision, high hardness grinding gears, resistant high-speed, long life, ensure precise blade engagement, cardboard smooth and no burrs.

* High-precision arbor, tool design, high-speed cutting is very stable.

* System-wide are using CE standard design and manufacturing, and industrial-grade computer rigorous testing to ensure the quality, longevity and stability.

* Use special power regenerative store design, power efficiency is very high, more power to overcome the instability in the factory environment.

* The system has automatic detection function can prevent abnormal use and operation of negligence caused loss of equipment.

* Computer can be automatically adjusted according to the specifications and production speed cutter cardboard acceleration; speed automatic tracking cardboard to keep pace.

* Computer can store 200 groups and sequential order or priority condition based auto-complete, 10-inch screen display various production message.

Raw materials and purchased parts

on both sides of wall and base material: 铸铁件

material up and down the arbor 45 steel Origin:  Tangshan Iron and Steel

Blade Material: W18CrV5Co5 (high-speed tool steel)

gear Material: 20CrMoTi quenched grinding process, accuracy class 6

main drive motor (AC servo) Power 30kw 1 Taiwan Origin: Shanghai Futian

main system servo controller, power 30kw 1 Taiwan Origin: Germany Kobe

pump motor power 0.37kw 2 sets of Origin: Guangdong

bearing categories: Harbin

Bearings Zhe Jiang

Appliances : Schneider

Pneumatic components categories: Spaceon origin Zhejiang

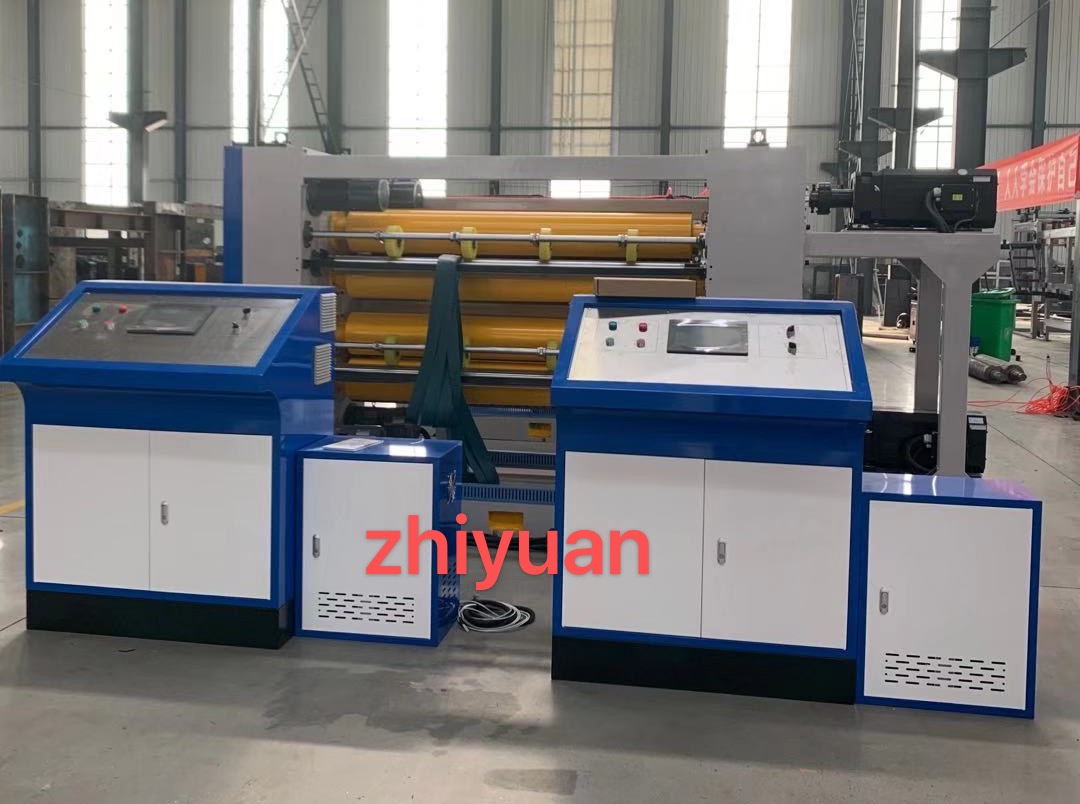

DOUBLE NC-CUT OFF MACHINE

TECHNICAL PARAMETER :

WORKING WIDTH: 1800MM

DESIGN SPEED:120M/MIN

WOKING SPEED:50-100M/MIN

CUTTING SHEET AREA: MAX 9999MM MIN 500MM

CUTTING PRECISION:±1MM

FEEDING ROLLER DIA: φ100MM

MACHINE WALL WIDTH 1000MM

POWER: 440KW 50HZ 90A

POWER CAPACITY: 53KW

MACHINE DIMENSION:4100MMX1550MMX1920MM

Structural features:

* Mechanical wallboard and base with special structural design and excellent strength. The wallboard is provided with perspective window.Easy to observe and maintain.

* The transmission system adopts automatic circulation lubrication of oil pump to ensure the transmission accuracy.

* Drive part adopts AC servo drive, German Kirby drive, domestic motor, high quality, quick response and accurate action.

* The computer can automatically adjust the cutting speed according to the paperboard specifications and production speed;Automatically track the running speed of the paperboard to keep in sync.

* The computer can store up to 999 orders and complete them sequentially or automatically according to priority conditions,The touch screen displays various production information.

* Paper cutting length 500~9999mm, paper cutting accuracy ±1mm.

Raw materials and purchased parts

Both sides wallboard and base material: HT200 casting

Upper and lower knife shaft material 45 steel

Blade material :W18crv5Co5 (high speed tool steel)

Gear material: 20CrMnTi fine grinding and quenching and tempering treatment, gear grinding precision of more than 6 levels, small side gap, low noise, smooth transmission.
