Stone Wall/Good price Galvanized Gabion Box And Basket (Factory)
Construction & Decoration Building Structural Material
MOQ:100 Set(s)
Payment Method : T/T Western Union Paypal
Keywords:Galvanized Gabion Box Application coated gabion box
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | HEBEI | Port: | TIANJIN |
Gabion Basket

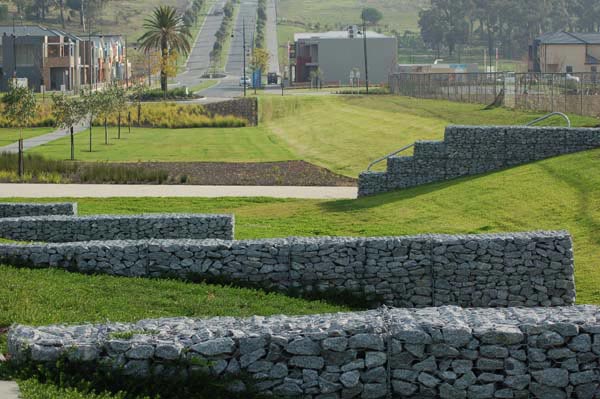

A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
Gabion Basket | ||||
Length | Width | Height | Number of | Volume |
2.0 | 1.0 | 1.0 | 2.0 | 2.0 |
3.0 | 1.0 | 1.0 | 3.0 | 3.0 |
4.0 | 1.0 | 1.0 | 4.0 | 4.0 |
2.0 | 1.0 | 0.5 | 2.0 | 1.0 |
3.0 | 1.0 | 0.5 | 3.0 | 1.5 |
4.0 | 1.0 | 0.5 | 4.0 | 2.0 |
2.0 | 1.0 | 0.3 | 2.0 | 0.6 |
3.0 | 1.0 | 0.3 | 3.0 | 0.9 |
4.0 | 1.0 | 0.3 | 4.0 | 1.2 |
The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc
Gabion Mattress
A double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions;
gabion mattresses are generally used for riverbank protection and channel linings.
Gabion Mattress | ||||
Length | Width | Height | Number of | Area |
3.0 | 2.0 | 0.17 | 3.0 | 6.0 |
4.0 | 2.0 | 0.17 | 4.0 | 80 |
3.0 | 2.0 | 0.23 | 3.0 | 6.0 |
4.0 | 2.0 | 0.23 | 4.0 | 8.0 |
3.0 | 2.0 | 0.3 | 3.0 | 6.0 |
4.0 | 2.0 | 0.3 | 4.0 | 8.0 |
The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc
Gabion Sacks
Gabion sacks are cylindrical baskets, which are good for water to seep through the structure, relieving the hydrostatic pressures, insure the earth's shear strength, well for whole structure's stable; meanwhile, saved the charge for traditional retaining drainage equipment, low down the whole cost.
Hexagonal opening (aperture):80x100mm
Wire diameter: 2.7mm
Selvedge wire: 3.4mm.
Production process
