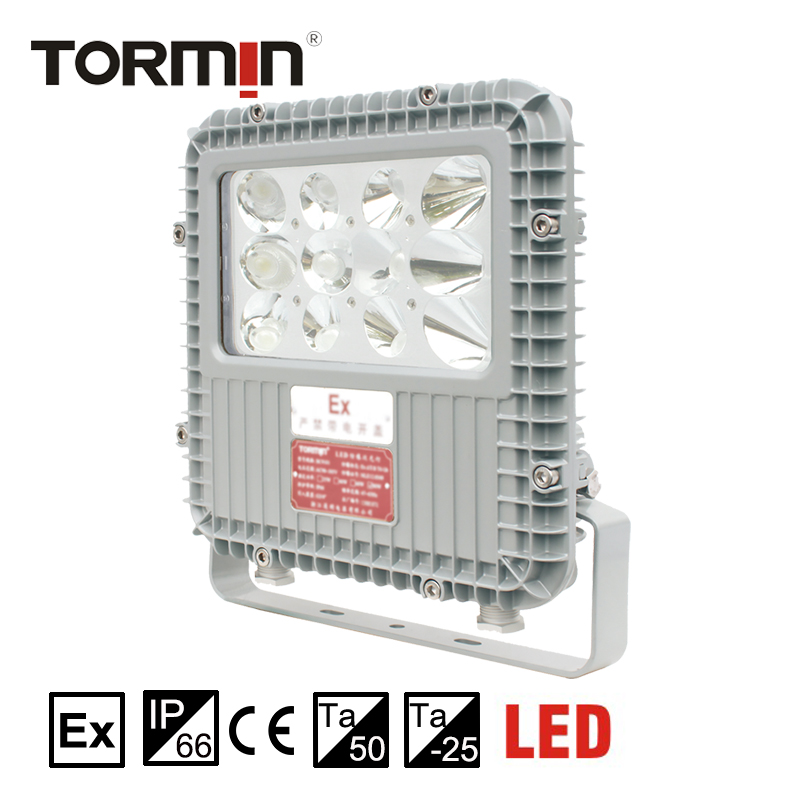

Emergency LED Explosion proof Floodlight BC9101A B series

Lights & Lighting Explosion-proof light

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T Western Union Paypal Others

Keywords:led emergency light Lamp LED Explosion-Proof Lights LED Explosion-proof Lights Antiflame light square light

Add to Favorites

Product Category: Lights & Lighting > Explosion-proof light Trademark: TORMIN
Product Package: CARTON Specifications:
Place of Origin: CHINA Port: NINGBO/ SHANGHAI

Application

1. Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.

2. Harsh environment, moist area.

3. Gas explosive environment: Group IIA; IIB.


Characteristics

1. Type A: usually can be used for 24 hours of lighting, the accident provides emergency lighting;
2. Type B : the accident to provide emergency lighting.
3. With its reflector which have different angles design, it efficiently utilize the light. Have a good performance of illuminance uniformity, glare free, can avoid eyestrain to the worker.
4. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long term use in high temperature environments.
5. It adopts CREE LED as light source, no dark spot, It adopts American CREE LED as light source, can save 60% or more on energy than metal halide lamp.
6. The adjustable locking device on the bracket can tightly fix the lamp to any desired angle, making the lamp resist to harsh vibration.
7. It is made using aluminum housing, all exposed fasteners adopt 304 stainless steel. Using high-tech anti-corrosion surface treatment technology, suitable for hazardous working areas.
8. Intelligent control functions can be realized.


Main Specification


Input Voltage

90-264VAC / 127-370VDC

Frequency

50Hz / 60Hz

Recharge Time

>6 hours

Ingress Protection

IP66

Rated capacity

2.6Ah/14.8V

Thread

G3/4''

Leading-in cable diameter

Φ9mm -Φ14mm

Dimension

370x326x88mm

Net Weight

9Kg



Drawing of dimension (Dimensions in mm)




Ordering Reference

Model No.

Type

Light
Source

Normal
illuminate
Wattage

(W)

Emergency
Wattage
(W)

Emergency
Duration
(minute)

Emergency
Luminous
Flux

(lm)

Replace

MH

BC9101A-L25-L15

Normal
illuminate
+ Emergency

LED

25

15

120

1,800

35W

BC9101A-L40-L15

40

15

120

1,800

35W

BC9101A-L60-L15

60

15

120

1,800

35W

BC9101B-L15

Only
Emergency

LED

/

15

120

1,800

35W

BC9101A-L25-L25

Normal
illuminate
+ Emergency

LED

25

25

70

3,000

70W

BC9101A-L40-L25

40

25

70

3,000

70W

BC9101A-L60-L25

60

25

70

3,000

70W

BC9101B-L25

Only
Emergency

LED

/

25

70

3,000

70W
