EPR tape
Print,Pack,Plastic Rubber & Plastics Products
MOQ:100 Roll(s)
Payment Method : T/T Western Union
Keywords:high pressure resistance high temperature resistance super sticky self amalgamating tape rubber tape insulation tape self voltage tape waterproof tape EPR tape
| Product Category: | Print,Pack,Plastic > Rubber & Plastics Products | Trademark: | Chaoda |
| Product Package: | 48 rolls per carton | Specifications: | 19mm x 0.76mm x 9m |
| Place of Origin: | Hebei | Port: | Tianjin, Guangzhou, Shanghai, Shenzhen |

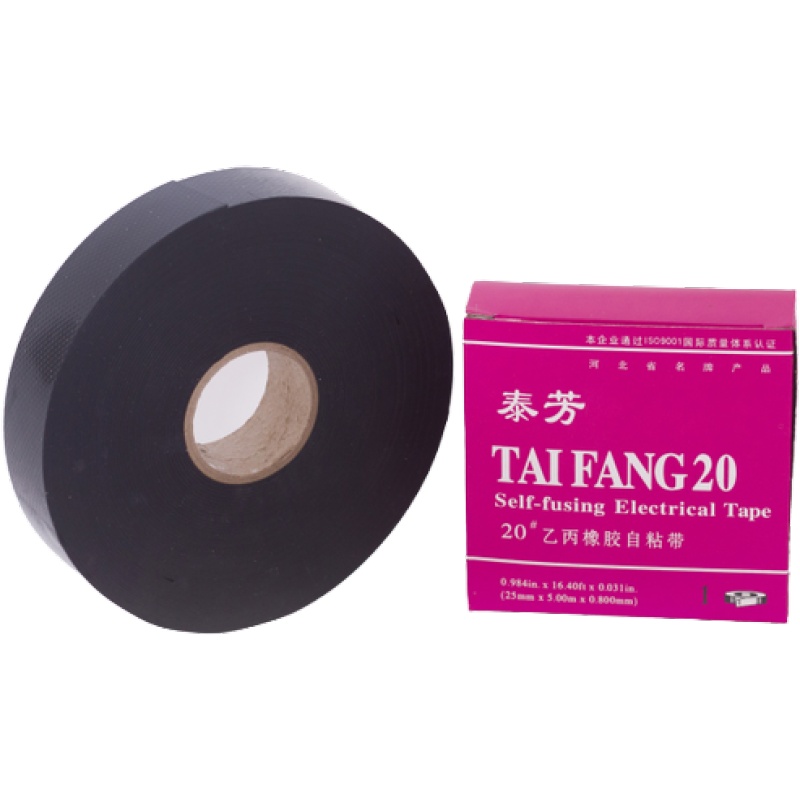

EPR tape
Ethylene propylene rubber adhesive tape is an excellent shape,self-melting ethylene-propylene base insulation tape, this is a no need vulcanization, stable property tape,has good insulation performance, ethylene propylene rubber self adhesive tape not only can be used for low voltage insulation but also for high pressure 69000 volts voltage insulation.
Features:
1. It can be used for docking and termination of cable,the emergency overload temperature can reach130℃
2. Ethylene-propylene rubber base
3. Physical and electrical properties are not affected by the drawing originated.
4. Self-melting tape
5. Excellent electrical properties
6. Special polyester release paper,will not stick on tape when unfold the tape
7. Can be used for solid dielectric cable insulation layer
1)Polyethylene (high and low density)
2)XLPE
3)PVC
4)Butyl rubber
5)EPR
6)Oil-based rubber
Application:
Main insulation recovery of 600-69000 volts solid dielectric cable;
The maximum of 35000 volts solid dielectric cable on the make the stress cone main insulation;
Intermediate head and terminal sheath recovery;
Moisture-proof sealing of electrical connections;
Busbar insulation;
Cable end sealing.
Usage:
When using should continuous to tape with a lap of one half to tape half lapped until it reaches the required thickness,when used should stretch ethylene propylene self adhesive tape after use.
In key parts,the adhesive tape has been stretched to the verge of cracking point, so it will not change its physical or electrical properties, in not very critical parts, it does not pull so long.
