PV cable for solar energy

Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 0.80 / Meter(s)

MOQ:300 Meter(s)

Payment Method : L/C T/T Western Union

Keywords:cable Solar Cable electric electricity PV CABLE pvc

Add to Favorites

Product Category: Electrical & Power Energy > Wires,Cables & Accessories Trademark: Yajian
Product Package: plastic package or wooden drum Specifications: DC: 1 500V / AC: 1.0 kV
Place of Origin: Hebei province Port: Tianjin


Applications:

photovoltaic cable on solar modules and inverters in a photovoltaic system.
U0 = 1.5 kV DC

Advantages:
EN50618 Approval
Electron -beam cross-linked compounds
UV,ozone and hydrolysis resistant
High temperature resistance, the material do not melt or folow
Good cold flexibility
Very long service life>25 years at 90℃

Compatible to all popular connectors

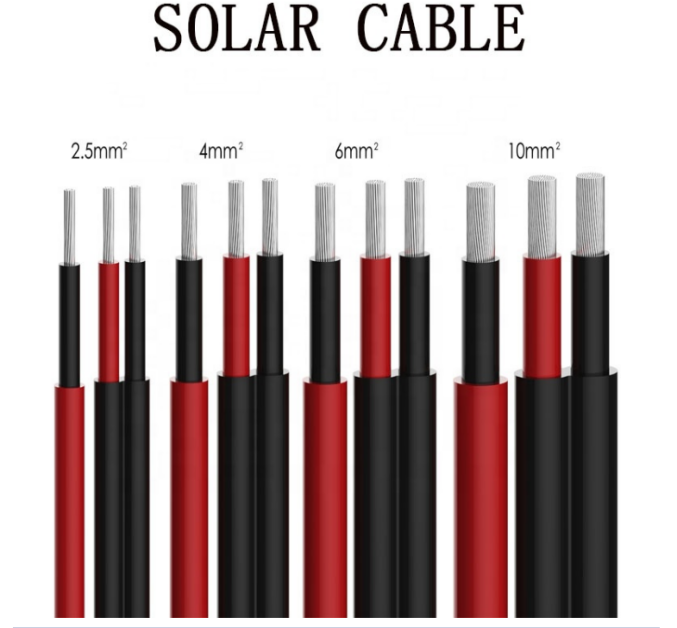

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

Rating Voltage

DC: 1 500V / AC: 1.0 kV

Temperature

-40°C-- +90°C

Max. Temperature at Conductor

120℃

Protection Class

II

Conductor

Tinned annealed copper

Insulation

120°C XLPO, white

Jacket

120°C LSZH, black or red

Certification

TUV (Tested according to: EN 50618:2014 and IEC 62930(ed.1) )

No. Of cores x Construction

(mm2)

Conductor Construction

(n / mm)

Conductor No./mm

Insul.

Thick. (mm)

Current Aarring Capacity (A)

1x1.5

30/0.25

1.58

4.9

30

1x2.5

50/0.256

2.06

5.45

41

1x4.0

56/0.3

2.58

6.15

55

1x6

84/0.3

3.15

7.15

70

1x10

142/0.3

4.0

9.05

98

1x16

228/0.3

5.7

10.2

132

1x25

361/0.3

6.8

12.0

176

1x35

494/0.3

8.8

13.8

218

1x50

418/0.39

10.0

16.0

280

1x70

589/0.39

11.8

18.4

350

1x95

798/0.39

13.8

21.3

410
