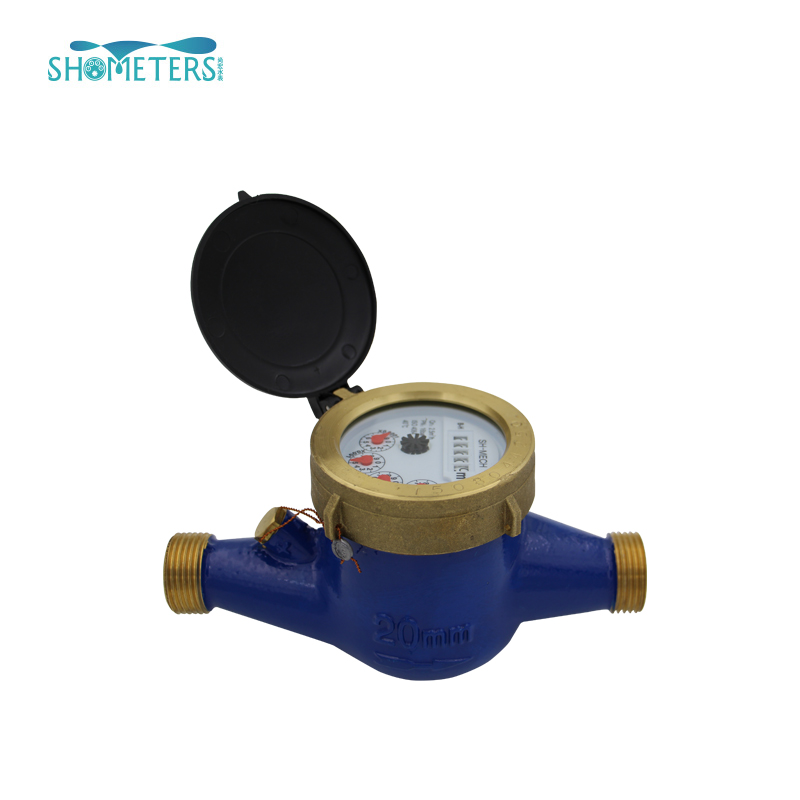

LXSG-15-50MM brass Multi-Jet water meter
Tools,Hardware & Instruments Measuring Instruments
MOQ:100 Piece(s)
Payment Method : T/T
Keywords:multi-jet water meter Water Meters
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | SHMETERS |
| Product Package: | Pallets | Specifications: | LXSG-15-50MM |
| Place of Origin: | China | Port: | QingDao |
MULTI-JET TYPE
Dry-dial Brass Body Water Meters
Application
Measuring the volume of cold (hot) water passing through the pipeline.
water meter is used for home or apartment
Features
Magnetic Drive, Lower transmission resistance.
Magnetic shield, for external magnetic field protection.
Sealed dry register ensures long time clear reading.
External regulating device.Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
With high accuracy
For horizontal use
Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
Register sealed type: Dry type; Semi-dry type; Super-dry type.
Accuracy: R=80/100/125/160/class b/class c.
Size: 15~50mm.
Cold / hot water.
Non return valve.
Reed switch option.
Several lengths and connections availavle on request.
Thread end type: BSP / NPT.
Materials: Plastic, brass,Brass interface,brass material
plastic Working pressure: PN10
brass Working pressure: PN16
Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Maximum Permissible Error
In the lower zone from qmin inclusive up to but excluding qt is ±5%.
In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
Water temperature: 0.1℃~50℃ for cold water meter;0.1℃~90℃ for hot water meter.
Water pressure: ≤1.6Mpa.
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
| Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
| Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
| Width(W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
| Height(H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
| Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
| Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
| Q4(l/h) | 3125 | 5000 | 7875 | 12500 | 20000 | 31250 | |
| Q3(l/h) | 2500 | 4000 | 6300 | 10000 | 16000 | 25000 | |
| R=80 | Q2(l/h) | 50 | 80 | 126 | 200 | 320 | 400 |
| Q1(l/h) | 31.25 | 50 | 78.75 | 125 | 200 | 250 | |
| R=100 | Q2(l/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
| Q1(l/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
| R=125 | Q2(l/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 200 |
| Q1(l/h) | 20 | 32 | 50.5 | 80 | 128 | ||
| R-160 | Q2(l/h) | 22.5 | 40 | 63 | 100 | 160 | 400 |
| Q1(l/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 250 | |
| Max.Reading(m3) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | |
| Min.Reading(Liter) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
| Pressure Loss(p) | 63 | ||||||
| Max.Temperature | T=50/90 | ||||||
| Pulse Output Option | Vmax=224V | ||||||
| Imax=1000mA | |||||||
| Pmax=2W | |||||||
Pulse Output Option
| Magnet Position | Liter/Pulse |
| *0.0001 | 1 |
| *0.001 | 10 |
| *0.01 | 100 |
| *0.1 | 1000 |
Warranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the SHMETERS.
