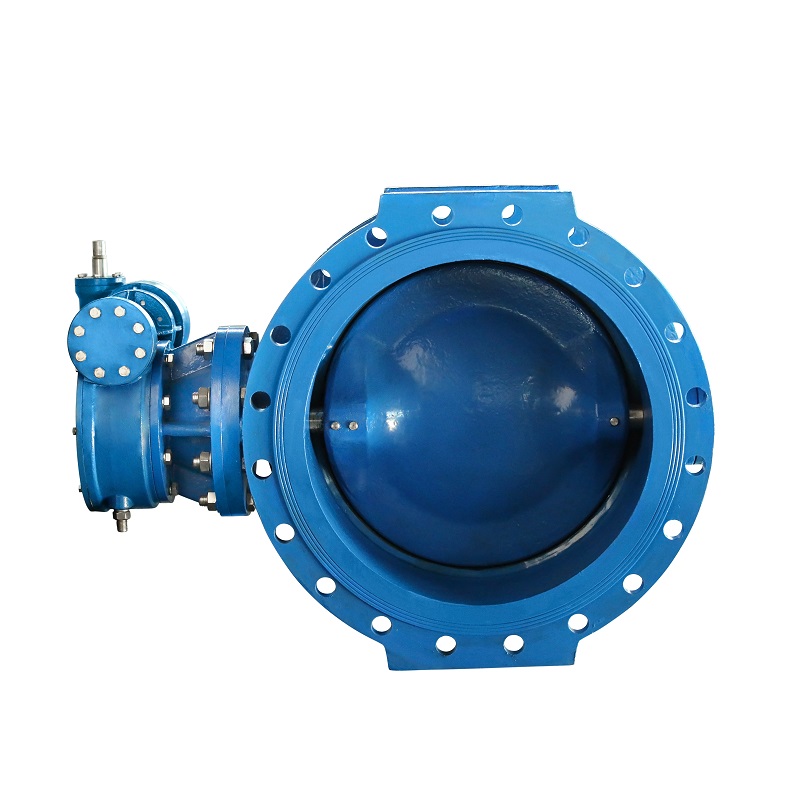

eccentric double flange butterfly valves

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ Customizable price / Piece(s)

MOQ:100 Piece(s)

Payment Method : T/T

Keywords:DI eccentric butterfly valves DI flange butterfly valves

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Valves & Pumps & Compressors Trademark:
Product Package: Specifications:
Place of Origin: Port: Tianjin port

Features:

1.       Double flange double eccentric butterfly valve can reduce friction and have longer service life.

2.       T structure of the disc sealing ring, the sealing pair is liner sealing.

3.       Replacing materiala of the disc ring, O-ring, disc and shaft, the valve can be used for various medium and temperature.

4.       The valve is uesd in single direction.



Materials:

The body material: Ductile Iron/Carbon Steel

The disc material : Ductile Iron/Carbon Steel

The stem material:stainless steel

The disc sealing material:NBR/EPDM

The pin material: stainless steel

The bushing material: PTFE/Bronze

Size : DN100-DN1800



Design Standard：BS5155, MSS SP 68

Test standard: DIN3230Part3, API598, EN12266-1

Face to face standards: DIN3202 F4, EN558 13/14 series, ISO5752 13/14 SERIES

Flange Connection：

DIN 2501PN10/PN16/;  BS4504 PN10/PN16



Working pressure: 10bar/16bar


Contact Name: Mrs Sunny Wen Contact Email: sa****s@diefeivalve.com
Contact Job Title: Business Lady Contact Mob: 152***335
Contact Tel: 86 319 5856919 Contact Fax: 86 319 5804150
Address: 河北省宁晋县晶龙大街502号 Website: www.diefeivalve.com

Hebei Diefei Valve Co.,Ltd is a specialized factory,which gathering the medium and lower pressure valve developing,manufacturing and selling together.We are one member of Chinese Valve Association,an advanced enterprise of the Valve Industry in Hebei Province&important producerin China.And we own the rights of the importing and exporting.We established Crane Ningjin Valve Co.,Ltd with Crane Valve USA in 1995. Our main products are Wafer Type Butterfly Valve,Screw End Butterfly Valve ,Flange Type Butterfly Valve,Wafer Type Check Valve,Gate Valve and Globe Valve.All the products are exported to USA,Europe,South Africa and South-East Asia,Taiwan etc,countries and area. In year of 2001,we got the ISO 9001 certificate and CE approved certificate. We would like to outstanding product quality and service,dedicated servive at home and abroad.
