11KV Single Core AWA PVC Cable

Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 1.00 / Piece(s)

MOQ:1000 Piece(s)

Payment Method :

Keywords:Un-armoured Cable Twin & Earth cable NYY Cable N2XH-J power cable  RZ1-K cable Double Insulated Cable H05V-U Cable H07V-R Cable THHN THWN Cable SWA/LSZH Cable

Add to Favorites

Product Category: Electrical & Power Energy > Wires,Cables & Accessories Trademark: SASUN
Product Package: Bag Specifications: 30 x 30 x 30
Place of Origin: CHINA Port: ningbo

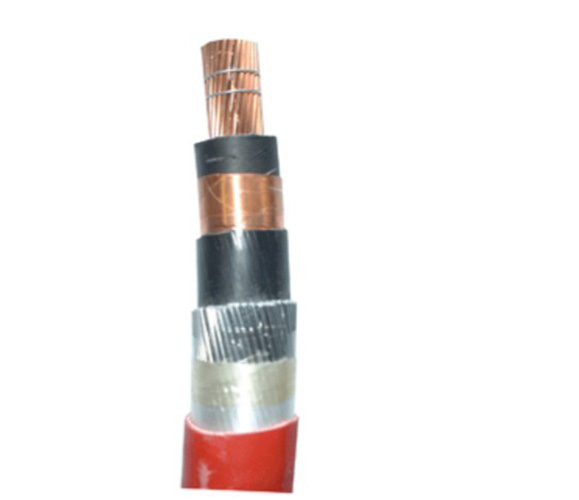

11kv AWA armoured mains power cable to BS6622 & IEC60502-2

Conductor: Plain annealed copper

Core identification: Coloured tape

Insulation: XLPE (Cross linked polyethylene)

Screen: Semi-conducting layer with a copper tape screen

Inner sheath: PVC

Armour: Aluminium wire (round)

Outer sheath: PVC

Colour: Red

Voltage: 6350/11000v

Operating temperature: Maximum 90°C, minimium bending 0°C

Standards: BS6622:

IEC60502-2: Power cables with extruded insulation and their accessories for rated voltages from 6kV to 30kV (Um=36kV)

Applications: suitable for power transmission






Contact Name: Mr Michael Zhao Contact Email: in****o@chinasasun.com
Contact Job Title: Purchasing Manager Contact Mob: 189***820
Contact Tel: 0086 579 85180820 Contact Fax: 0086 579 82144550
Address: F4-19037-6, Yiwu international Mart., Website: www.chinasasun.com
Sasun International Electric Co., Ltd, was established in 2001, As a professional manufacturer & exporter on high voltage overhead line products in China, our main product include all kinds of Cable Accessories , Dorp Out cutout fuse, and DISC / Pin insulators, Load Break Switches,Power fittings , etc, which are widely applied to transmission, distribution and substation used in urban & rural power grip(ranged from 400V to 1000kV) and utilities. Our factory is equipped with new machine and powered by rich manufacture skill with our long factory history. All production are strictly performed under ISO9001 system and most product are in comply with prevailing international standard like IEC, ANSI, BS, DIN, AS etc. Up to now, we have obtained type test report & product recognition for insulator, surge arrester, cutout fuse product from Chinese leading testing labs like China National Centre for Quality Supervision and Test of Insulators and Surge Arresters, China National High Voltage Apparatus Quality Supervision Testing Centre etc. Over the past 10 years, we have achieved sound reputation from domestic and oversea customer, by our reliable quality, reasonable price and sincere after-sale service. Our business has been rapidly expanded to over 30 countries and regions including African, East European, MID-East and South-America etc. We will continuously take full effort & endeavor to supply qualified product as well as excellent service to all our global old and new customers. We warmly welcome you to reach us for mutual beneficial & long-term cooperation.
