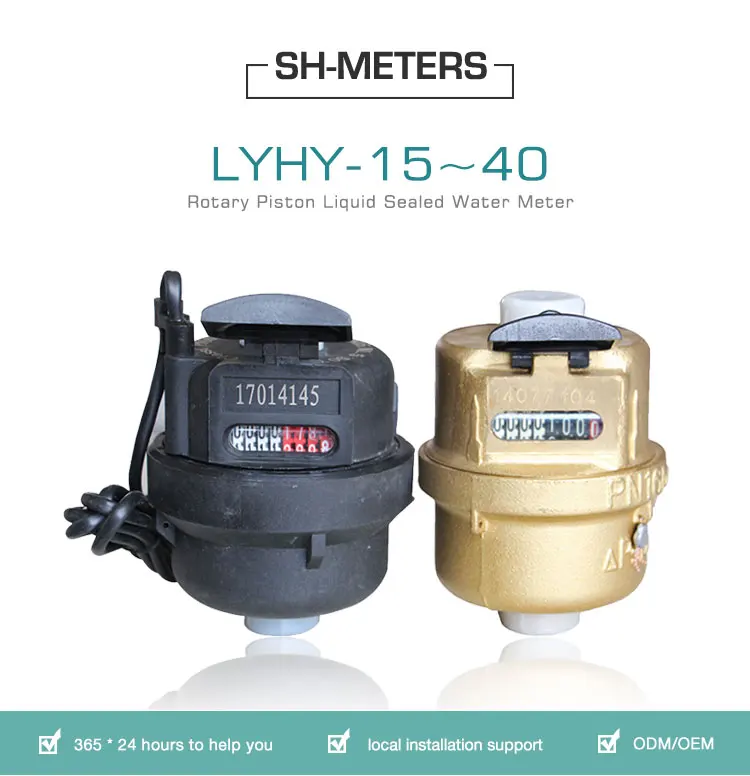

LYHY-15-40MM Volumetric water meter
Tools,Hardware & Instruments Measuring Instruments
FOB Price:US$ 21.00 / Piece(s)
MOQ:100 Piece(s)
Payment Method : T/T
Keywords:water meter Volumetric water meter LYHY water meter
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | SHMETERS |
| Product Package: | pallets | Specifications: | LYHY-15-40MM |
| Place of Origin: | China | Port: | QingDao |
Application
Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water
Operating Condition
The Max.Admissible water pressure 1.6MPa.
Resisting water temperature: 50℃.
Features
Low start-up flow rate.
Volumetric rotary piston principle of measurement.
·LXHY-15～20 is no location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline.
Register is sealed with a special liquid to keep a clear reading in long term service.
Mechanism use of high-quality material to ensure a stable characteristic.
Accurate measurement with conformity to ISO 4064 class C.
On request, the series can be equipped with a kind of remote transmission device.
Pulse Position
| Magnet Position | Liter/Pulse |
| *0.0001 | 1 |
*0.001 | 10 |
Note

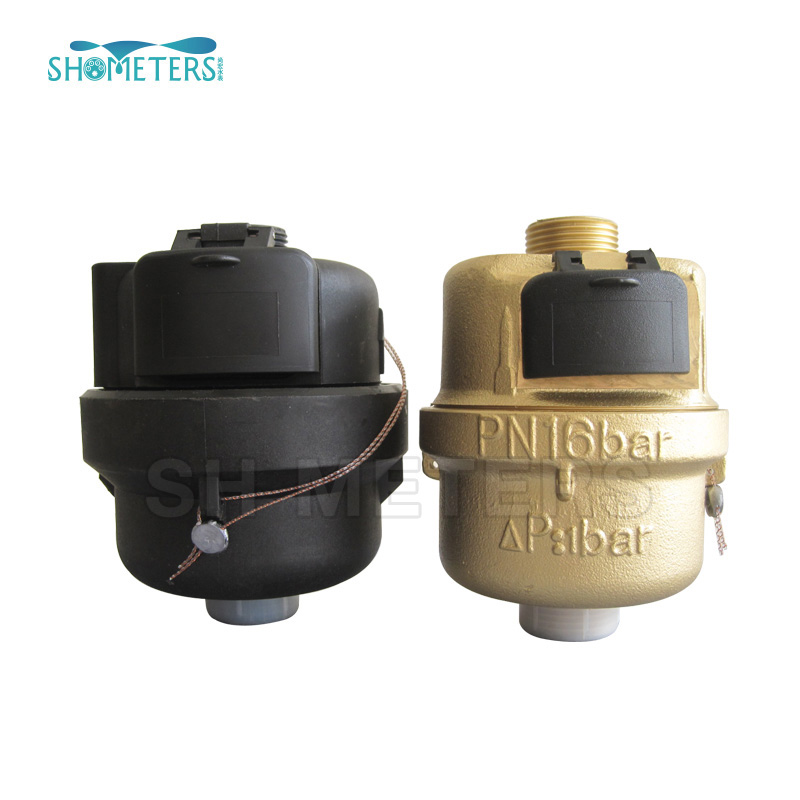

Body material: Brass body / Plastic body.
Size: Plastic body: DN15-20; Brass body: DN15-40.
Different register can be choose
| Dial Picture | Measure Unit |
 | Measure Unit: CBM 8 WHEELS Four red, four white wheel. The minimum reading: 1L |
 | Measure Unit: CBM 8 WHEELS Three red,five white wheel. The minimum reading: 1OL |
 | Measure Unit:UK Gallon 8 WHEELS One red,seven white wheel The minimum reading: 1 UK/Gallon |
 | Measure Unit:UK Gallon 8 WHEELS All white wheel The minimum reading: 10 UK Gallon |
 | Measure Unit:US Gallon 8 WHEELS One red,three black,four white wheel The minimum reading: 1 US Gallon |
Dimensions
| Description | Unit | Hydraulic Data And Dimensions | |||||
| Nominal Size | mm(inch) | DN15(1/2) | DN20(3/4) | DN(1) | DN32(1-1/4) | DN40(1-1/2) | |
| Q4 Error Limit ±2% | m3/h | 3.125 | 5 | 7.875 | 12.5 | 20 | |
| Q3 Error Limit ±2% | m3/h | 2.5 | 4.0 | 6.3 | 10 | 16 | |
| Q2 Error Limit ±2% | l/h | 25 | 40 | 63 | 100 | 160 | |
| Q1 Error Limit ±5% | l/h | 15.6 | 25 | 39.4 | 62.5 | 100 | |
| Min.Reading | l | 0.05 | 0.05 | 0.05 | 0.5 | 0.5 | |
| Max.Reading | m3 | 9999.9999 | 9999.9999 | 9999.9999 | 99999.999 | 99999.999 | |
| MAP | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Press Loss ΔP AT | MPa | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 | |
| L | mm | 115 | 165 | 199 | 260 | 300 | |
| B | mm | 43 | 43 | 53 | 60 | 77 | |
| weight | Without Connections | Kg | 1.14 | 1.56 | 2.48 | 3.47 | 5.65 |
| With Connections | Kg | 0.97 | 1.3 | 2.05 | 2.75 | 4.7 | |

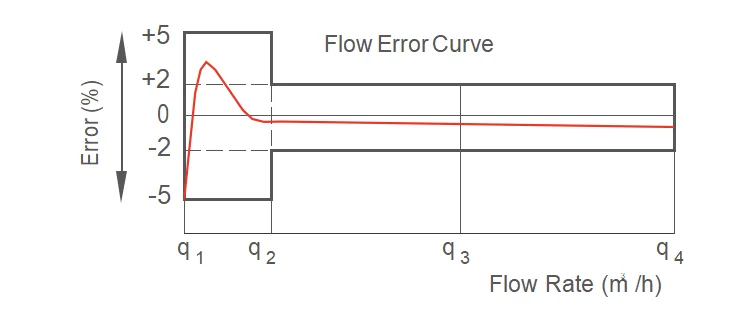

Maximum Permissible Error
Warranty
Allmeterswillbeguaranteedagainstdefectsinworkmanship
andmaterialsforaperiodofone (1) yearfromthedateof
acceptance.Defectivemetersorpartsdiscoveredwithinthis
periodshallbereplacedwithoutchargeuponreturntothe
SH-MECHMeters。

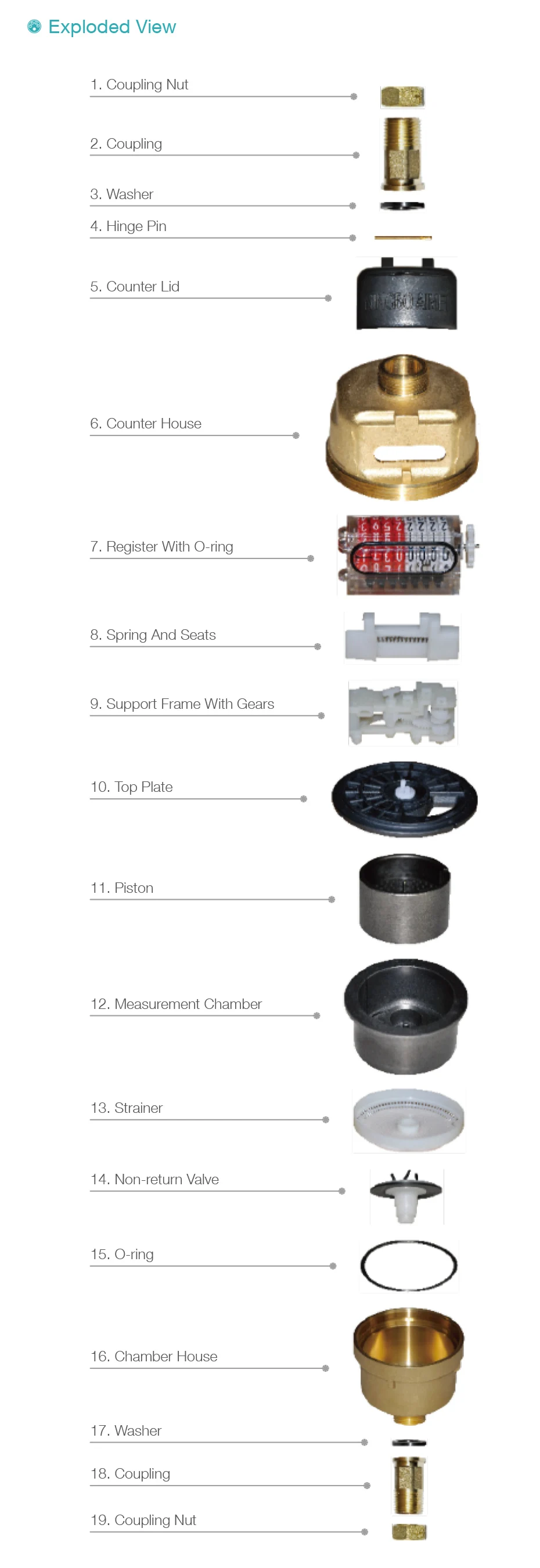

Exploded View
