High Speed Servo Spindleless Veneer Peeling Lathe With Clipper

Manufacturing & Processing Machinery Agriculture & Woodworking Machinery

FOB Price:US$ 15,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:veneer peeling lathe veneer peeling machine spindleless veneer lathe spindleless veneer machine veneer rotary lathe veneer rotary machine plywood machine plywood production line plywood production machines plywood veneer lathe

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Agriculture & Woodworking Machinery Trademark: Qianhui
Product Package: Plastic Film Specifications: 4ft
Place of Origin: Hebei Port: Tianjin

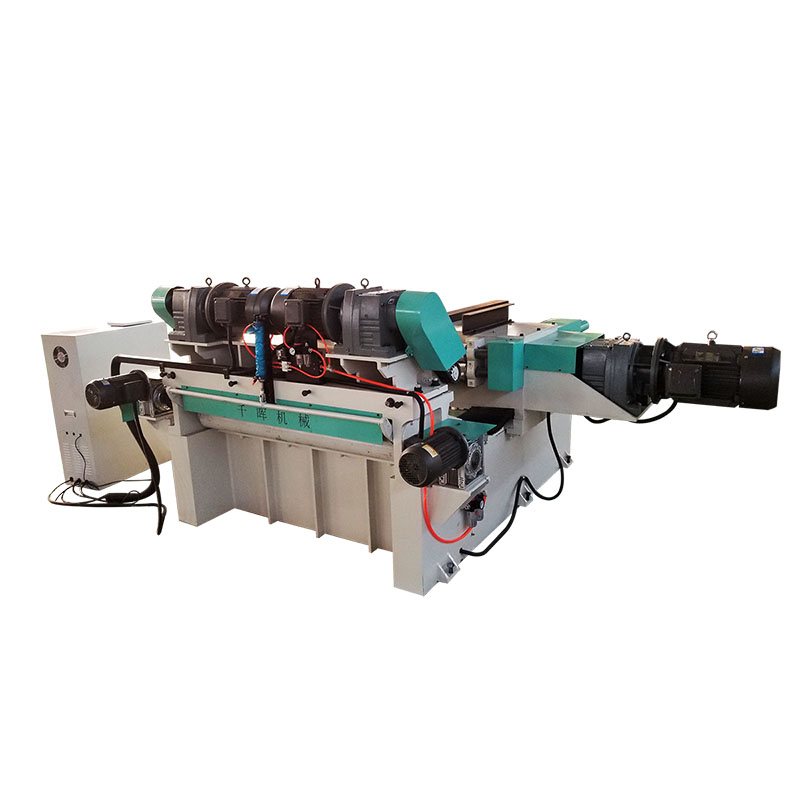

BX1400A-8 Spindleless Veneer Peeling Machine with Clipper

High Peeling Speed 40-150m/min

Heavy Duty Weight 7500kgs

Knife Table Made of Cast Steel,Much Stronger


If you want to get veneer with good thickness uniformity and smooth surface,this machine will be the right one !


Specifications of this machine :

Model No.

BX1400A-8 Perfect Type

Max Peeling Length

1300mm

Max Peeling Diameter

φ400mm

Left Log Core Diameter

Φ30mm

Peeling Thickness

0.8-5.0mm

Peeling Speed

40-100m/min

Material of Knife Table

Cast Steel

Lubricating Method

Automatic Lubricating

Feeding Method

Double Roller Feeding

Operating Method

Fully Automatic

Motor for Rollers

15kw 1set7.5kw 2set

Feeding Motor

11kw Servo Motor 1 Set

Clipper Motor

1.5kw 2 sets

Conveyor Motor

0.75kw 1set

Dimension

3900x2000x1450mm

Weight

7500kgs


Do not hesitate to contact us if you are interested!


Hebei Qianhui Machinery Co.,Ltd

Tel: +86 319 7586599

Fax: +86 319 7582869

Mobile/Whatsapp: +86 13323090486

Email: sales@qhplywoodmachine.com

We: www.qhplywoodmachine.com


Contact Name: Mrs Huixin Yu Contact Email: 89****0@qq.com
Contact Job Title: Operation Manager Contact Mob: 133***486
Contact Tel: +86 319 7586599 Contact Fax: +86 319 7582869
Address: Xingwan Industrial Area,Ren County Website: www.qhplywoodmachine.com
Located in Xingwan Industrial Area,Xingtai,Hebei Qianhui Machinery Co.,Ltd is a professional manufacturer of complete set of plywood machines and sawmill machines,we have been manufacturing veneer peeling lathe, hot press machine,sanding machine,multi rip saw etc plywood and sawmill machines for more than 20 years. Now we have built up an excellent team and gained rich industry experience. We research, develop and manufacture the plywood machines and constantly strive for excellence. Our boss ,Mr Jia Yunao,has drafted and applied for eleven Utility Model Patent and one Invention Patent. He pioneered the spindleless veneer lathe that can adjust the peeling knife angle automatically, which is well received by customers in South East Asia and India, and has gained much popularity. He is also the first to develop and produce the Fully Automatic Veneer Peeling Line, from log debarking, to veneer peeling and veneer stacking, no workers are required for operating the machines. Mass production for this automatic line has begin. To Stabilize sales and after sale service, Hebei Qianhui Machinery Co., Ltd has set up constant sales and service office in Guangdong Jiangmen, Guagnxi Nanning & Guigang, Hebei Wenan, Shandong Linyi, Jakarta Indonesia, New Delhi India, and Ho Chi Minh Vietnam. Customers in these areas please contact us any time when you need. Under the leadership of Mr Jia Yunao, all staff from Hebei Qianhui Machinery Co., Ltd will stick to the noble occupational ethics of "Be Responsible for Customers", and will continue serving all customers with excellent products and service. Hebei Qianhui Machinery Co., Ltd will be your reliable friend forever.
