Cold Press Machine for Plywood

Manufacturing & Processing Machinery Agriculture & Woodworking Machinery

FOB Price:US$ 15,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:cold press machine plywood cold press machine cold press machine for plywood plywood machine plywood making machine

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Agriculture & Woodworking Machinery Trademark: Qianhui
Product Package: In Nude Specifications: 4x8ft
Place of Origin: Hebei,China Port: Tianjin

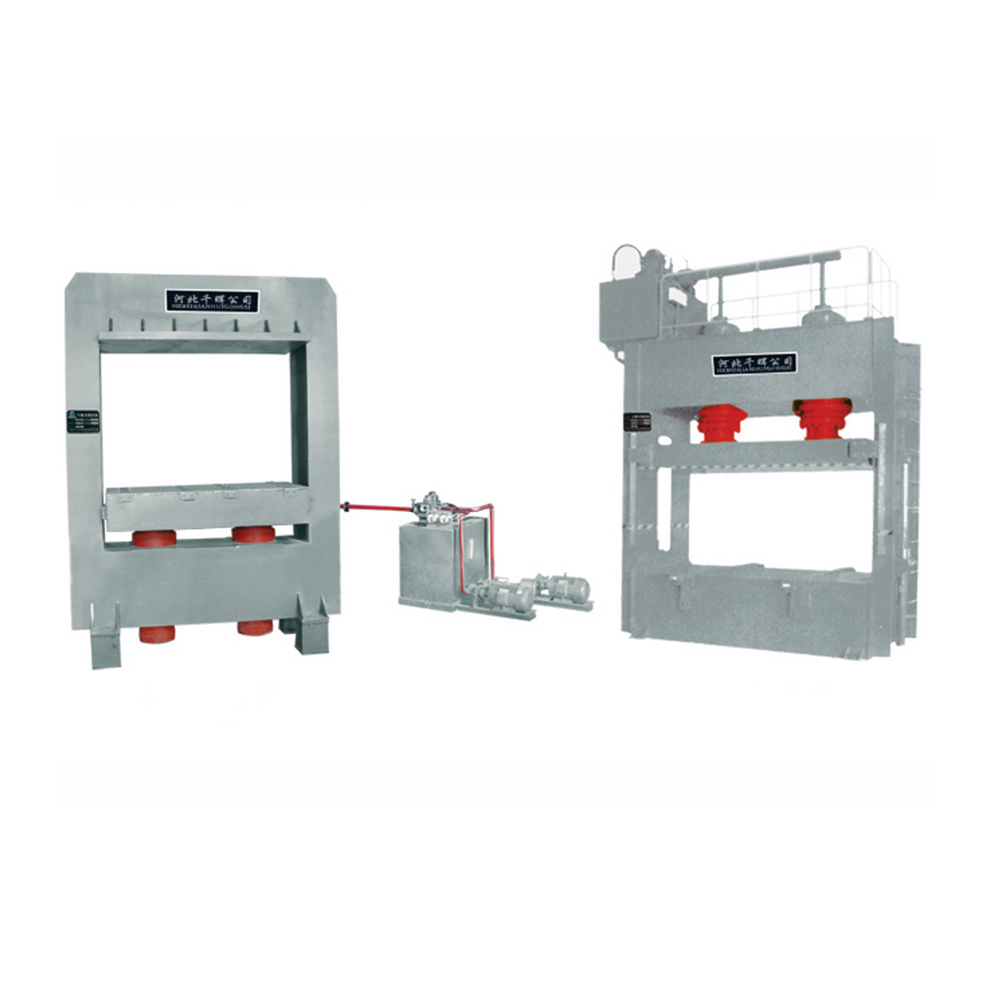

Plywood Cold Press Machine

Technical Specification:


Model No.

BY814x8/48-1B


Table Size

1370x2700 mm


Opening

1600 mm


Cylinder Diameter

φ320


Cylinder Stroke

900 mm


Cylinder No.

2 sets


Cylinder Origin

Wuxi,China


Cylinder Positin

At the bottom and goes up


Nominal Pressure

4800KN


Rated Hydraulic Pressure

25 Mpa


Hydraulic Pump Type

Aviation Pump


Motor Power

13kw


Dimension

3340x1400x3980 mm


Weight

13000 kg





Model No.

BY814x8/48-1T


Table Size

1370x2700 mm


Opening

1600 mm


Main Cylinder Diameter

φ320


Main Cylinder Stroke

900 mm


Main Cylinder No.

2 sets


Lift Cylinder Diameter

φ80


Lift Cylinder No.

2 sets


Cylinder Origin

Wuxi,China


Main Cylinder Position

On the top and goes down


Nominal Pressure

4800KN

Rated Hydraulic Pressure

25 Mpa

Hydraulic Pump Type

Aviation Pump

Motor Power

13kw

Dimension

3340x1400x4250 mm

Weight

14000 kg



Key Features:

1.Wuxi Cylinders,cylinders origin from Wuxi China,with good quality,more durable and need less maintenance

2.Aviation Pump is applied,flow efficiency higher and service life longer

3.Cylinder on the top and goes down when working,so you can use the automatic infeed and outfeed conveyor, working efficiency is higher .


Do not hesitate to contact us if you are interested !


Hebei Qianhui Machinery Co.,Ltd

Tel:+ 86 319 7586599

Fax:+ 86 319 7582869

Mobile/Whatsapp:+ 86 13323090486

Email: sales@qhplywoodmachine.com

Web: www.qhplywoodmachine.com

Contact Name: Mrs Huixin Yu Contact Email: 89****0@qq.com
Contact Job Title: Operation Manager Contact Mob: 133***486
Contact Tel: +86 319 7586599 Contact Fax: +86 319 7582869
Address: Xingwan Industrial Area,Ren County Website: www.qhplywoodmachine.com
Located in Xingwan Industrial Area,Xingtai,Hebei Qianhui Machinery Co.,Ltd is a professional manufacturer of complete set of plywood machines and sawmill machines,we have been manufacturing veneer peeling lathe, hot press machine,sanding machine,multi rip saw etc plywood and sawmill machines for more than 20 years. Now we have built up an excellent team and gained rich industry experience. We research, develop and manufacture the plywood machines and constantly strive for excellence. Our boss ,Mr Jia Yunao,has drafted and applied for eleven Utility Model Patent and one Invention Patent. He pioneered the spindleless veneer lathe that can adjust the peeling knife angle automatically, which is well received by customers in South East Asia and India, and has gained much popularity. He is also the first to develop and produce the Fully Automatic Veneer Peeling Line, from log debarking, to veneer peeling and veneer stacking, no workers are required for operating the machines. Mass production for this automatic line has begin. To Stabilize sales and after sale service, Hebei Qianhui Machinery Co., Ltd has set up constant sales and service office in Guangdong Jiangmen, Guagnxi Nanning & Guigang, Hebei Wenan, Shandong Linyi, Jakarta Indonesia, New Delhi India, and Ho Chi Minh Vietnam. Customers in these areas please contact us any time when you need. Under the leadership of Mr Jia Yunao, all staff from Hebei Qianhui Machinery Co., Ltd will stick to the noble occupational ethics of "Be Responsible for Customers", and will continue serving all customers with excellent products and service. Hebei Qianhui Machinery Co., Ltd will be your reliable friend forever.
