Factory introduction:
Our factory is the first wall material manufacturer in Hebei Province to achieve industrial, standardized and batch production of EPS modules for construction. The company was founded in 2014, covering a total area of 71720 square meters, with 26 energy-saving EPS module production lines, an annual output of 1000000 cubic meters of EPS modules for construction, 1 chief engineer and 8 full-time engineers and technicians.

Product introduction:

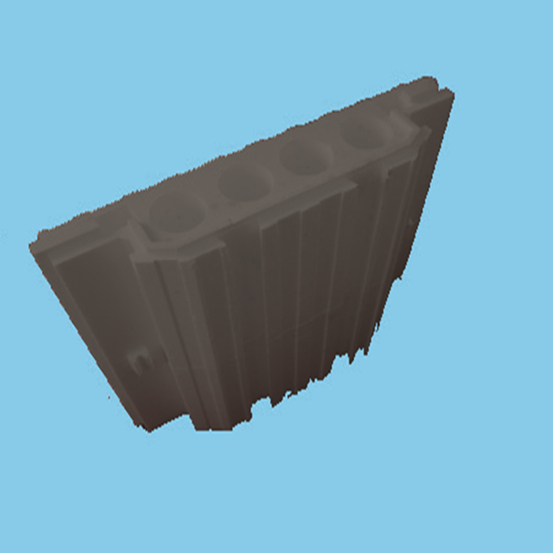

Introduction to the energy saving system of EPS module cast-in-place concrete composite wall structure construction: the EPS(expandable polystyrene) cavity module produced by the factory is combined into a cavity module wall by building block staggered joint, in which steel bars are set up and concrete is poured; the inner and outer surfaces are plastered with granule paste to protect alkali-resistant fiberglass mesh cloth to form a surface protective layer, thus forming a concrete composite wall with internal and external thermal insulation.

Product usage:
1. Build multi-storey and low-rise civil buildings with strong environmental protection, energy saving and disaster resistance (earthquake, wind, fire, flood, snow, etc.).
2. Large freezer.
3. No heating agricultural machinery depot and agricultural and animal husbandry greenhouse.
4. Suitable for cold, hot or earthquake-prone areas.

Product advantages:
1. The structure is safe and reliable. The structure has strong integrity and good anti-seismic effect.
2. The thermal insulation material is durable and does not fall off. During the construction, the EPS module is assembled first, and then concrete is poured to form a composite wall to achieve the same life of the thermal insulation and the structure, which will not occur the problem that the thermal insulation materials often fall off in 15 years in conventional buildings, and achieve the goal of the integration of thermal insulation and structure.
3. Suitable for a variety of architectural forms. EPS module has the advantages of convenient cutting and flexible splicing, and can make all kinds of architectural shapes, which are suitable for all kinds of low-rise and high-rise buildings with various plane layouts and rich facade effects.
4. The effect of building energy saving is good. EPS module density can reach 30kg/m 3, thermal conductivity less than 0.033 watts / square meter, equivalent to the thermal insulation effect of 3.2m thick brick wall, effectively reduce carbon emissions throughout the life cycle of the building, is a veritable low-carbon building.
5. The construction speed is fast. The construction is simple, and the construction process is like building blocks, saving time, labor and labor. A 100 square meter building can be built in 15 days, and the technical requirements for the construction personnel are not high.
6. The construction cost is low. It has the advantages of less labor, less loss of building materials and so on.

Technical advantages:
1. The cavity module has a variety of shapes, in accordance with the building modulus 3M, is surrounded by a plug-in groove, and the inner and outer surfaces are uniformly distributed dovetail grooves, which have the advantages of uniform fusion, high compression strength, stable technical index and accurate geometric size (maximum negative error 0.2mm).
2.The cavity module is organically combined with the building insulation board to realize the integration of heat preservation and structure.
3.Build low-energy and disaster-resistant houses in a standardized, factory-oriented, equipped, refined and comfortable manner.It provides reliable, economical and applicable construction technology for the construction of low-rise and multi-storey low-energy disaster-resistant buildings and civil buildings (including "passive" low-energy buildings),  large-scale cold storage, agricultural greenhouse and so on in areas with earthquake intensity greater than 8 degrees.
4.Eliminate backward technology and production capacity, completely replace clay bricks and block building materials, and abandon the traditional block construction technology. The powerful combination of the cavity module and the concrete shear wall structure reduces the construction cost by 15%, increases the construction speed by 50%, and increases the housing area by 8%.

Technical data:

Engineering cases in China:





Testing:



Production workshop:
