Aluminum Corrugated composite panel
Construction & Decoration Outer wall
MOQ:1000 Square Meter(s)
Payment Method : L/C T/T Others
Keywords:Aluminum Composite Panels corrugated Curtain Walls
| Product Category: | Construction & Decoration > Outer wall | Trademark: | OEM Brand |
| Product Package: | wooden package | Specifications: | 4mm,6mm |
| Place of Origin: | China | Port: | Qingdao |
HyGROW aluminum corrugated composite panel composite with aluminum corrugated core and one or two layers of aluminum alloy 3000 or 5000 series in large variety of colors, such as PVDF solid/metallic colors, anozided finish, or decorative film laminated.
The aluminum corrugarted core is made of pre-oxidized aluminum alloy sheet, which is usually in the form of warter ripple or trapezoid in order to increase the bonding area between the core material and the layers of aluminum.Can improve the bonding strength,with a flat tensile strength of 2Mpa.
It is an excellent material for large-scale interior celling project and can be used as hook-up installation system and short vertical edges triangular keel clamping system.

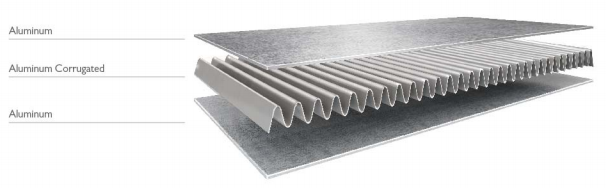

Structure
Feature
All metal Material Honeycomb core Smooth surface High rigidity
Sound Insulation High Flexible Easy to procee Recyclable

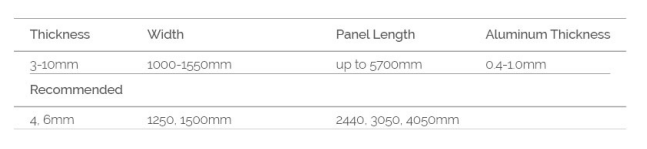

Aluminum Corrugated Specifications & Dimensions

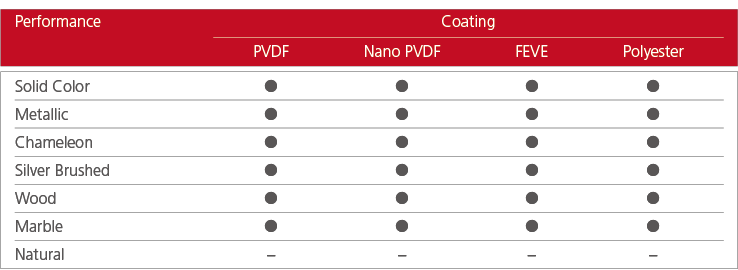

Coating and surface performance
