Xuzhou Unique Construction Machinery Co., Ltd

Business Type:Trade service

Main Products: Truck Cranes

view on mobile

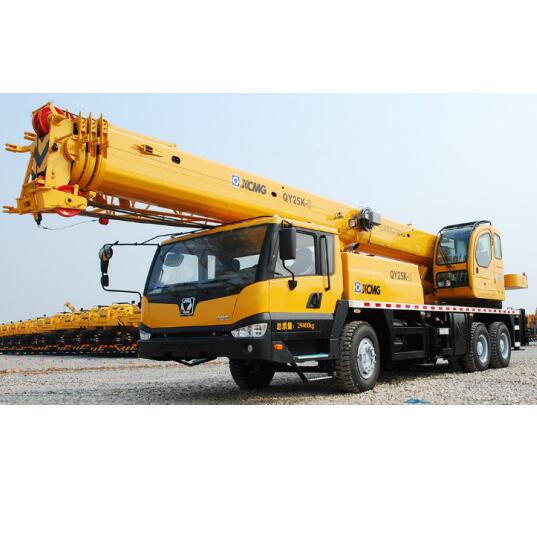

truck crane

Auto,Parts & Accessories Special Vehicles

FOB Price:US$ 100,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T

Keywords:Truck Cranes xcmg truck crane

Add to Favorites

Product Category: Auto,Parts & Accessories > Special Vehicles Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai


Dimension

Unit

QY25K-II

Overall length

mm

12650

Overall width

mm

2500

Overall height

mm

3380

Weight

Total weight in travel

kg

29400

Front axle load

kg

6200

Rear axle load

kg

23200

Power

Engine model


SC8DK280Q3 / WD615.329(domestic III)

Engine rated power

kW/(r/min)

206/2200   213/2200

Engine rated torque

N.m/(r/min)

1112/1400  1160/1400

Travel

Max. travel speed

km/h

75

Min. turning diameter

m

21.5

Min. ground clearance

mm

275

Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

30

Fuel consumption for 100km

L

37

Main performance

Max. rated total lifting capacity

t

25

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.065

Max. lifting torque

kN.m

1010

Base boom

m

10.7

Fully extended boom

m

34.19

Fully extended boom+jib

m

42.15

Longitudinal outrigger span

m

5.14

Lateral outrigger span

m

6

Working speed

Boom luffing time

s

75

Boom full extension time

s

100

Max. swing speed

r/min

2.5

Max. speed of main winch (single rope)

m/min

120

Max. speed of aux. winch (single rope)

m/min

120


Contact Name: Mr justin Guo Contact Email: SA****S@XZUNIQUE.COM
Contact Job Title: Operation Manager Contact Mob: 151***779
Contact Tel: 0516-80110222 Contact Fax:
Address: 云龙区宝龙广场 Website: http://www.craneunique.com

Xuzhou Unique Construction Machinery Co., Ltd is a professional construction machinery exporter, since our company set up, depending on the advantage of Xuzhou which is the largest production base of construction machinery is China, we continually introduce Chinese excellent construction machinery enterprises and their products to the fast-growing domestic and international Market, not only make more and more international and Chinese clients know and approbate our product, but also gradually build a friendship bridge of Chinese and foreign construction machinery trade. Putting our customers first, reliable quality build future, as our always insist service tenet, our professional sales and service staff all have principle that our value comes from benefit our clients, under our many years unremitting efforts, we had already built the sales and service net over domestic and some area of international. During nearly 10 years international marketing, we won the good fame and reputation from the reliable quality and excellent after-sales service, exports volume increase lasting, our product already enter the 75 countries , the market like middle east ,Africa ,Australia ,middle Asia, south Asia, and Latin America, etc. We will scrupulously abideby our Company's management concept Honesty and Trust, win-win, we sincerelyhope can cooperate with you, develop together and build a good future.
