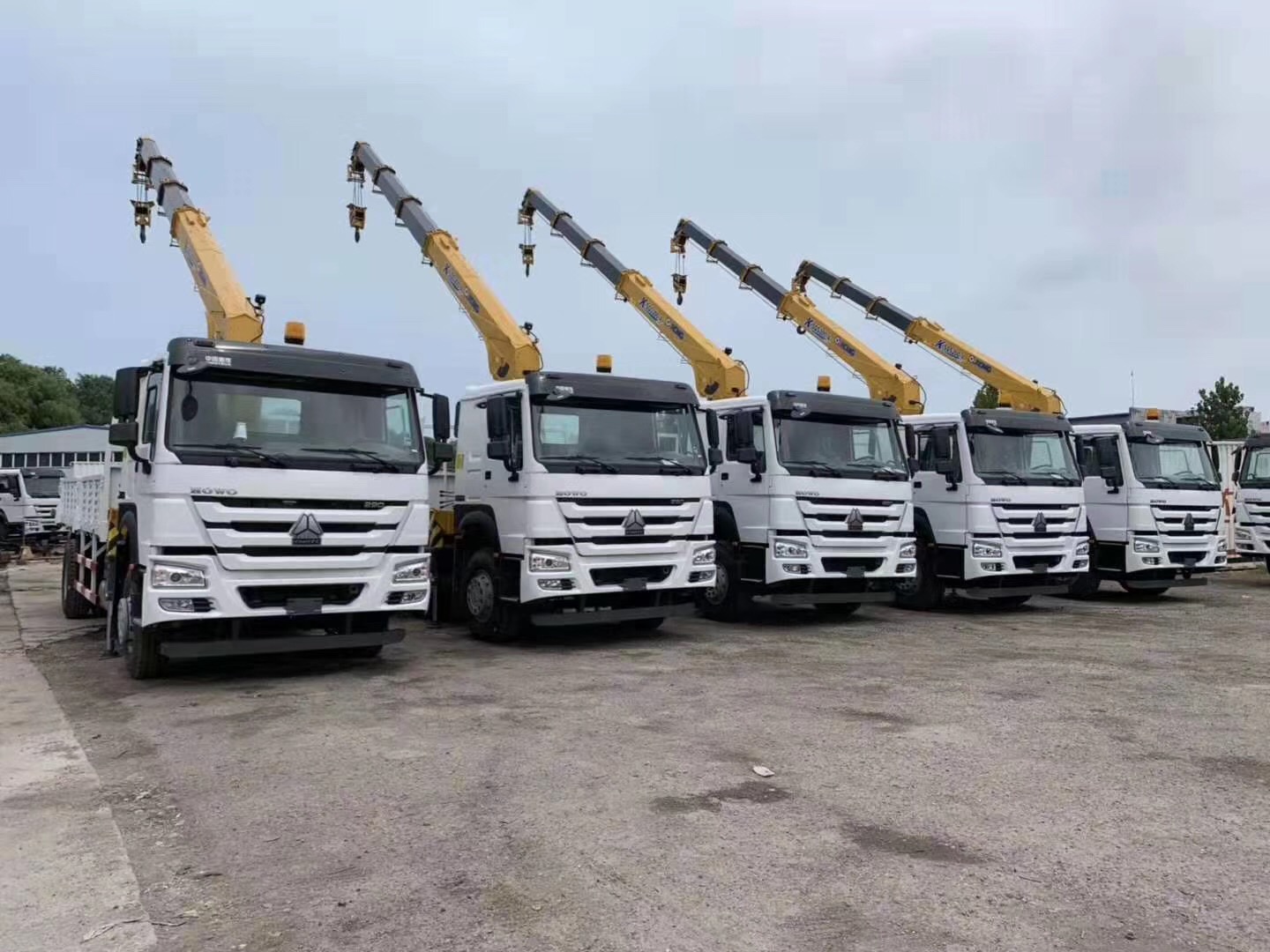

LHD/RHD SINOTRUK 4X2 6X4 truck mounted crane

Auto,Parts & Accessories Special Vehicles

FOB Price:US$ 22,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:truck with crane  truck mounted crane

Add to Favorites

Product Category: Auto,Parts & Accessories > Special Vehicles Trademark: CSC
Product Package: nude. waxed before shipping Specifications: LHD/RHD SINOTRUK HOWO 4X2 5t 10t truck with crane
Place of Origin: China Port: Shanghai

Specifications for HOWO cargo truck with 5t crane

Cabin

Driving type 4x2

2080 Standard cab, with three seats , one sleeper,with A/C. right hand driven. 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

87x2500x3700

Wheel base  (mm)

4700

Wheel track  (front/rear) (mm)

1886/1845

Approach/Departure angle(°)

27/20

Weight in KGS

Tare Weight

                          7000

Loading Capacity

                          8000

Front axles loading capacity

1x4000

Rear axles loading capacity

                         1x11000

Max. driving speedkm/h

90

Engine

Brand

YUCHAI

Model

                   YC4E160-20

Type

4-stroke direct injection ,  4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse PowerHP)

160 HP

Emission standard

Euro

Gearbox

DC6J65TC, 6 forwards & 1 reverse

Clutch

Diaphragm spring clutch

Steering Gear

Power steering

Fuel tank (L)

230L

Tire

9.00R20 All radial ires with one spare, 7 pieces

Cargo box

5200mm×2300mm×600mm

Outrigger

One set on the front, one set on the back , hydraulic type.

Crane specifications



Brand : XCMG

Type: Telescopic

Max lift capacity:  5,000 kg

Max lifting height: 12.5m

Oil tank capacity: 90L

Installation space: 900mm

Rotation angle: 360°

Max boom length: 11m

Basic boom length: 3.7m

Weight: 2215kg

Dimension: 3830*2280*2386mm

4 section arm

Have one seat for one person


Contact Name: Mr Tony Tian Contact Email: in****o@cs-vehicle.com
Contact Job Title: Sales Manager Contact Mob: 138***640
Contact Tel: +86-27-59323486 Contact Fax: +86-27-59323485
Address: 东西湖区金银湖路20号欧亚大厦1106-1108 Website: http://www.cs-vehicle.com

     Hubei Chusheng Vehicle Co., Ltd, was established in 2002 and is located in Suizhou city, Hubei province, in the central part of China. Its distance to Wuhan is 186 kilometers and to SanXia (The Three Gorges) is 330 kilometers,and the traffic is very convenient. Its total assets exceeds $320 million. In addition, our site has an area of 690,000 square meters and it has a staff of more than 6000.

      Our company is a professional manufacturer producing all kinds of trucks and trailers, mainly including LPG Tank Trucks, Fecal & Sewage Suction Trucks, Garbage Trucks, Fuel Tanks, High-Altitude Operation Trucks, Truck with Crane, Dump Trucks, Van Trucks, Refrigerator Trucks and LPG and Fuel Tank Semi-Trailers, Bulk Cement Semi Trailers, Pulling Trailers and so on. Meanwhile Special Equipment Spare Parts as well. In addition, Chusheng Vehicle has many international clients overseas, like in East Africa (including Tanzania, Kenya, Uganda and Malawi), West Africa (including Nigeria, Ghana and Senegal), South America (including Peru, Bolivia, and Chile), and South Asia (including Philippines, Singapore, and Vietnam) etc. Chusheng Vehicle is strong technically, we under go 100 inspection and can also boast of advanced international equipment, stable quality and a proven equipment process. What's more, it has proudly passed the ISO9001-2000, ISO14001 and the 3C(China Compulsory Certification), "Quality Management System Certification", "Environment System Certification", "Manufacture License of Special Equipment for People's Republic of China", "The Registration Form for Foreign Trade Manager" "Hi-tech Enterprice Certification", "Famous Trademark of Hubei Province". Our survival is based on the reliant quality, excellent service and reasonable price. we warmly welcome customers at home and abroad to establish cooperation based on mutual benefits.

     We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
