Wuhan G-Young Industry & Trade Co., Ltd

Business Type:Manufacturer

Main Products: Stick Noodle Production Line Fried Instant Noodle Production Line Non-Fried Instant Noodle Production Line Manual Noodle Production Line Fresh Noodle Production Line Vermicelli production line Spaghetti production line Macaroni pasta production line

view on mobile

Convenient Operation Fast Food 70G Industrial Maggie Noodle Making Line

Manufacturing & Processing Machinery Food & Beverage Machinery

FOB Price:US$ 78,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T Western Union

Keywords:Maggie Instant noodle machine Noodles noodle equipment noodle producing process  70G maggie instant noodle Rice Noodle Flour frying noodle machine frying indomie maggie machine Yumyumy instant noodle machine

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Food & Beverage Machinery Trademark: G-Young
Product Package: Standard Export Package/Customized. Specifications: Set
Place of Origin: Wuhan,China Port: Tianjin/Wuhan/Shanghai


  Roll width:  350mm                                                                                  capacity: 1.5T/8h

Serial NO.

Product name

Model

quantity

Remark

1

alkali mixing and measuring

YSH10

1 unit

Power:0.75kw, volume:120L/unit,

the surface touched with the water is SS304

2

double- speed flour mixing machine

HMJ200

    1 unit

Motor power 9/11kw,200kg/batch,door opening by manual, the surface touched with flour is SS304

3

Disk-type feeder

PS200

    1 unit

Motor:4kw,tray size:φ1800mm×410mm the surface touched with flour is SS304

4

Compound- continuous rolling machine

MT7-50

1 unit

Roll width:350mm,motor power:5.5kw+5.5kw(frequency conversion timing),7 pairs of steel roller-cold-hard alloy, frame (two sides)is SS201,the Dia. of the roller is:φ180mm×2,φ240mm×2,φ180  mm×2,φ162mm×1

5

belt type cabinet

SX6

    2 units

the surface touched with flour is SS304,aluminum glass door

Specification:750*850*1400mm,six roll of noodle can be put in

6

Dehydration sterilization machine

TS800

     1 unit

Main driven 1.5kw(frequency conversion timing),the length of body is 16 meters,surface touching food is SS 304,

Heating power~20kw,

fan0.55kw×6

7

electrical control system

BPT-1

1 set

operation adopts frequency conversion timing

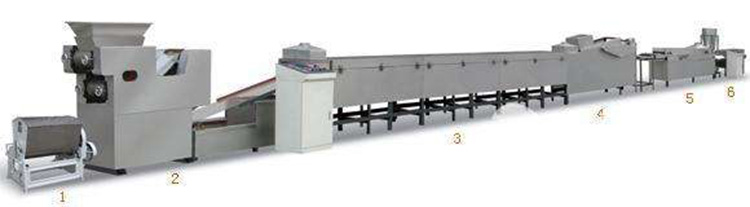

Fried instant noodle production line, the main process of the equipment using frequency control, photoelectric tracking, PLC program Control, to achieve a full range of synchronous coordination control, cut the number of knives, block weight can be reduced in the non-stop dynamic Whole, frying temperature control, and noodles using elliptical paddle two-axis two-speed technology to add more water, materials and moisture Combined with more uniform; curing machine using W-type double pot technology, the basic guarantee of the dough aging;9 pairs of cold alloy roll; noodles steamed after the use of immersion flavor technology; equipment and food contact surface are used Stainless steel and non-toxic materials, in line with food hygiene standards.









The following is my company's superior products, details please click.



Certification


Contact Name: Mr Yong Liu Contact Email: gy****g@gyoungchina.com
Contact Job Title: CEO & Director Contact Mob: 138***530
Contact Tel: 0086-27-82652077 Contact Fax: 0086-27-82625775
Address: Room 1607/1608, No. 88,Gaoxiong Road, Jiang'an District, Wuhan, China Website: www.gy-noodlemachine.com

WUHAN G-YOUNG INDUSTRY&TRADE CO., LTD is a domestic professional manufacturer and export trader which in researching, developing, producing all kinds of instant noodle machine, fine dried noodles machine and so on. Our main products is fried instant noodle production line, non-fried instant noodle production line, Low- Temperature Hanging-Type Drying Noodle Production Line, Low- Temperature Chain Cable-Style Noodle Production Line, fresh noodles production line and other kinds of noodle production equipment. It located in Wuhan, the largest city in the middle of China, and an important industrial base of China, which has long history, advantaged natural resources, convenient Transportation and has the reputation as the thoroughfare leading to nine provinces. And the production base is located in the central city of Zhengzhou which enjoys the reputation of "noodle's city". It is just because of the perfect combination with the headquarter in terms of technology, transportation and talents that created the sales' miracle of the company. Our products are sold well throughout the 20 provinces, the city, the autonomous region in China, as Southeast Asia, West Africa, and the Middle East, the European Union, and other countries and regions. The quality of the products and services has been consistent high praised by domestic and foreign customers. We sincerely hope to cooperate with more customers, hand in hand together, and try our best to make the company become a comprehensive value-added ability and composite competitive global manufacturers and traders.
