ADSS 8-144cores all dielectric self-supporting aerial single mode fiber cable,G652D

Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 0.50 / Meter(s)

MOQ:10000 Meter(s)

Payment Method : L/C T/T D/P Western Union

Keywords:ADSS self-supporting fiber cable single mode  aerial

Add to Favorites

Product Category: Electrical & Power Energy > Wires,Cables & Accessories Trademark:
Product Package: Specifications:
Place of Origin: China Port: Shanghai

All Dielectric Self-supporting(ADSS) fiber optic cable


ADSS Cable (All Dielectric Self-supporting Aerial Cable) is loose tube stranded. Fibers, 250um, G6520D ,are positioned into loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fibre Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin polyethylene (PE) inner sheath. After stranded layers of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.



Max allowable

working tension

(KN)

Break

strength

(KN)

Average working

tension

(N)

Weight

(Kg/km)

PE sheath

Weight

(Kg/km)

AT sheath

Diameter

(mm)

Opearation

temperature

(°c)

2.5

6.25

1.56

119

126

12.0



















-40~+60

3.5

8.75

2.19

121

129

12.2

4.5

11.25

2.81

124

132

12.3

6.0

15.0

3.75

128

136

12.5

7.0

17.5

4.38

131

139

12.7

8.0

20.0

5.0

134

142

12.8

9.0

22.5

5.63

136

144

12.0

10.0

25.0

6.25

138

147

13.0

11.0

27.5

6.88

142

150

13.0

12.0

30.0

7.5

144

153

13.2

14.0

35

8.75

148

157

13.5

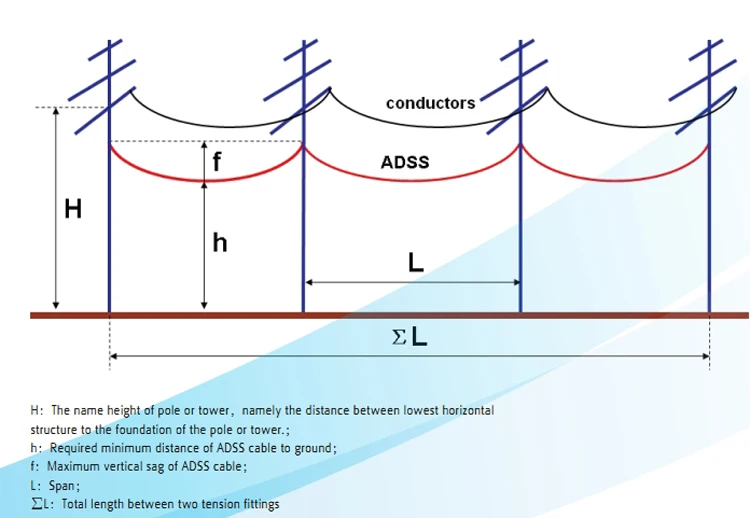

                         Installation                 Diagram

                  (Usually matched with OPGW Composite Overhead Ground Wire

↓                      ↓                    ↓



            The      cable        can       be       loaded       from       span      100m-1000m.

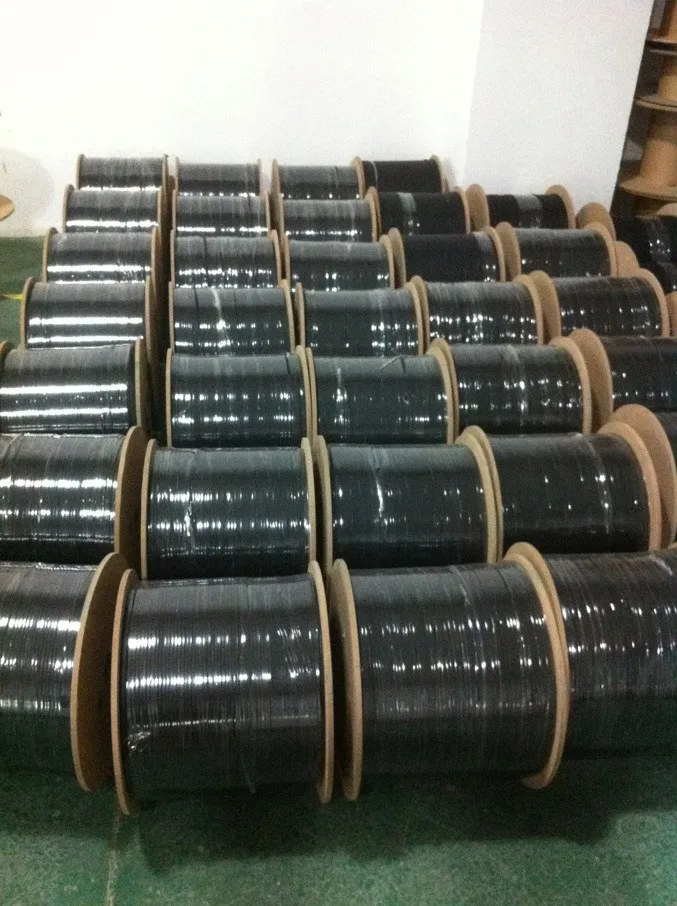

Packaging & Shipping
