Cable fiber FTTx 4 fiber, Steel wire with extra elements (Steel wire 1.0 mm), G.652D, LSZH
Electrical & Power Energy Wires,Cables & Accessories
MOQ:100000 Meter(s)
Payment Method : L/C T/T D/P Others
Keywords:communication cables drop cable FTTx FTTH
| Product Category: | Electrical & Power Energy > Wires,Cables & Accessories | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
1-4cores FTTX self-supporting Drop Cable with steel wire LSZH sheath
Cable fiber FTTx 4 fiber, Steel wire with extra elements (Steel wire 1.0 mm), G.652D, LSZH, GJYXCH-4
Product Details:
| Place of Origin: | China |
| Brand Name: | Changguang |
| Certification: | ISO 9001:2008 |
| Model Number: | GJYXFCH/GJYXCH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kilometer |
|---|---|
| Price: | 62 usd/km |

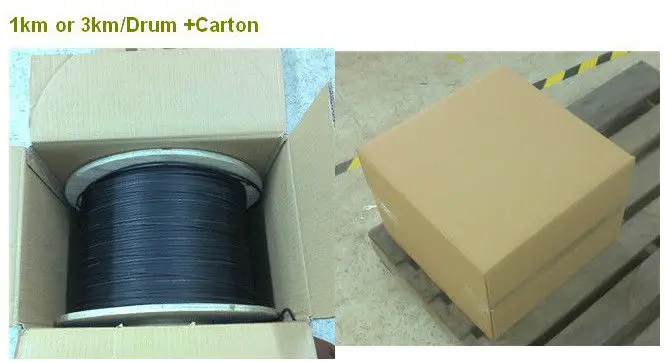

| Packaging Details: | Wooden or iron-wooden drum or carton, 2000-6000m/drum or as customized |
| Delivery Time: | Depends on quantity, usually 5-10 days after deposit received |
| Payment Terms: | T/T, L/C,Escrow, Western Union, ect. |
| Supply Ability: | 20000 kilometers/month |
| Product Name: | FTTH Outdoor 1/2/4 Cores G652D/G657A1/2 Single Mode Self-supporting Drop Cable GJYXFCH | Installation: | FTTH/x Indoor/outdoor Self Supporting |
|---|---|---|---|
| Application: | Indoor/outdoor Aerial Cabling System | Fiber Type: | Single Mode/G.652D/G.655/G.657A |
| Cable Type: | Self Supporting Drop Cable | Jacket Material: | LSZH/PE |
| Jacket Color: | Black Or As Requested | Fiber Number: | 1/2/4 Cores |
| OEM: | Acceptable | Message Wire: | Steel Wire |
| Strength Member: | FRP Or Steel Wire |
| Product name | FTTH outdoor 1/2/4/8/12 cores G652D/G657A1/2 single mode self-supporting drop cable GJYXFCH |

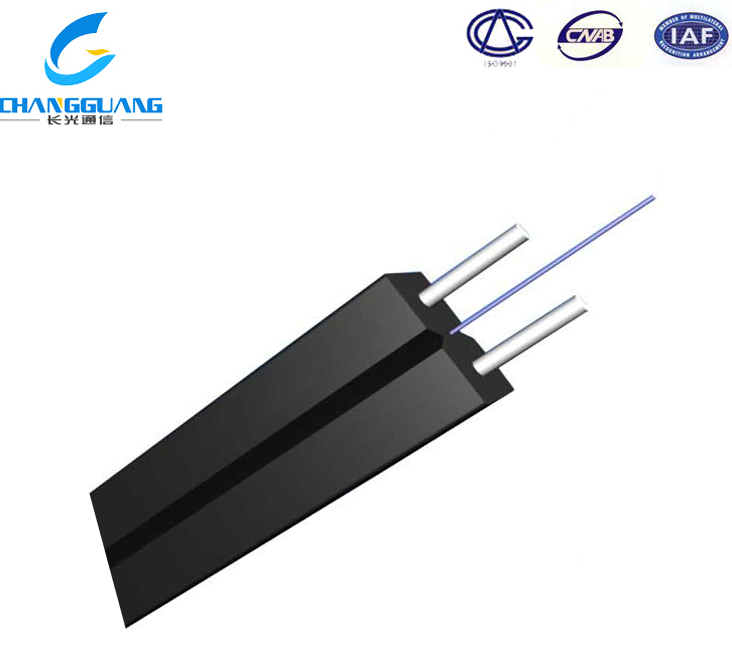

| Introduction | The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath. |
| Characteristics | 1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property 2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber 3. Single steel wire as the additional strength member ensures good performance of tensile strength 4. Simplex structure,light weight and high practicability 5. Novel flute design, easily strip and splice,simplify the installation and maintenance 6. Low smoke,zero halogen and flame retardant sheath |
| Application | 1. Indoor riser level and plenum level cable distribution 2. Interconnect between instruments, communication equipments |
| Standards | Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794,ETC. |
Transport/Storage/Operating Temperature: -20℃ - +60℃
Installation Temperature: -5℃ - +50℃
| Cable Code | Fiber Count | Cable Size mm | Cable Weight (Ref) kg/km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/100mm | Bending Radius Dynamic/Static mm |
| GJYXFCH-1Xn | 1 | (2.0±0.1)x(5.2±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXFCH-2Xn | 2 | (2.0±0.1)x(5.2±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXFCH-1Xn | 1 | (2.0±0.1)x(5.6±0.1) | 21 | 300/600 | 1000/2200 | 15/30 |
| GJYXFCH-4Xn | 4(Ribbon) | (2.0±0.2)x(6.0±0.2) | 22 | 300/600 | 1000/2200 | 15/30 |
Technical Parameters:
In a communications network, a drop is the portion of a device directly connected to the internal station facilities, such as
toward a telephone switchboard, toward a switching center, or toward a telephone exchange. A drop can also be a wire
or cable from a pole or cable terminus to a building, in which case it may be referred to as a downlead. These cables
may be reinforced to withstand the tension (due to gravity and weather) of an aerial drop (i.e., hanging in air), as
in "messenger" type, which is reinforced with a steel messenger wire along its length.
PACKING AND SHIPPING
| Contact Name: | Miss Mandy Zheng | Contact Email: | Ma****y@cg-js.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 156***709 |
| Contact Tel: | Contact Fax: | ||
| Address: | B02, west District of Taiwanese Industrial Park, Economic And Technological Development ZONE, Suqian, Jiangsu,China | Website: | www.changguanggroup.com |

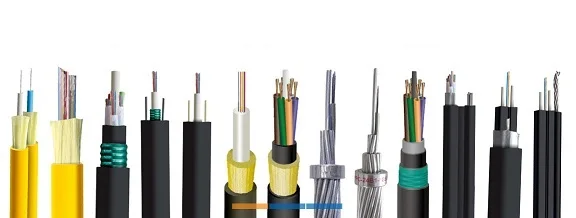

Changguang (China) Co., Ltd . is the optical communication,Internet ,new material,electronic information as the core of investment holding group .There are three wholly owned subsidiaries in Jiangsu, Shanghai,Shenzhen. The Group has production facilities and marketing center in Pakistan, Indonesia, Algeria, France and other regions and countries, the employees more than 1,000 all over world. Changguang Communication Technology Jiangsu Co., Ltd. is a nation-level key high-tech enterprise.The company is delicated to the development of optical communication technology and product development, production, sales and service. We have advanced R & D, production and testing equipment. Our main products are indoor and outdoor fi ber optic cables, power cable, special cable, fiber optic submarine cable and varieties of accessories. They are widely used in network communication construction, various industries and areas of national power, new energy generation, social security, transportation, oil, FTTH, sensor technology,etc. . Looking at the global market, products developed and produced by us are exported to Southeast Asia, Central Asia, Latin America, Africa and many other countries and regions. Meanwhile, we have developed strategic partnerships more than a dozen leading global optical communications companies. Our company establish a strategic partnership with domestic research and development of optical communication technology leading institutions of Shanghai University Fibre Physics Institute. We are the Implementation Platform of the Institute for Scientifi c and technological achievements experimental base forwards. Company has ISO90001: 2008 quality system certifi cation, the international 3C certifi cation, Gentile certifi cation, and is applying for UL certifi cation, CE certifi cation. Has japan imported advanced production equipment and a full set of optical communications test equipment, providing our customers with reliable product quality assurance.
