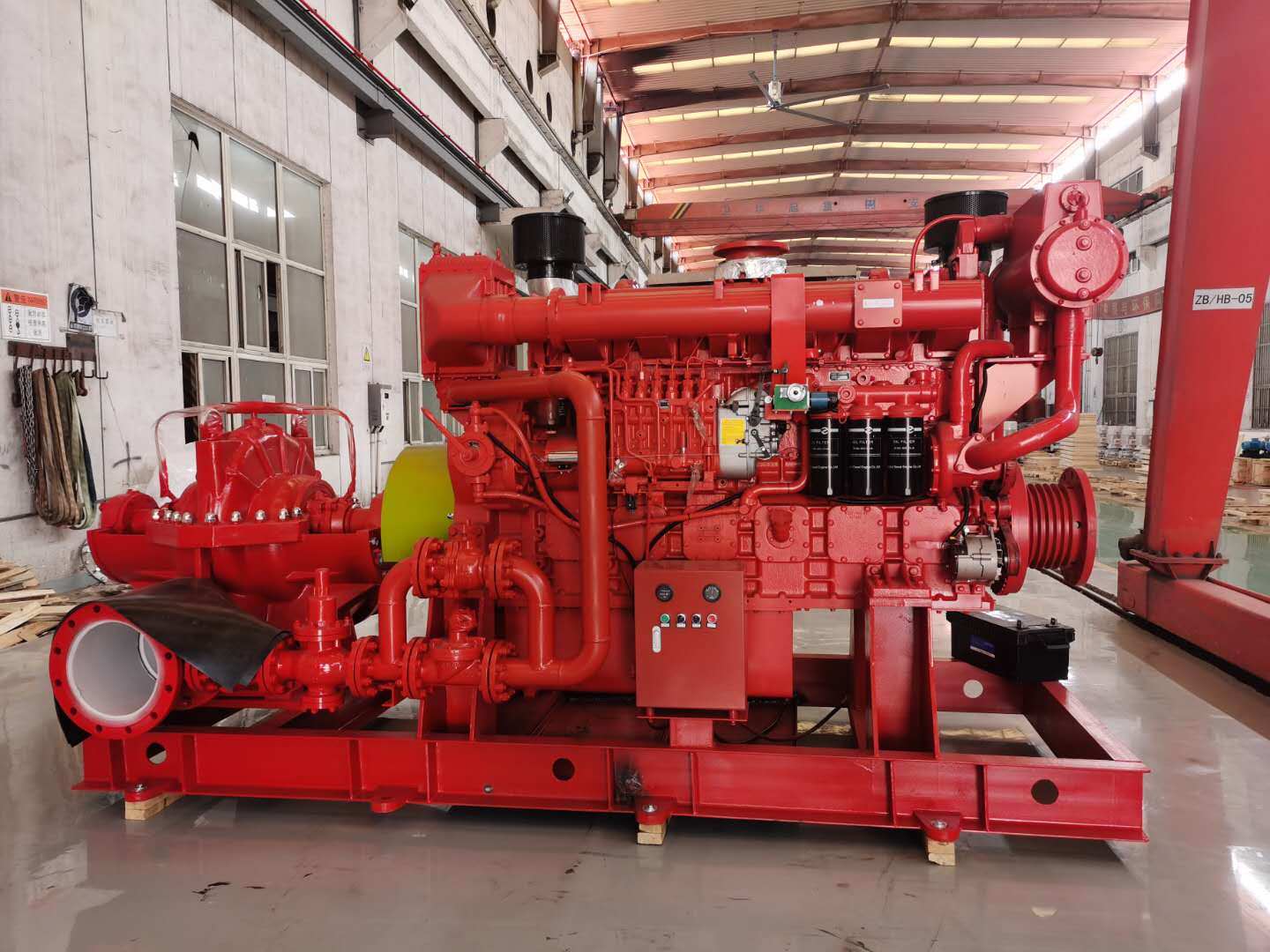

Horizontal Split Casing Diesel Fire Pump
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:Double suction High efficiency Centrifugal Pump Dewatering Pump Sea Water Pump Fire Pump Water Pump Split Case Pump Horizontal Pump
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | EAST PUMP |
| Product Package: | Export wooden | Specifications: | |
| Place of Origin: | Nantong | Port: | shanghai |
1、Operating conditions and range:
| Model | DFSS |
| DN(flange) | 80~800mm |
| Capacity | 66~37000m3/h, with 2950RPM, 1450RPM, 980RPM |
| Head | 5~180m |
| Permitting working pressure | 2.5MPa |
| Medium Temperature | Normal≤80°C, cooling structure<105°C, equal to or higher than 105°C take special orders. |
| Material | Cast iron-HT200, HT250; SS304, SS316, SS316L, Duplex SS |
| Partical | 80mg/l |
| Motor | 380V, 415V, 660V; IP54, IP55; 50Hz, 60Hz |
| Shaft | Cast steel, 2Cr13 |
| Casing and cover | Cast iron, Nudular cast iron, Cast steel |
| Impeller | Cast iron, Bronze, stainless steel |
| Mouth seal | Cast iron, nudular cast iron, bronze, stianless steel. |
| Shaft seal | Mechanical seal or packing seal |
| Bearing | Closed grease lubricated roller bearing(SKF, NTN) NSK thrust and roll bearing |
| Flange standard | ASME, DIN, GB |
| Seal by | Burgmann mechanical seal or gland packing |
| Quality control system | ISO9001: 2000, ISO14001, OHSAS18001, ISO2548, GB/T3216, GB/T5657, GB19762-2005 |
| Main Application | The product are applied in power plants, water supply, municipal, construction, fire fighting, industrial and mining enterprises and other industries for the transportation of water, of similar physical and chemical properties of water and other media. |
2、Characteristic of Structure:

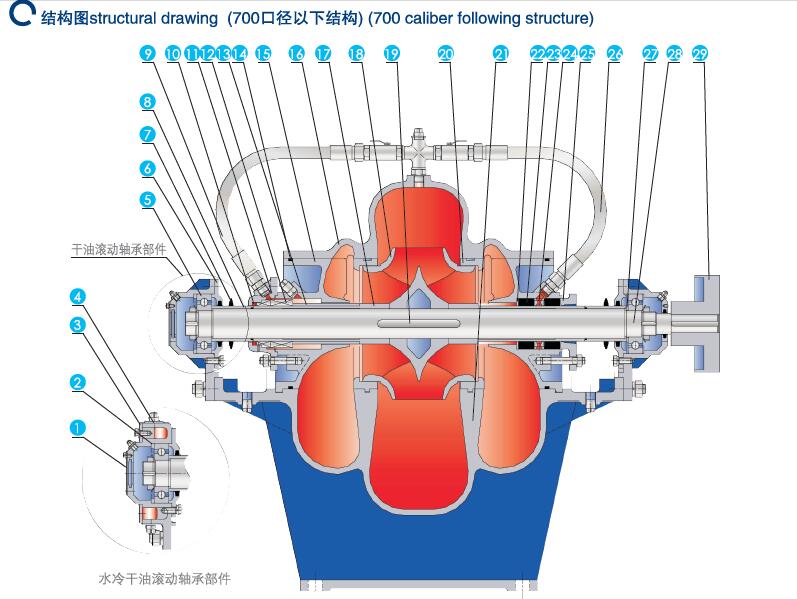

DFSS double-suction pump is a new product with unique features as an outcome of the independent development and design of the Company. See the following diagram:
3、Manufacture Display

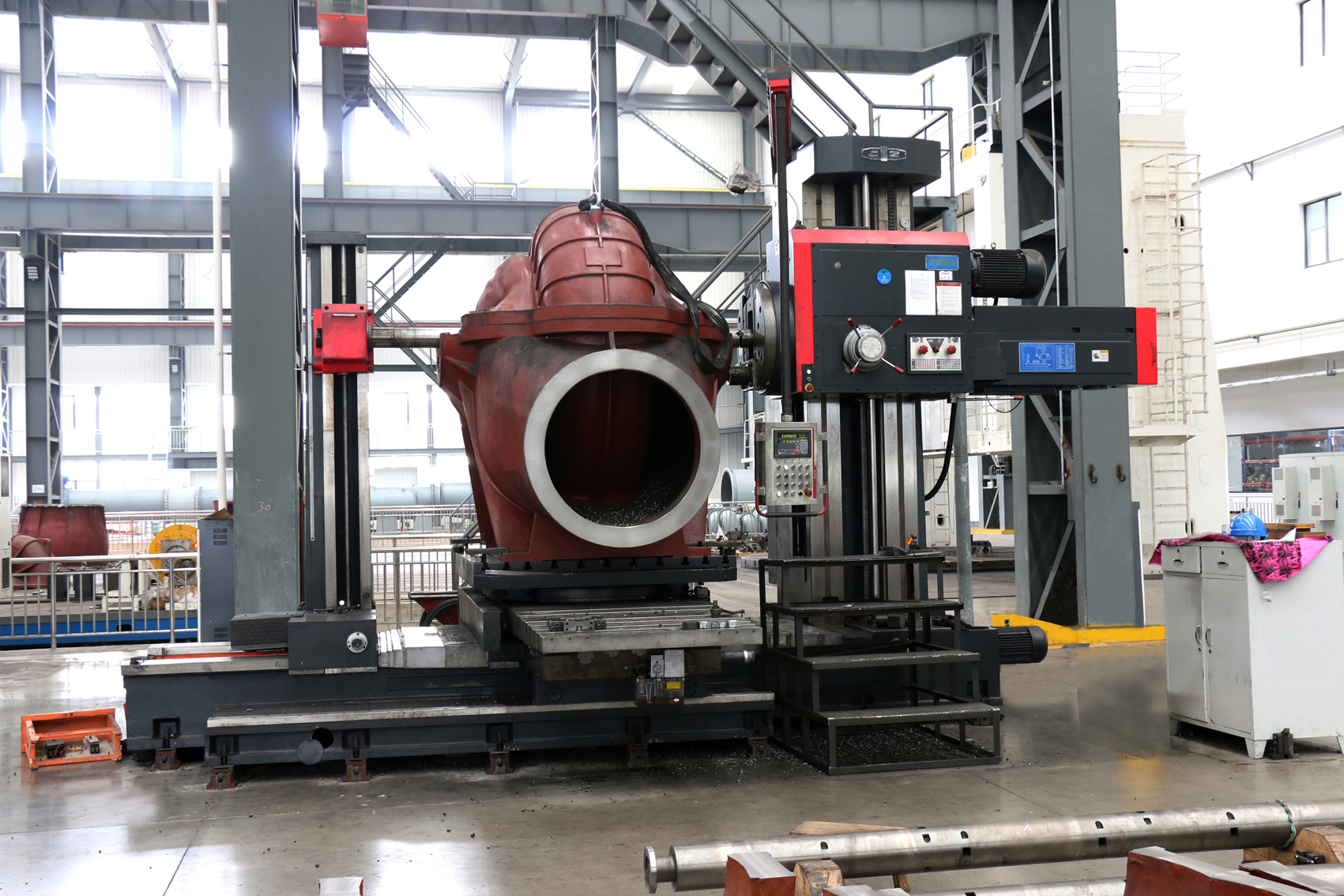

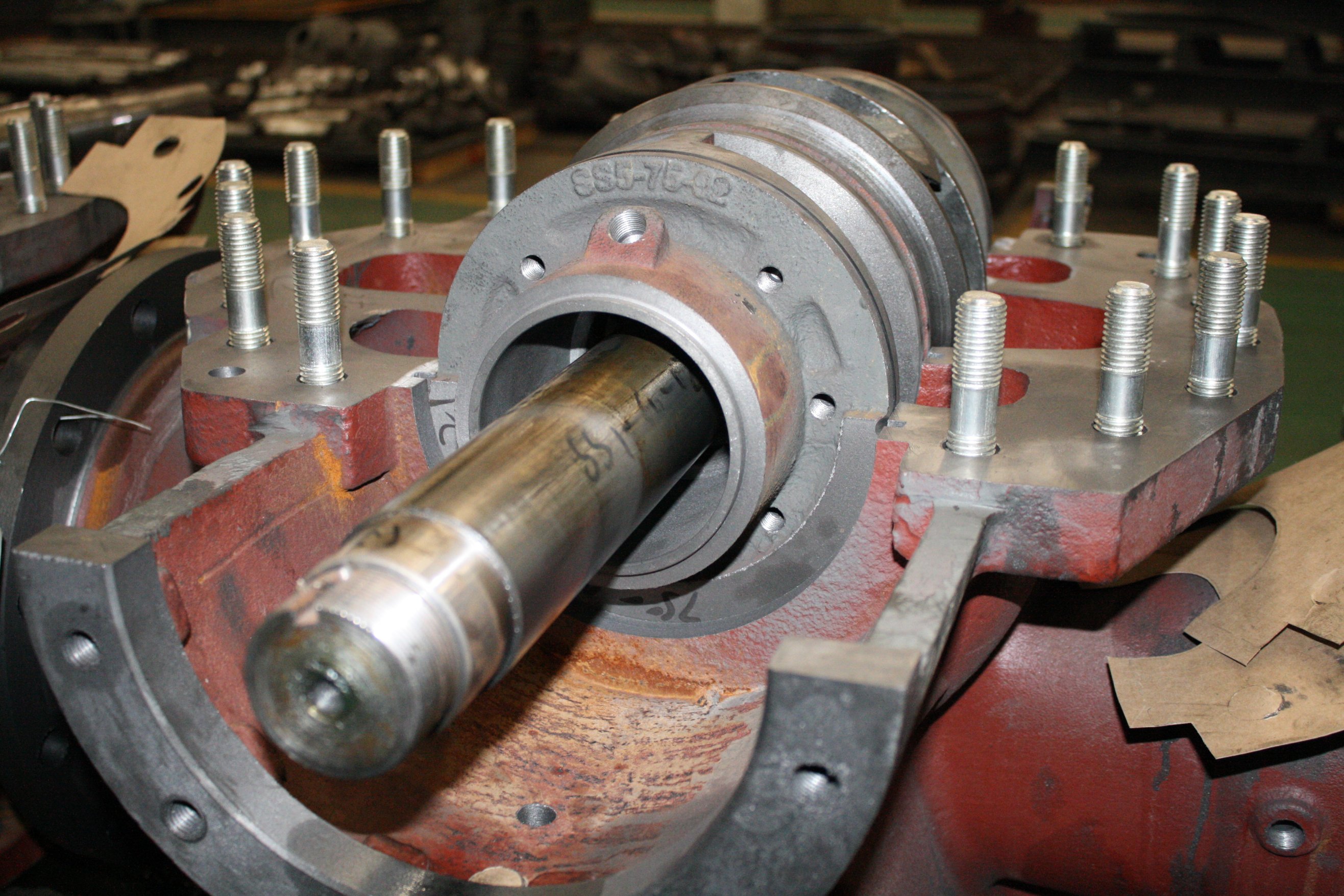

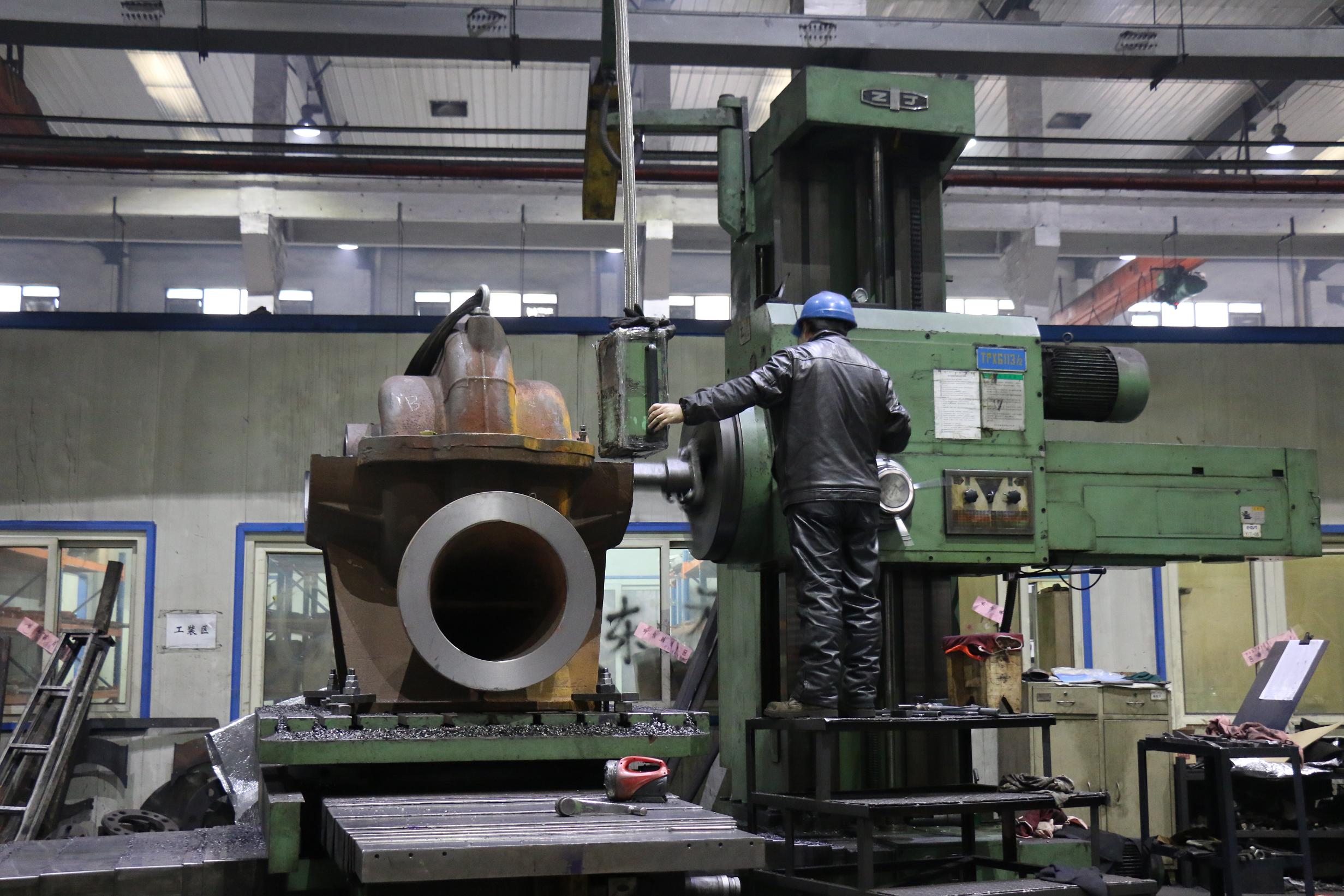

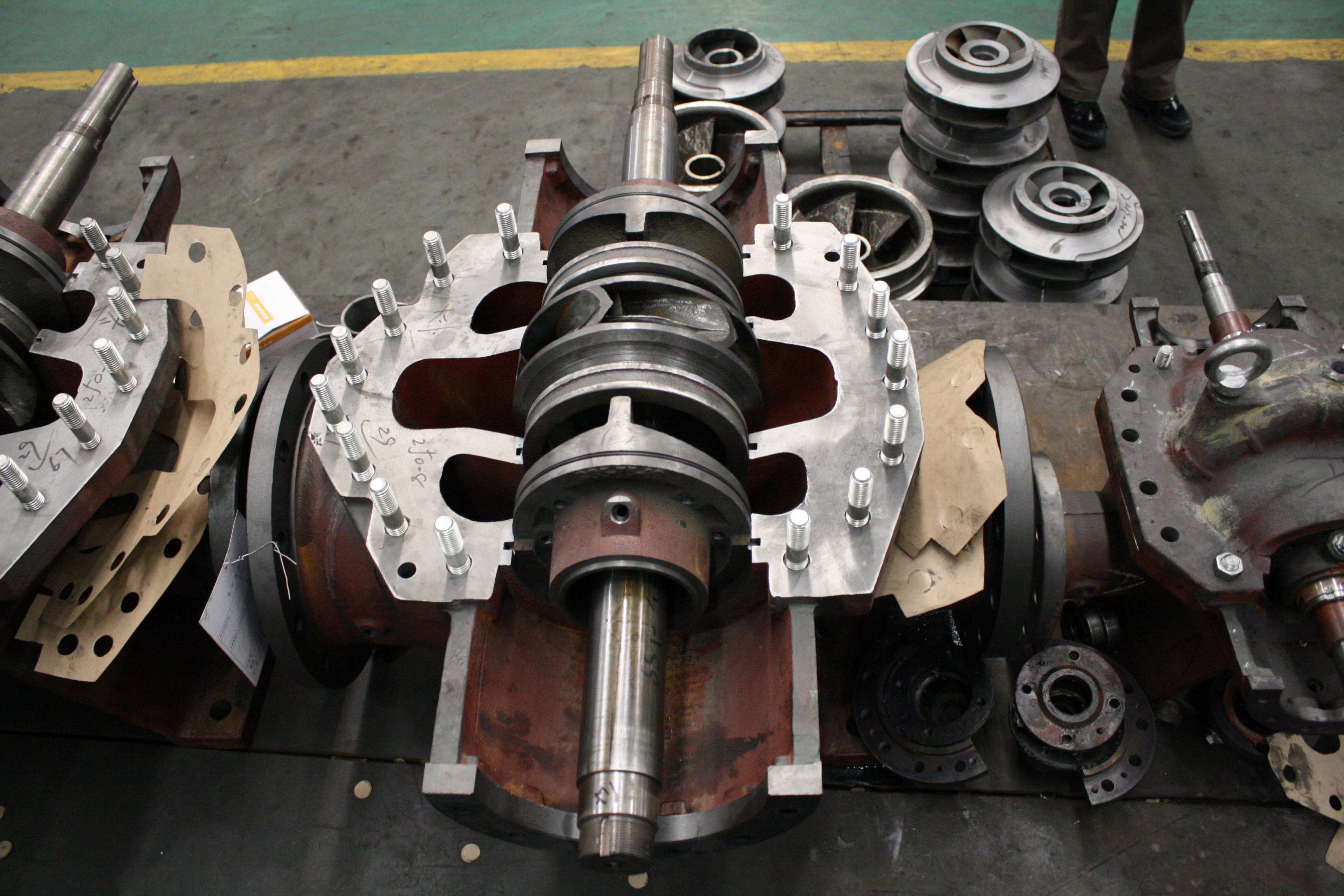

（1）Pump production details:

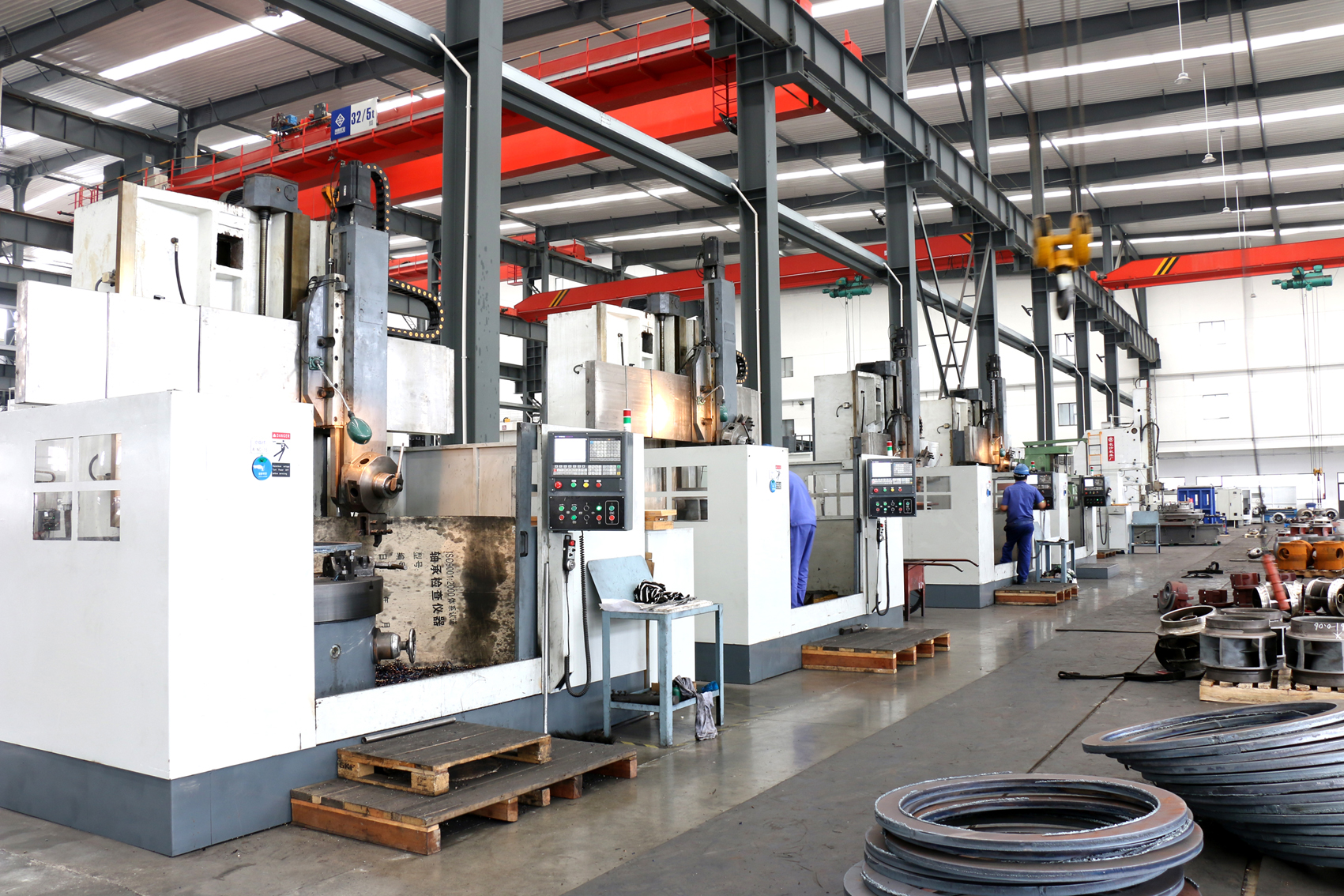

（2）Pump production site:

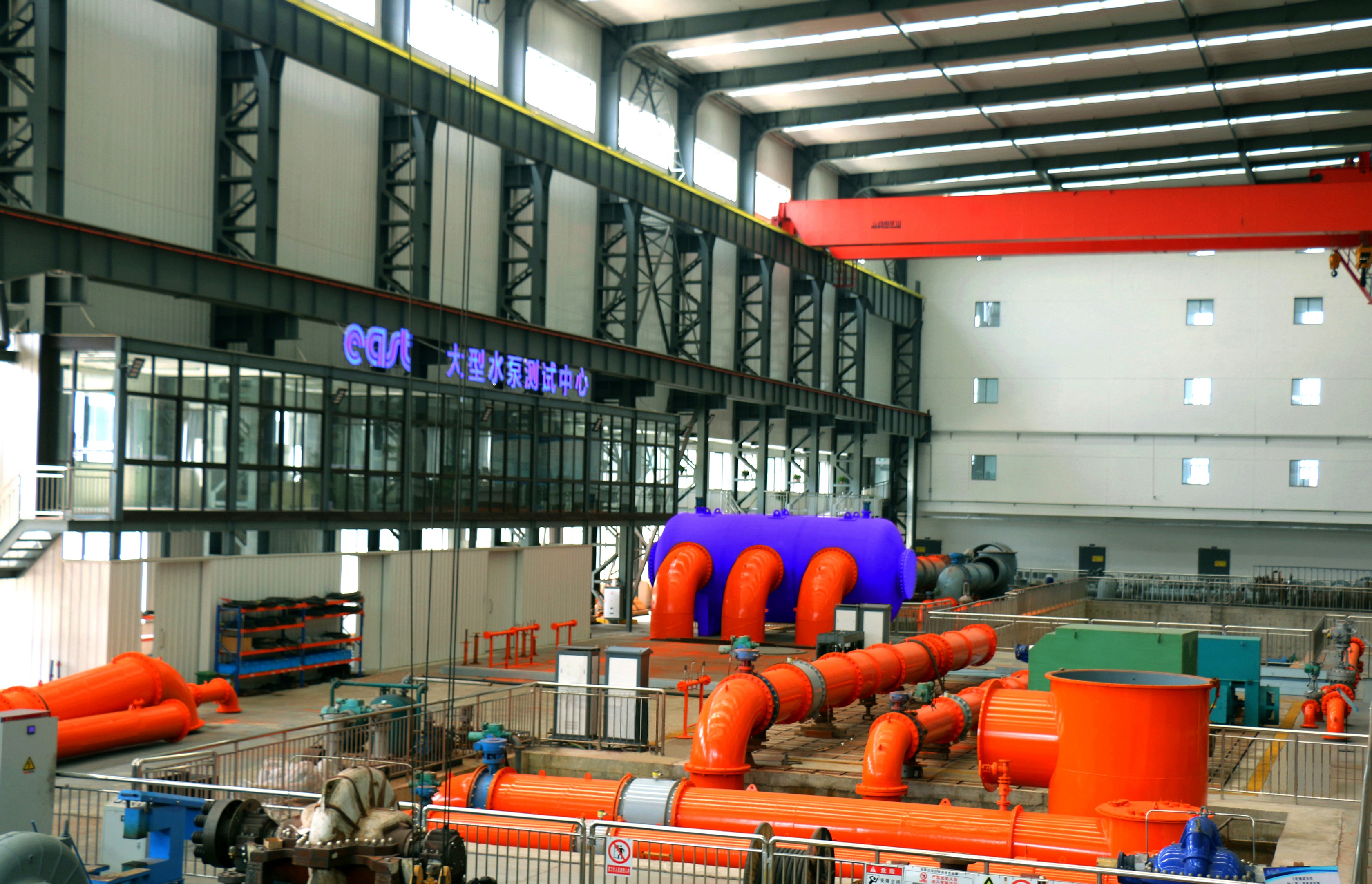

（3）Test Station:
（4）Our employees with product
