High efficiency complete set macaroni Italian Spagetti Equipment Maker

Manufacturing & Processing Machinery Food & Beverage Machinery

EXW Price:US$ 55,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T Western Union

Keywords:Pasta Spagetti Macaroni  macaroni spaghetti machine  elbow macaroni pasta machine  short cut macaroni making full set macaroni production italian noodle making line macaroni suppliers  electric macaroni maker industrial macaroni machine

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Food & Beverage Machinery Trademark: G-Young
Product Package: Export Standard Package/Customized. Specifications: Set
Place of Origin: Wuhan,China. Port: Wuhan/Tianjin/Shanghai

Product Application

   Macaroni is name derives from Italian maccheroni. The pasta quality can compare with Europe standard. The whole production line are made by stainless steel.The raw material adopts potato starch,Rice powder,corn starch, cassava starch,wheat flour, corn flour etc.The capacity can be customized according to customer’s requirement. Our product have gotten the high popularity in domestic and abroad.
SPECIFICATIONS FOR 14 TON PER 24 HOURS OF CAPACITY
Early part
Raw Material Mixer
mixing power: 3KW mixing rev: 365turns/min mixing capacity: 40KG/time 5min/turn)
Size: 1000*500*800mm
the surface touched with the water is Stainless Steel

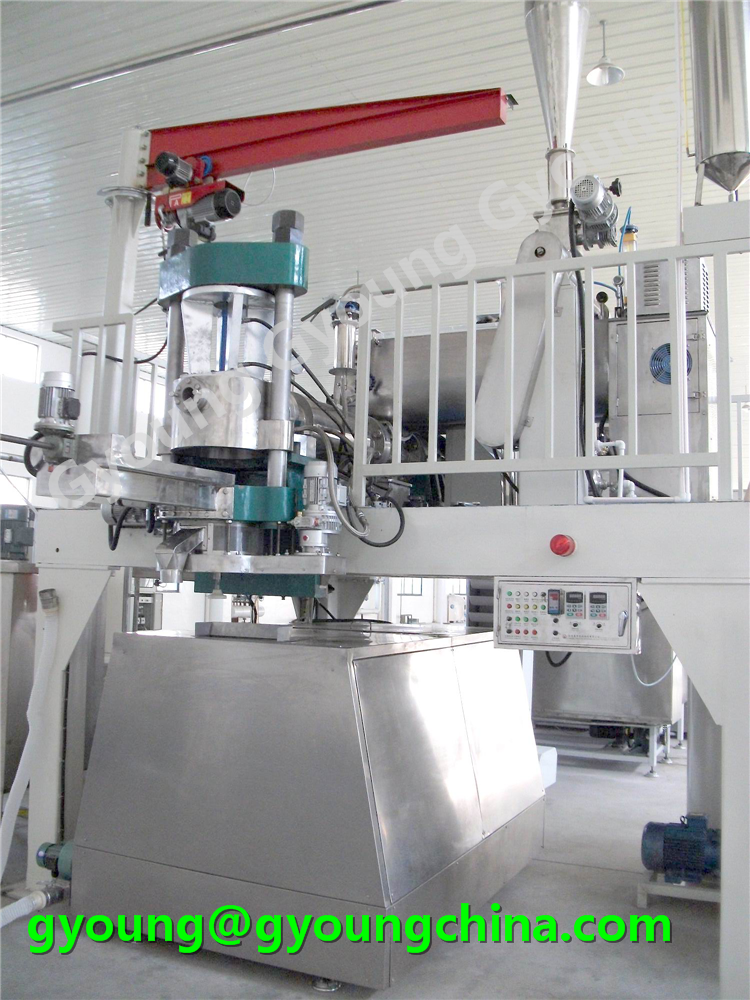

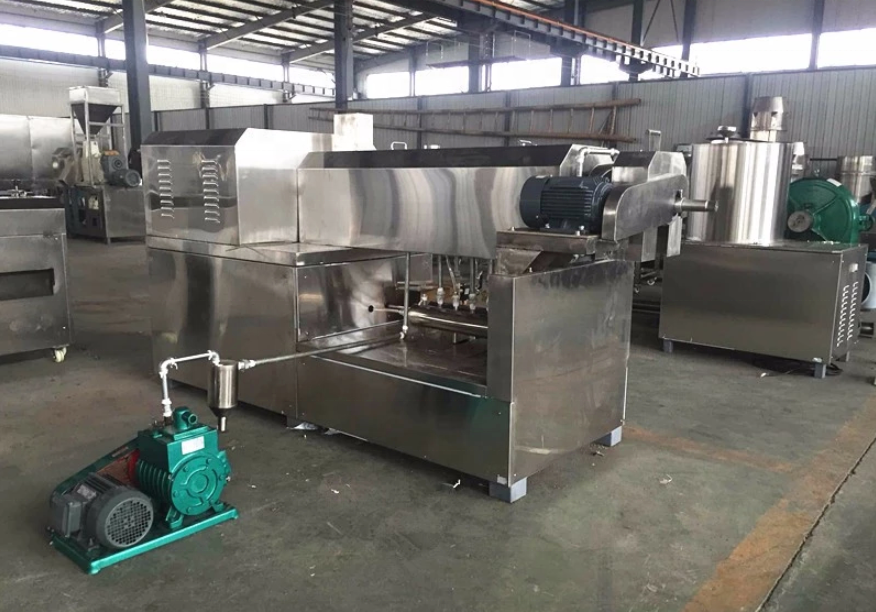

Extruder and Moulding Machine
Power: 54KW

Size: 3500*1050*1960mm
The surface touched with flour is Stainless Steel

Cooling & Cutting Machine
Power: 1.1KW

Size: 2700X630X1020mm
Main part
Cooling Bed
Power: 0.24KW
Production Capacity:40KG/time

Size:1360mm*1000mm*400mm
Continuous Short cut pasta vibrating pre-drying conveyor
Main function: to avoid macaroni sticking together. In the meanwhile, the conveyor transfers the pieces to the pre-drying tunnel.
Material: stainless steel 304, carbon steel, etc.
Drying Bed
Heating Power: 15KW
Production Capacity: 400-500KG/time
Size: 2950*1550*1000mm
End part

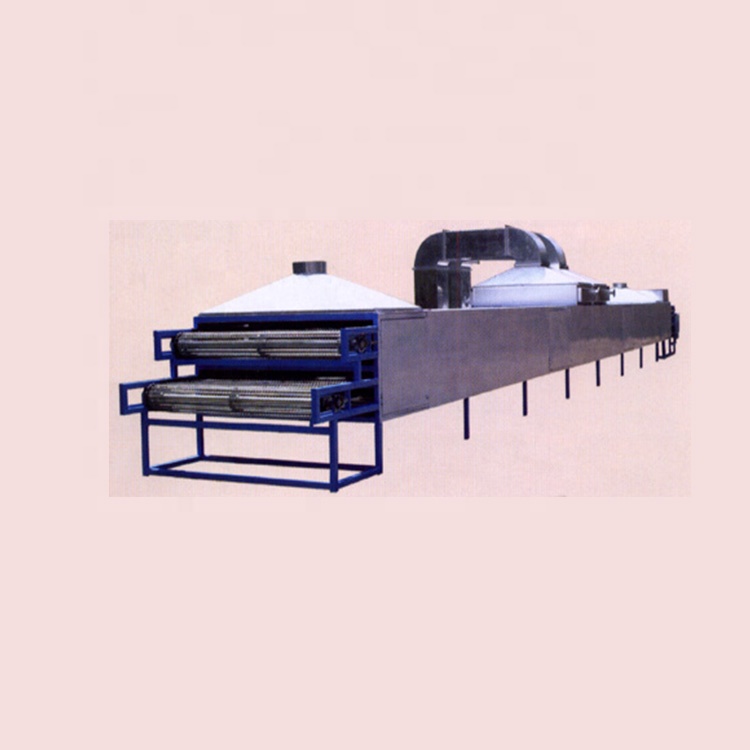

Continuous short cut pasta drying tunnel
 Material: stainless steel 304, carbon steel, etc.

The inner temperature:
50℃-90℃(adjustable)
The steam pressure:
0.03~0.05Mpa
Drying time: 2 hours
Production conveyor
Material: stainless steel 304, carbon steel, food grade rubber belt, etc.
 Main function: to convey the dried macaroni to the auto-scale and packing system.
Electrical system
1. Motors, decelerators and most spare parts are adopted the national well-known qualified products; 2. PLC control
3. Frequency converter using Delta products;

The Features Of Production Line

1. The whole noodle making machine production line is highly automated, easy to operate, save time and labor.
2. The manufacturing process is optimized.
3. Noodle making machine has good production continuity, excellent product quality, high finished product rate, and low energy consumption.
4. Professional for designing the noodle making machine production line according to the customers’ requirement.
Certifications
Detailed Images

Machine Parts

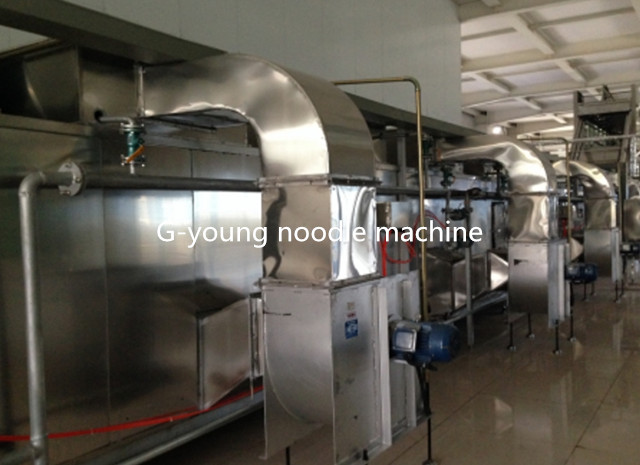

Name: Continuous short cut pasta pre-drying tunnel

Brand: G-young

Original: China


Adopts advanced technologies and is of high automation, safety and easy maintenance.

stainless steel 304, carbon steel, etc.

Main Features

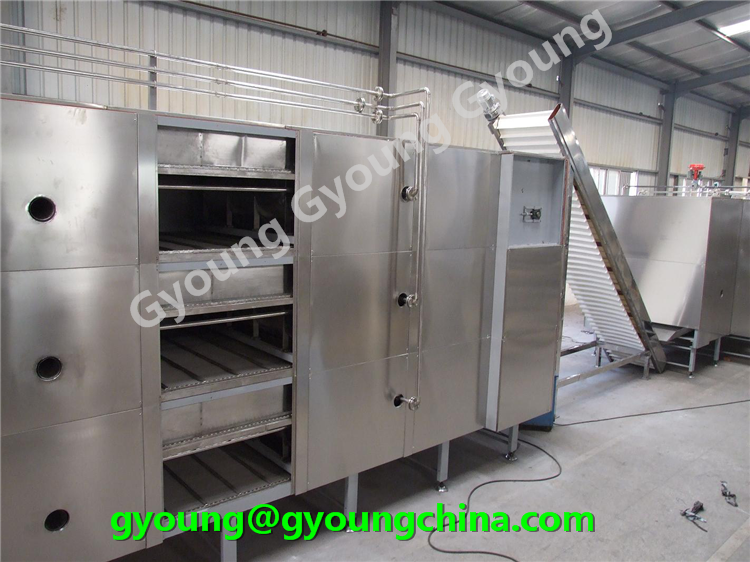

Name: Continuous short cut pasta drying tunnel
Brand: G-young
Original: China

Adopts advanced technologies.

Material: stainless steel 304, carbon steel, etc.
The inner temperature:
50℃-90℃(adjustable)
The steam pressure:
0.03~0.05Mpa
Drying time: 2 hours

Machine Parts

Name:   Bucket Elevator
Brand: G-young
Original: China


Material: stainless steel 304, carbon steel, food grade plastic buckets, etc.
Main function:
Connect the pasta pre-drying tunnel and pasta drying tunnel.

Our Service

 1.   We are a sales team, with all techinical support from engineer team;
2.  we will send an engineer to buyer's factory to install and test machines;
3.  For any questions, professional technicians will solve for you timely;
4.  Training of equipment maintenance and operating personally;
5.  Provide 1 year complete warranty and life-time maintenance service.
