GYTA 2-144cores Outdoor Fiber Optic Cable APL tape armored

Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 0.60 / Piece(s)

MOQ:10000 Piece(s)

Payment Method : L/C T/T D/P Western Union Others

Keywords:duct fiber optic cable Aluminium Tape cable APL tape armored

Add to Favorites

Product Category: Electrical & Power Energy > Wires,Cables & Accessories Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai

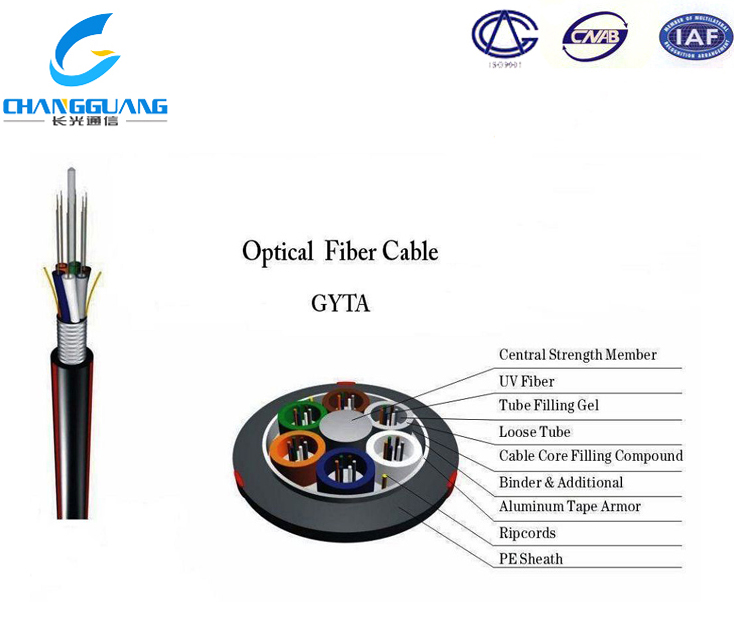

GYTA OUTDOOR Optical Fiber Cable Duct/Aeria


1 The fibres,250μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.
2 A steel wire act as central strength member.
3 Sometimes sheathed with polyethylene(PE) for cable with high fiber count.
4 An Aluminum Polyethylene Laminate (APL) is applied around the cable.
5 The cable is completed with a PE sheath . Application: Duct/Aerial.



Cable Count

Out sheath
Diameter

Weight

Minimum allowable Tensile Strength
(N)

Minimum allowable Crush Load
(N/100mm)

Minimum Bending Radius
(MM)

Storage
temperature

(MM)

(KG)

short term

long term

short term

long term

short term

long term

(°C)

24

10.5

90.00

1500

600

1000

300

20D

10D

-40+60

36

10.5

90.00

1500

600

1000

300

20D

10D

-40+60

42

10.5

90.00

1500

600

1000

300

20D

10D

-40+60

48

10.5

90.00

1500

600

1000

300

20D

10D

-40+60

60

10.5

90.00

1500

600

1000

300

20D

10D

-40+60

72

13.5

160.00

1500

600

1000

300

20D

10D

-40+60





                         Installation                 Diagram

                  (Usually matched with OPGW Composite Overhead Ground Wire
