DIN Standard PVC Vanstone Flange Pipe Fitting
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:PVC pipe fitting PVC Vanstone Flange PVC Flange DIN PVC Vanstone Flange PVC pipe PVC pipe fitting for water PVC Pipe Fitting Flange PVC pipe Vanstone Flange Plastic PVC pipe fitting Plastic PVC flange
| Product Category: | Oil & Gas > Piping and valves | Trademark: | |
| Product Package: | Woven Bag | Specifications: | |
| Place of Origin: | China | Port: | Shanghai |
| Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| Vanstone flange | DN40 | 48 | 425.70 | 43.5 | 31 | 30 |
| DN50 | 42 | 588.50 | 48.5 | 36 | 32 | |
| DN65 | 36 | 744.70 | 48.5 | 36 | 32 | |
| DN80 | 30 | 951.50 | 53 | 38 | 31.5 | |
| DN100 | 20 | 1193.50 | 45 | 45 | 36.5 | |
| De125 | 12 | 1622.50 | 51.5 | 51.5 | 27.5 | |
| DN125 | 12 | 1655.50 | 51.5 | 51.5 | 27.5 | |
| DN150 | 6 | 2425.50 | 58 | 30 | 32 | |
| De200 | 6 | 3811.50 | 69 | 35.5 | 37 | |
| DN200 | 5 | 3932.50 | 69 | 35.5 | 37 | |
| De250 | 3 | 5698.00 | 41.5 | 41.5 | 43 | |
| DN250 | 3 | 4889.50 | 41 | 41 | 52.5 | |
| DN300 | 3 | 7826.50 | 45.5 | 45.5 | 55.5 | |
| DN350 | 2 | 0.00 | 53 | 53 | 42.5 | |
| DN400 | 2 | 0.00 | 57 | 57 | 46 | |
| DN450 | 1 | 0.00 | 64 | 64 | 27 | |
| DN500 | 1 | 0.00 | 68.5 | 68.5 | 29.5 |

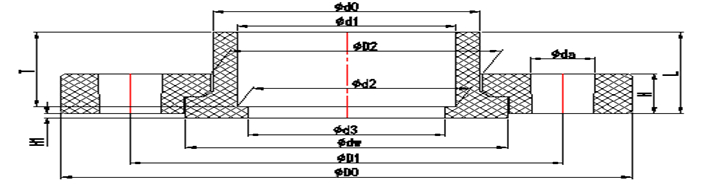

| DN(De) | Dimension(mm) | |||||||||||||
| D0 | D1 | D2 | d0 | d1 | d2 | d3 | dw | da | T | H1 | H | L | n | |
| 40(50) | 150.00 | 110.00 | 62.60 | 61.60 | 50.35 | 49.90 | 45.00 | 74.00 | 18.00 | 31.20 | 2.50 | 18.00 | 33.70 | 4 |
| 50(63) | 165.00 | 125.00 | 78.40 | 77.40 | 63.40 | 62.90 | 57.00 | 93.00 | 18.00 | 37.70 | 2.50 | 20.00 | 41.20 | 4 |
| 65(75) | 185.00 | 145.00 | 91.40 | 90.40 | 75.40 | 74.90 | 69.00 | 110.00 | 18.00 | 43.70 | 2.50 | 23.00 | 47.20 | 4 |
| 80(90) | 200.00 | 160.00 | 107.50 | 106.50 | 90.50 | 89.90 | 83.00 | 126.00 | 18.00 | 51.20 | 2.50 | 26.00 | 55.70 | 8 |
| 100(110) | 220.00 | 180.00 | 127.90 | 126.90 | 110.60 | 109.90 | 103.00 | 147.00 | 18.00 | 61.20 | 2.50 | 28.00 | 65.70 | 8 |
| De125 | 250.00 | 210.00 | 145.00 | 144.00 | 125.70 | 124.90 | 117.00 | 164.00 | 18.00 | 68.70 | 2.50 | 29.00 | 74.20 | 8 |
| 125(140) | 250.00 | 210.00 | 162.30 | 161.30 | 140.75 | 139.90 | 131.50 | 181.00 | 18.00 | 76.20 | 2.50 | 30.00 | 81.70 | 8 |
| 150(160) | 285.00 | 240.00 | 186.30 | 184.30 | 160.80 | 159.90 | 151.00 | 204.00 | 22.00 | 86.20 | 3.00 | 32.00 | 92.20 | 8 |
| De200 | 340.00 | 295.00 | 229.00 | 227.00 | 201.00 | 199.90 | 190.00 | 256.00 | 22.00 | 106.20 | 3.00 | 36.00 | 112.20 | 8 |
| 200(225) | 340.00 | 295.00 | 256.10 | 254.10 | 226.20 | 224.90 | 216.00 | 271.00 | 22.00 | 118.70 | 3.00 | 38.00 | 127.70 | 8 |
| De250 | 395.00 | 350.00 | 283.30 | 281.30 | 251.30 | 249.90 | 239.50 | 310.00 | 22.00 | 131.20 | 3.50 | 40.00 | 138.20 | 12 |
| 250(280) | 398.00 | 351.50 | 308.00 | 305.50 | 281.50 | 280.15 | 272.00 | 325.00 | 22.00 | 147.00 | 10.00 | 35.00 | 159.00 | 12 |
| 300(315) | 445.00 | 400.00 | 356.60 | 354.60 | 316.70 | 314.90 | 302.00 | 373.00 | 22.00 | 167.70 | 5.00 | 44.00 | 175.70 | 12 |
| 350(355) | 510.00 | 450.00 | 393.00 | 391.00 | 356.80 | 355.00 | 326.00 | 417.00 | 24.00 | 184.00 | 32.00 | 40.00 | 197.00 | 16 |
| 400(400) | 570.00 | 500.00 | 444.00 | 442.00 | 402.00 | 400.00 | 369.80 | 453.00 | 24.00 | 204.20 | 40.00 | 44.00 | 226.00 | 16 |
| De450 | 620.00 | 565.00 | 488.50 | 486.00 | 451.94 | 450.05 | 447.00 | 518.00 | 27.00 | 233.00 | 38.00 | 45.00 | 245.00 | 20 |
| De500 | 670.00 | 620.00 | 541.00 | 536.50 | 502.80 | 500.60 | 596.00 | 573.00 | 27.00 | 256.00 | 38.00 | 50.00 | 268.00 | 20 |
