Solar System DC12V 200ah Deep Cycle Battery factory manufacture
Electronics and Communications
MOQ:50 Piece(s)
Payment Method :
Keywords:Deep cycle battery solar system battery solar battery 12v battery 200ah battery
| Product Category: | Electronics and Communications > | Trademark: | VCELL |
| Product Package: | 12V200Ah Solar Gel Battery: Standard PVC bag, Carton, Pallet | Specifications: | 523*239*218*222mm |
| Place of Origin: | China | Port: | China port |
Solar System DC12V 200ah Deep Cycle Battery factory manufacture
1. PRODUCT INFORMATION
SPECIFICATION
Model | 12GEL200 |
Voltage(V) | 12 |
Capacity(20°C) | 200Ah @ 10HR-rate |
Dimensions | 523*239*218*222mm |
Weight(KG) | 59.8 |
Teiminal | M8 |
DC12V 200ah Deep Cycle Battery
2. FEATURES AND BENEFITS
1. Designed floating charging service life: 15years (25oC)
2. Safety valve installation for explosion proof ,Sealed and maintenance free operation
3. By using strong grids, high purity lead and patented Gel electrolyte
4. Extremely low self-discharge characteristic
5. Wide operating temperature range from -20oC~55oC
6. Lead Aluminum calcium Tin alloy high energy, prevent corrosion

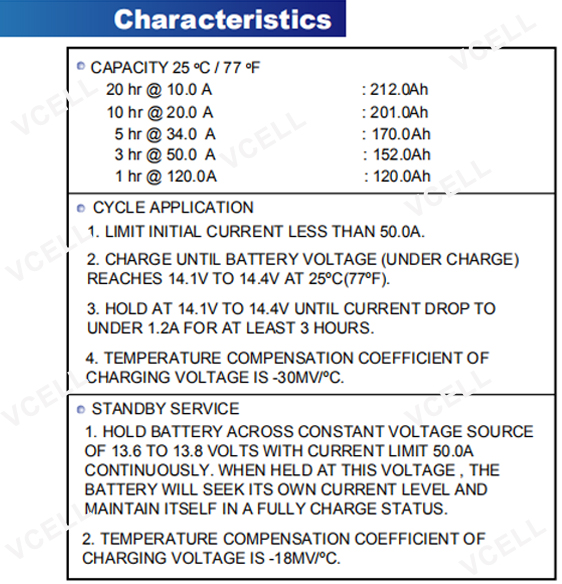

3. Characteristics
More technical datas about 12V200AH Deep Cycle Battery, welcome to contact us.

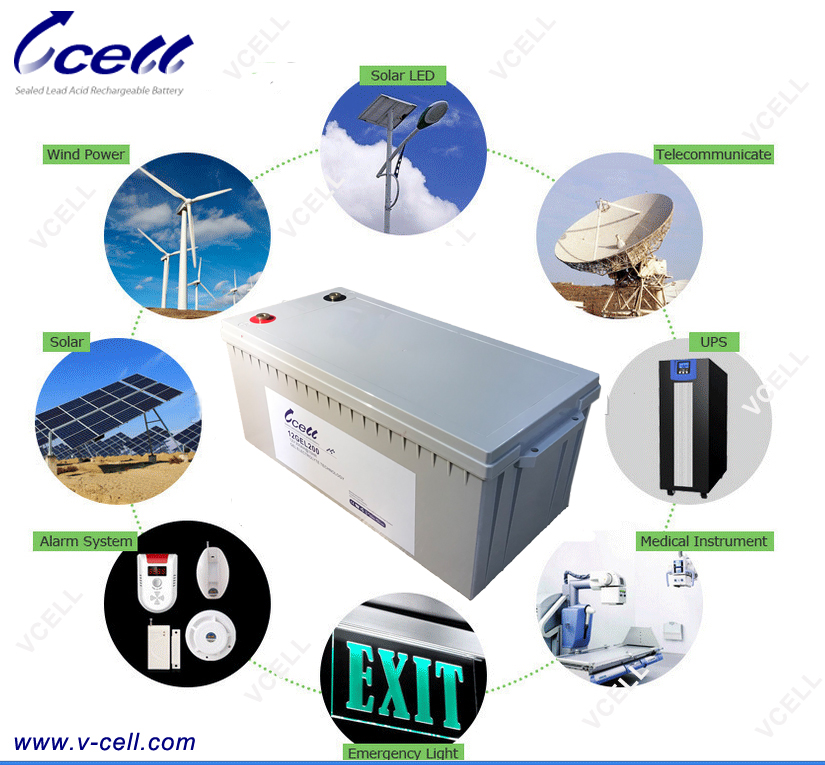

4. APPLICATION
1. Photovoltaic systems
2. Renewable Energy Systems
3. Railroad Utilities
4. Outdoor control Equipments
5. Electric Utilities
6. Solar/Wind/Hybrid power systems
7. DC power supply
8. Security and fire alarm systems
9. Emergency lighting systems

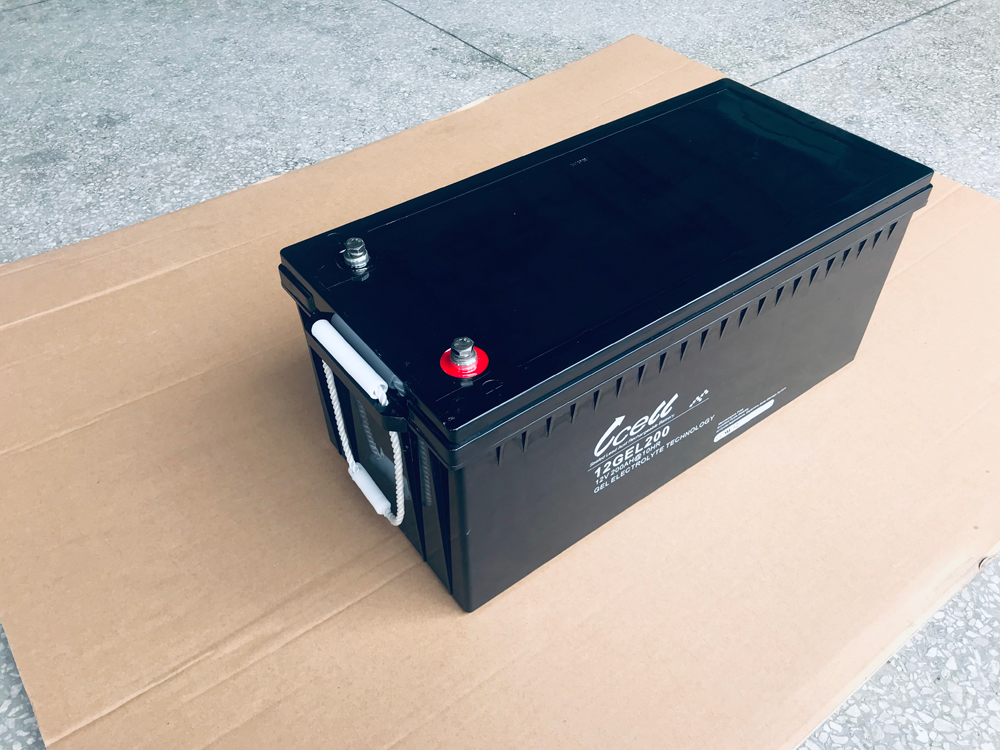

5. PRODUCT PHOTO
Solar System DC12V 200ah Deep Cycle Battery factory manufacture
Model: 12V 200Ah Deep Cycle Battery
6. More related models for GEL series
| Model | Nominal Voltage (V) | Rated Capacity @ 10HR (Ah) | Dimensions (in) mm | Weight (Lb) kg | Terminal Type | |||
| Length | Width | Height | Overall Height | |||||
| "GEL" SERIES, GEL & DEEP CYCLE FOR SOLAR (15-18 Year Design Life for Floating Charge or 650 Cycles @ 80% DOD) | ||||||||
| 12GEL38 | 12 | 38 | (7.76)197 | (6.54)166 | (6.69)170 | (6.69)170 | (25.57)11.60 | RT(M6) |
| 12GEL45 | 12 | 45 | (7.76)197 | (6.54)166 | (6.69)170 | (6.69)170 | (29.98)13.60 | RT(M6) |
| 12GEL50 | 12 | 50 | (9.06)230 | (5.43)138 | (8.31)211 | (8.50)216 | (33.73)15.30 | RT(M6) |
| 12GEL55 | 12 | 55 | (9.06)230 | (5.43)138 | (8.31)211 | (8.50)216 | (35.49)16.10 | RT(M6) |
| 12GEL65 | 12 | 65 | (13.78)350 | (6.57)167 | (6.81)173 | (6.81)173 | (43.43)19.70 | RT(M8) |
| 12GEL70 | 12 | 70 | (10.24)260 | (6.61)168 | (8.35)212 | (8.58)218 | (49.16)22.30 | RT(M6) |
| 12GEL80 | 12 | 80 | (12.09)307 | (6.61)168 | (8.31)211 | (8.46)215 | (56.88)25.80 | RT(M6) |
| 12GEL90 | 12 | 90 | (12.09)307 | (6.61)168 | (8.31)211 | (8.46)215 | (58.42)26.50 | RT(M6) |
| 12GEL100 | 12 | 100 | (13.03)331 | (6.81)173 | (8.50)216 | (8.74)222 | (66.8)30.30 | RT(M8) |
| 12GEL120 | 12 | 120 | (12.98)406 | (6.81)173 | (8.23)209 | (9.33)237 | (78.71)35.70 | RT(M8) |
| 12GEL135 | 12 | 135 | (13.43)341 | (6.77)172 | (11.06)281 | (11.30)287 | (94.80)43.00 | RT(M8) |
| 12GEL150 | 12 | 150 | (19.09)485 | (6.69)170 | (9.45)240 | (9.45)240 | (97.66)44.30 | RT(M8) |
| 12GEL180 | 12 | 180 | (20.98)533 | (8.15)207 | (8.46)215 | (8.62)219 | (117.51)53.30 | RT(M8) |
| 12GEL200 | 12 | 200 | (20.59)523 | (9.41)239 | (8.58)218 | (8.74)222 | (131.84)59.80 | RT(M8) |
| 12GEL230 | 12 | 230 | (20.47)520 | (10.55)268 | (8.66)220 | (8.82)224 | (151.02)68.50 | RT(M8) |
| 12GEL250 | 12 | 250 | (20.47)520 | (10.55)268 | (8.66)220 | (8.82)224 | (157.19)71.30 | RT(M8) |
| 2GEL100 | 2 | 100 | (6.73)171 | (2.83)72 | (8.07)205 | (8.43)214 | (13.23)6 | RT(M8) |
| 2GEL200 | 2 | 200 | (6.77)172 | (4.37)111 | (12.95)329 | (14.37)365 | (29.54)13.4 | RT(M10) |
| 2GEL300 | 2 | 300 | (6.73)171 | (5.94)151 | (13.15)334 | (14.37)365 | (42.11)19.1 | RT(M10) |
| 2GEL400 | 2 | 400 | (8.31)211 | (6.89)175 | (12.91)328 | (14.37)365 | (55.34)25.1 | RT(M10) |
| 2GEL500 | 2 | 500 | (9.53)242 | (6.85)174 | (12.95)329 | (14.37)365 | (68.78)31.2 | RT(M10) |
| 2GEL600 | 2 | 600 | (11.89)302 | (6.93)176 | (12.99)330 | (14.37)365 | (81.35)36.9 | RT(M10) |
| 2GEL800 | 2 | 800 | (16.14)410 | (6.93)176 | (12.99)330 | (14.37)365 | (108.69)49.3 | RT(M10) |
| 2GEL1000 | 2 | 1,000 | (18.70)475 | (6.89)175 | (12.95)329 | (14.37)365 | (133.82)60.7 | RT(M10) |
| 2GEL1500 | 2 | 1,500 | (15.79)401 | (13.82)351 | (13.46)342 | (15.08)383 | (203.93)92.5 | RT(M10) |
| 2GEL2000 | 2 | 2,000 | (19.29)490 | (13.78)350 | (13.58)345 | (15.08)383 | (270.73)122.8 | RT(M10) |
| 2GEL3000 | 2 | 3,000 | (27.95)710 | (13.90)353 | (13.50)343 | (15.04)382 | (419.98)190.5 | RT(M10) |
| 6GEL150 | 6 | 150 | (10.24)260 | (7.09)180 | (9.69)246 | (9.92)252 | (52.47)23.80 | RT(M8) |
| 6GEL160 | 6 | 160 | (11.77)299 | (6.77)172 | (8.94)227 | (9.09)231 | (56.22)25.50 | RT(M8) |
| 6GEL180 | 6 | 180 | (12.05)306 | (6.61)168 | (8.66)220 | (8.90)226 | (59.52)27.00 | RT(M8) |
| 6GEL200 | 6 | 200 | (12.72)323 | (7.01)178 | (8.90)226 | (9.06)230 | (67.90)30.80 | RT(M8) |

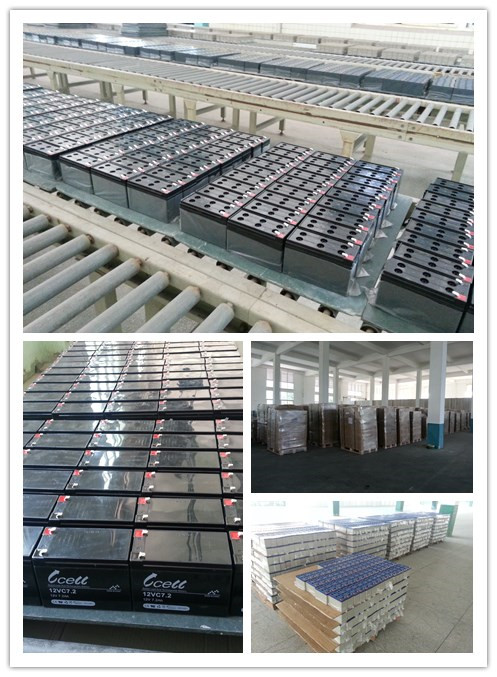

7. FACTORY VIEW
| Contact Name: | Mrs Susanna Jiang | Contact Email: | su****a@v-cell.com |
| Contact Job Title: | Business Development Manager | Contact Mob: | 180***801 |
| Contact Tel: | 0086 27 83636686 | Contact Fax: | 0086 27 83639466 |
| Address: | Website: | http://www.v-cell.com/ |
Vcell was founded in 2005. We can provide professional solar system design, manufacturing and installation services. We have a complete solar energy product line, including: energy storage battery (lead acid gel energy storage battery and lithium iron phosphate energy storage battery), solar panel, inverter, controller, UPS power supply, and small electrical appliances with solar energy as energy source. Through modular design, our products are very easy to install and secure connections. Our products have passed UL and CE certification and quality assurance system has passed ISO9001 certification. Our products and services are acclaimed in Australia, Africa, Southeast Asia, etc.
