OPGW optical fiber cable manufacturer
Electrical & Power Energy Wires,Cables & Accessories
MOQ:50000 Meter(s)
Payment Method : L/C T/T D/P Western Union Others
Keywords:OPGW Power lines grounding OPG Fiber optic cable
| Product Category: | Electrical & Power Energy > Wires,Cables & Accessories | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
What is the details of our OPGW fiber optic cable?

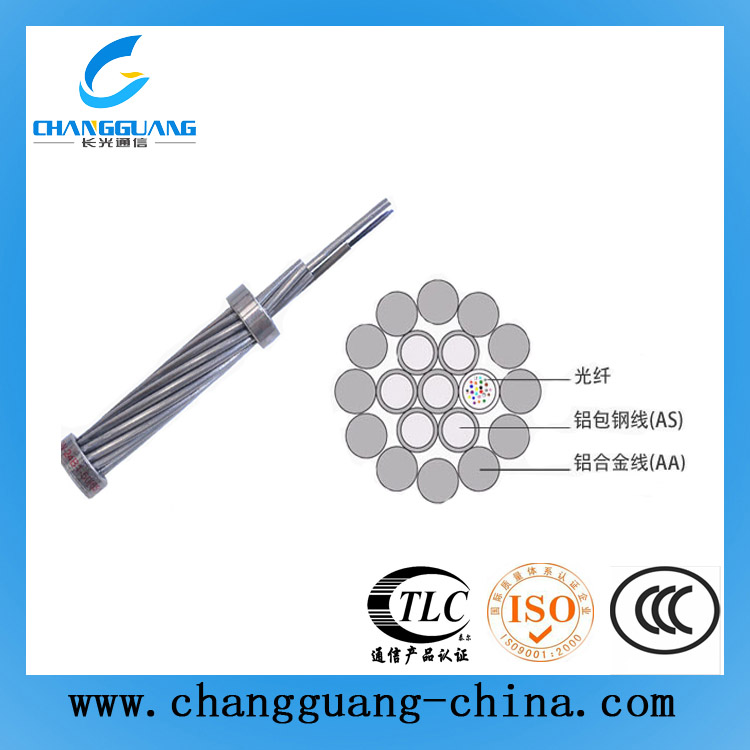

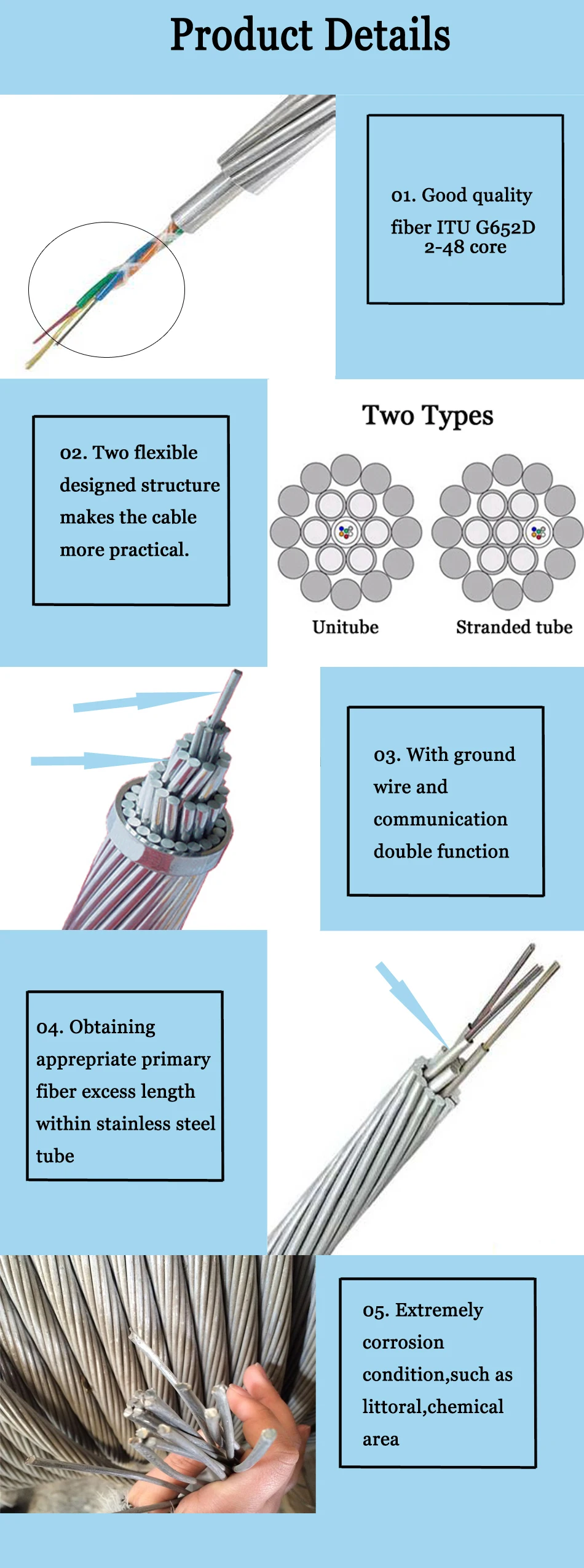

OPGW cable has two constructions:
1.Central loose tube type
OPGW fiber optic cable 24 core is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions. Aluminium layer over the tube is optional. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminium clad steel and aluminium annoy wires. The aluminium clad steel wires are shaped trapezoidally around the optical unit to provide compact construction. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to controltemperature rise during short circuit conditions.
2.Multi loose tube type
OPGW fiber optic cable 24 core is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer cable. The multi loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multi loose tube type can meet the requirement of huge cross and large current capacity.
Features:
Fiber counts up to 432 or higher if needed
Laser-welded, hermetically sealed stainless steel tubes provide mechanical and thermal protection for optical fibers
High load, long span capability

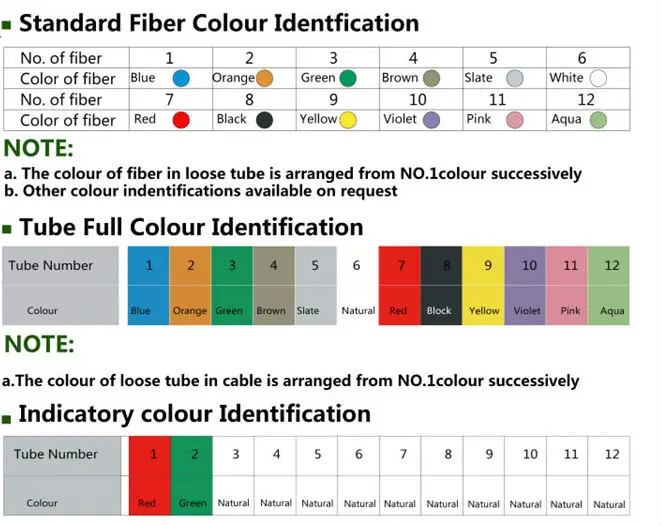

Each stainless steel tube is uniquely identified for organization at splice locations
Stranded wires selected to optimize mechanical and electrical properties of cable
Anti-rotational devices usually not required for installation, depending on conditions
Applications:
For use by electric utilities on transmission lines in lieu of traditional shield wire
For retrofit applications where existing shield wire needs to be replaced with OPGW
For new transmission lines in lieu of traditional shield wire
Voice, video, data transmission
SCADA networks
Dark fiber leasing
Characteristics

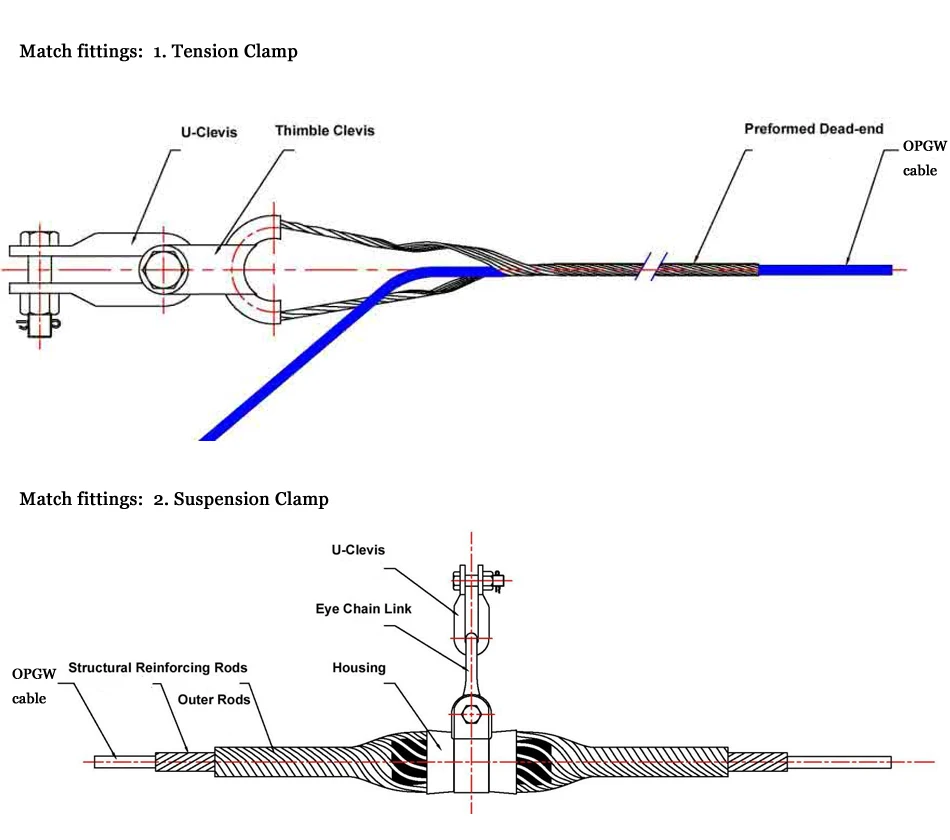

Installation

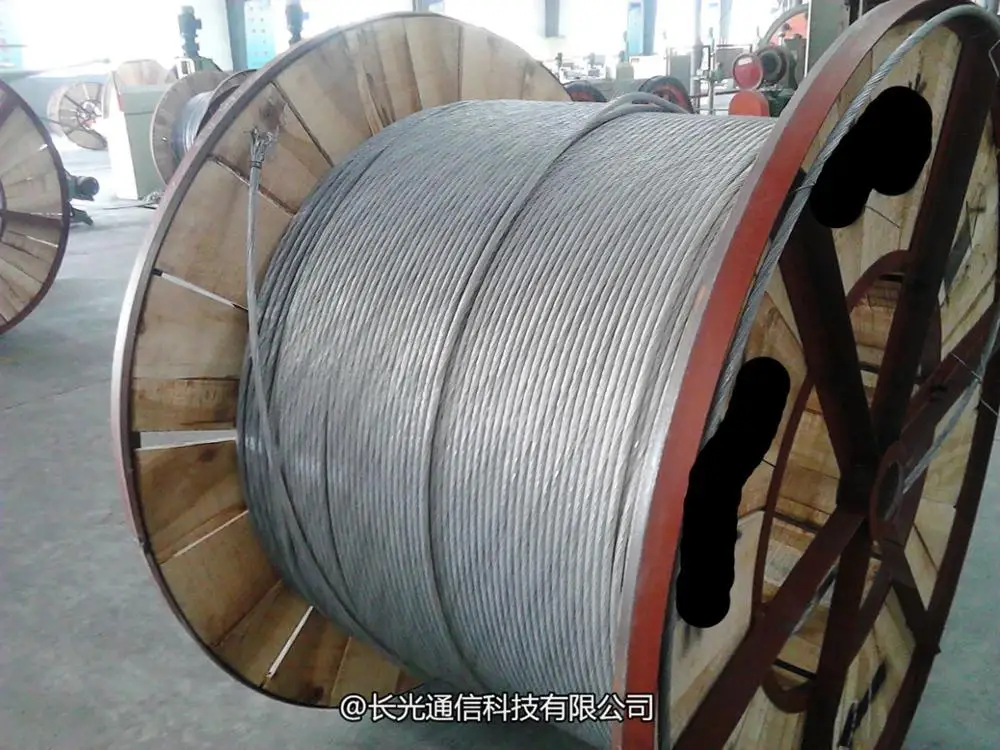

PACKING AND SHIPPING
| Contact Name: | Miss Mandy Zheng | Contact Email: | Ma****y@cg-js.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 156***709 |
| Contact Tel: | Contact Fax: | ||
| Address: | B02, west District of Taiwanese Industrial Park, Economic And Technological Development ZONE, Suqian, Jiangsu,China | Website: | www.changguanggroup.com |

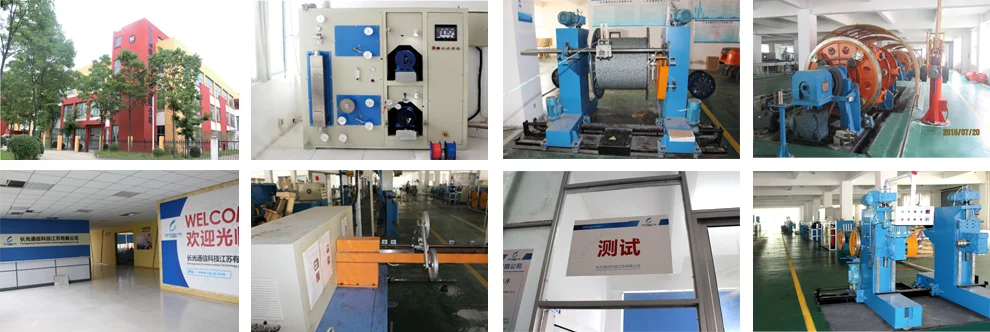

Changguang (China) Co., Ltd . is the optical communication,Internet ,new material,electronic information as the core of investment holding group .There are three wholly owned subsidiaries in Jiangsu, Shanghai,Shenzhen. The Group has production facilities and marketing center in Pakistan, Indonesia, Algeria, France and other regions and countries, the employees more than 1,000 all over world. Changguang Communication Technology Jiangsu Co., Ltd. is a nation-level key high-tech enterprise.The company is delicated to the development of optical communication technology and product development, production, sales and service. We have advanced R & D, production and testing equipment. Our main products are indoor and outdoor fi ber optic cables, power cable, special cable, fiber optic submarine cable and varieties of accessories. They are widely used in network communication construction, various industries and areas of national power, new energy generation, social security, transportation, oil, FTTH, sensor technology,etc. . Looking at the global market, products developed and produced by us are exported to Southeast Asia, Central Asia, Latin America, Africa and many other countries and regions. Meanwhile, we have developed strategic partnerships more than a dozen leading global optical communications companies. Our company establish a strategic partnership with domestic research and development of optical communication technology leading institutions of Shanghai University Fibre Physics Institute. We are the Implementation Platform of the Institute for Scientifi c and technological achievements experimental base forwards. Company has ISO90001: 2008 quality system certifi cation, the international 3C certifi cation, Gentile certifi cation, and is applying for UL certifi cation, CE certifi cation. Has japan imported advanced production equipment and a full set of optical communications test equipment, providing our customers with reliable product quality assurance.
