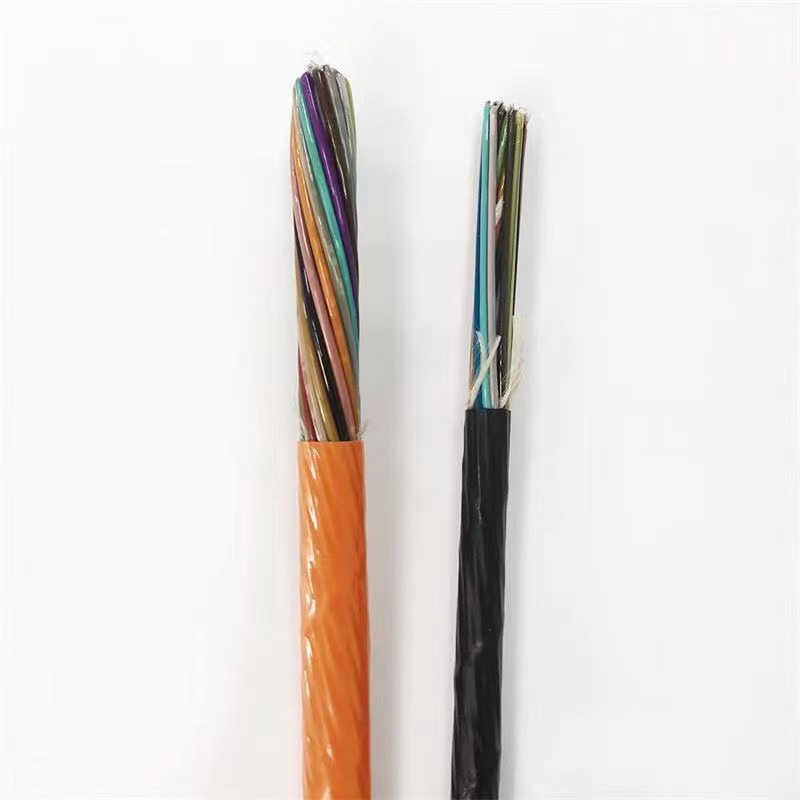

Air blowing cable for HDPE micro duct- fiber unit(2~12cores)
Electrical & Power Energy Wires,Cables & Accessories
MOQ:50000 Meter(s)
Payment Method : L/C T/T Western Union Others
Keywords:Air blowing cable micro duct- fiber
| Product Category: | Electrical & Power Energy > Wires,Cables & Accessories | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
Quick Details
Place of Origin: shanghai, China (Mainland)
Brand Name: changguang ,
Fiber counts: 2~12 cores
Diameter(mm): 1.15~1.65mm
Laying method: air blowing
Weight(kg/km): 1~2.2kg/km
Optical fiber: single mode
Blowing length: 500~1000m
Sheath: HDPE Operating temperature: -30℃ ~ +60℃
Packaging & Delivery Packaging Details: 2 Core Fiber Optic Cable Packing by Wooden or plywood drum
1.Features and Benefits
2,4,6,8 and 12 fibers options.
Stable structure, good mechanical and temperature performance.
Designed with special grooves to advance blowing distance.
Lightweight and proper stiffness, repeat installation.
Designed with no gel, easy stripping and handling.
Better costs advantage compared to traditional product.
Complete accessories, less manpower, lower installation time.
2.Standards
Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical Fibre...... ITU-T G.651,G.652,G.655,G.657
IEC 60793-2-10,IEC 60793-2-50
Optical Cable......IEC 60794-1-2,IEC 60794-5
3.Technical Parameter
Basic Performance
Fiber Count | 2 Fibres | 4 Fibres | 6 Fibres | 8 Fibres | 12 Fibres |
Outer Diameter (mm) | 1.15±0.05 | 1.15±0.05 | 1.35±0.05 | 1.50±0.05 | 1.65±0.05 |
Weight (g/m) | 1.0 | 1.0 | 1.3 | 1.8 | 2.2 |
Min Bend radius (mm) | 50 | 50 | 60 | 80 | 80 |
Temperature | Storage:-30°C~ +60°C Operation:-20°C~ +60°C Installation:-5°C~ +50°C | ||||
