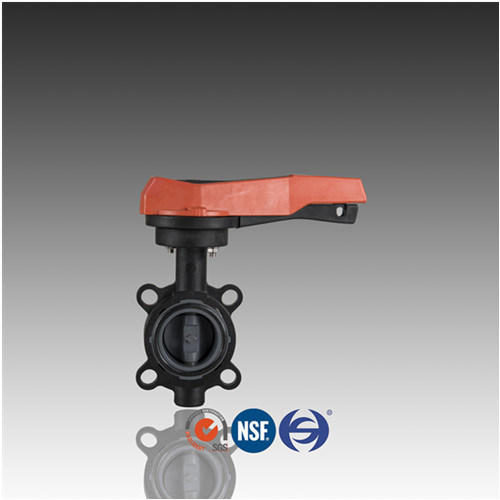

DIN/ASTM/JIS Handled CPVC Butterfly Valve for Chemical Industry

Oil & Gas Piping and valves

FOB Price:US$ 0.10 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:Butterfly Valve CPVC Butterfly Valve DIN Butterfly Valve ASTM Butterfly Valve JIS Butterfly Valve Handled Butterfly Valve CPVC Valve Valve for Chemical  CPVC PIPE DIN CPVC Valve

Add to Favorites

Product Category: Oil & Gas > Piping and valves Trademark:
Product Package: Woven Bag Specifications:
Place of Origin: China Port: Shanghai


Description:
Items NameCPVC Handled Butterfly Valve
Material namePVC-C
Size63-400mm
ColorsValve body is Light Grey  and handle is red; other color
connectionflange locked
The presures1.0Mpa; 10bar; PN10
ApplicationGeneral
The standardsJIS/ASTM/CNS/ISO 4422/ANSI/DIN
The cetificationsSGS,CE, ,ISO14001,ISO9001

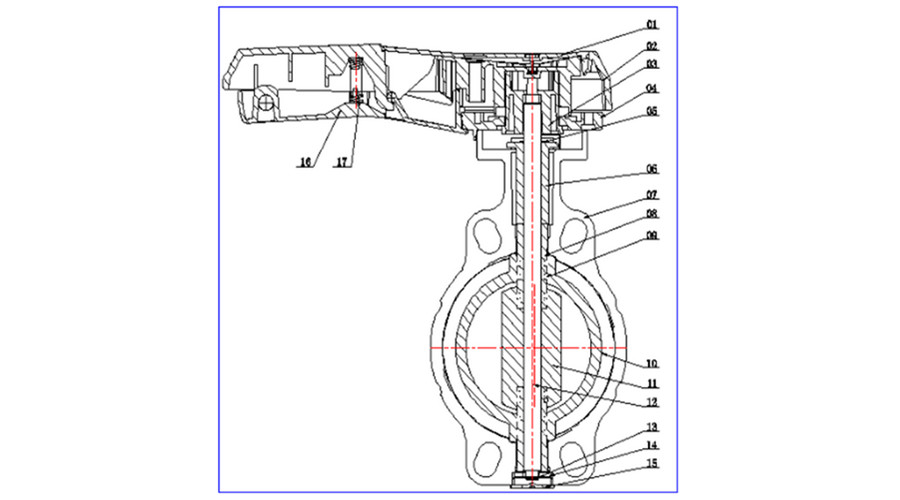

MATERIAL TABLE
No.PartsQuantityMaterial
01BodyPVC-U/PVC-C
02Seat sealNR/EPDM/FPM
03DiscPVC-U/PVC-C
04O-ringNR/EPDM/FPM
05ShaftSteel 45#/stainless steel 304/316
06BearPVC-U/PVC-C
07PlatePVC-U/PVC-C
08ScrewSteel
09Screw capPVC-U/PVC-C
10HandlePVC-U/PP+GF30%
11SpringSpring steel
12LeverPVC-U/PVC-C
13Set pinSteel
14BoltSteel
15Mark capPVC-U/PVC-C



(DIN/ASTM/JIS)VALVE
Dimension (mm)n-ФePN(MPa)
Size(DN)ФDФD1ФdLФDNL1H1H2H
50159.50 125.00 62.20 39.00 70.00 215.80 99.45 143.35 223.00 4-191.00
65180.00 145.00 78.70 36.00 70.00 215.80 111.50 155.40 245.40 4-191.00
80196.00 160.00 92.10 42.00 70.00 215.80 127.00 170.90 268.90 8-191.00
100229.60 180.00 111.90 46.00 70.00 264.20 156.25 205.15 320.00 8-191.00
125255.00 210.00 137.90 53.00 70.00 264.20 174.00 222.90 350.40 8-191.00
150281.50 240.00 157.35 59.40 70/102305.40 190.00 250.60 391.35 8-231.00
200342.60 295.00 214.20 76.00 70/102303.27 229.00 280.60 460.90 8-231.00



Packing Details
NoDescriptionSizePcs/ctn

Weight

(g/pcs)

Length

 (cm)

Width

 (cm)

Height

 (cm)

1

General butterfly valve

(handled type,NR,dark grey)

DN5061009.39 443835
2DN6561113.23 473837
3DN8061318.38 493838
4DN10031877.73 453829
5DN12532603.95 473830
6DN15013721.44 533317
7DN20015583.96 573617
