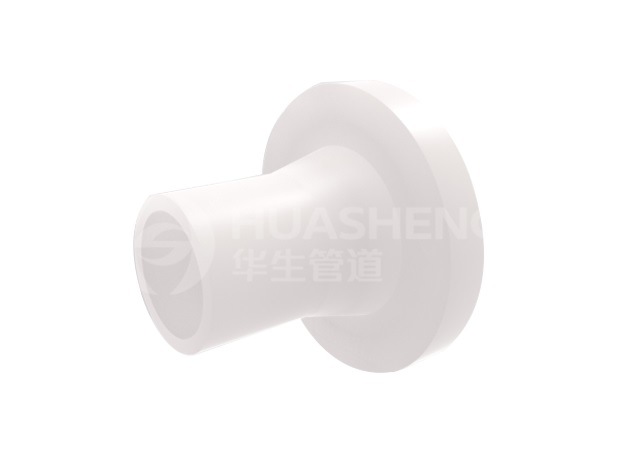

DIN PVDF Socket Fusion Flange Stub PN16 Pipe Fitting
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:PVDF Flange Flange PVDF Socket Fusion Flange Stub PVDF Socket Fusion Flange Socket Fusion Flange Flange Adaptor PVDF Pipe Fitting PVDF Pipe Pipe Flange
| Product Category: | Oil & Gas > Piping and valves | Trademark: | |
| Product Package: | Woven Bag | Specifications: | |
| Place of Origin: | China | Port: | Shanghai |
PVDF Advantages:
Excellent piping system solution for demanding chemical and water applications, even at high temperature;
Due to its excellent chemical resistance, it is widely used in chemical distribution systems;
Free of additives;
Superior purity;
No reaction with fluids or ingredients in the piping system.
| DN [mm] | d [mm] | D [mm] | D1 [mm] | L [mm] | L1 [mm] | z [mm] | weight [kg] |
| 15 | 20 | 26 | 45 | 19 | 7 | 3 | 0.022 |
| 20 | 25 | 32 | 58 | 21 | 9 | 3 | 0.044 |
| 25 | 32 | 40 | 68 | 23 | 10 | 3 | 0.066 |
| 32 | 40 | 50 | 80 | 25 | 11 | 4 | 0.092 |
| 40 | 50 | 61 | 90 | 28 | 12 | 4 | 0.12 |
| 50 | 63 | 76 | 105 | 32 | 14 | 4 | 0.18 |
| 65 | 75 | 90 | 125 | 36 | 16 | 5 | 0.31 |
| 80 | 90 | 108 | 140 | 42 | 17 | 5 | 0.408 |
| 100 | 110 | 131 | 160 | 48 | 18 | 6 | 0.572 |
| Contact Name: | Mrs Claire Zhong | Contact Email: | cl****e@czhuasheng.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 159***588 |
| Contact Tel: | 86-519-85201808 | Contact Fax: | |
| Address: | NO.9, Wangxian Road, Xinbei District, Changzhou, Jiangsu Province, China | Website: | www.huashengpipe.com |
Huasheng Pipeline Technology Co.,Ltd has been in business since 1988. As a technical leader with over 30 years’ experience, Huasheng is engaged in researching, developing and manufacturing all kinds of UPVC, CPVC, PE, PPH, PVDF, AGR piping systems for industrial, water supply and water treatment applications.
After years of exploration and promotion, Huasheng becomes a leading enterprise in the industry. Huasheng has been the supporting company of Jiangsu Engineering Research Center for Plastic Piping System, the member of China Plastics Piping Association and China Electronic Materials Association. The company has two brands -“HUASHENG”and “CENIT”for different international markets.
Huasheng Co., Ltd operates two modern factories of 200,000 square meters, with 30 pipe extruding lines, 80 mechanical processing equipment, 200 injection machines, and 400 employees. The annual production has reached a sales turnover of USD 30,000,000, annual production capacity has exceeded over 80,000 tons, and storage is over 10,000,000 USD. As one of the biggest PVC manufacturing companies, Huasheng strives to get trust by quality and provide satisfying product and service to customers worldwide.
