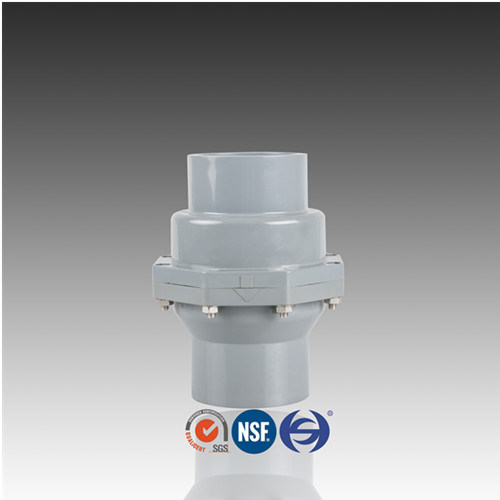

DIN PN16 CPVC Check Valve with Swing

Oil & Gas Piping and valves

FOB Price:US$ 0.10 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:Check Valve CPVC Check Valve PVC Check Valve DIN Check Valve Check Valve with Swing  Swing Check Valve  CPVC Swing Check Valve CPVC Valve DIN CPVC Swing Check Valve

Add to Favorites

Product Category: Oil & Gas > Piping and valves Trademark:
Product Package: Woven Bag Specifications:
Place of Origin: China Port: Shanghai


Description:
Items NameCPVC Swinging Check Valve
Materialchlorinated polyvinyl chloride/CPVC
Size75-160 mm; 2-1/2"-6"
ColorHigh quality  Light Grey; as to clients requests
connectionGlue; socket; cement
PressureMedium Pressure, 1.0mpa, 1.6mpa, 16bar, 10bar, PN10, Pn16
Temperature of MediaNormal Temperature
StandardDIN, ANSI, ISO 4422; NPT, BSPT, BS
CertificationISO14001,CE, ,ISO9001,SGS
JointsSolvent Welding Joints
MediaWater/liquid
Standard or Nonstandard:Standard

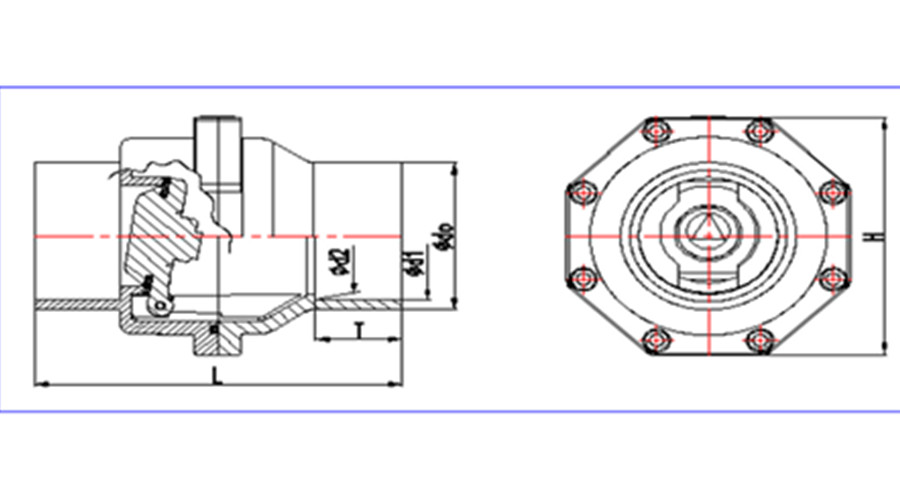

(DIN)VALVE
Dimension (mm)

Working Pressure

(/C)

Minimum

Open Pressure

(/C)

SizeDN

(De)

d0d1d2TLH
65(75)88.20 75.40 74.90 43.70 207.10 169.00 60.15~0.3
80(90)104.60 90.50 89.90 51.20 218.70 169.00 60.15~0.3
100(110)125.40 110.60 109.90 61.20 268.00 206.00 60.15~0.3
De125(125)145.50 125.70 124.90 68.70 283.00 206.00 60.15~0.3
125(140)164.00 140.75 139.90 76.30 369.30 285.00 60.15~0.3
150(160)186.00 160.80 159.90 87.00 390.00 285.00 60.15~0.3


DN65-De125
No.ParteQuantityMaterial
01Body1PVC-U/PVC-C
02Rubber ring1EPDM/FPM
03Trap1PVC-U/PVC-C
04Fixed pin1Stainless Steel
05O-ring1EPDM/FPM
06Cover1PVC-U/PVC-C
07Blot8Stainless Steel
08Nut8Stainless Steel
09Gasket8Stainless Steel

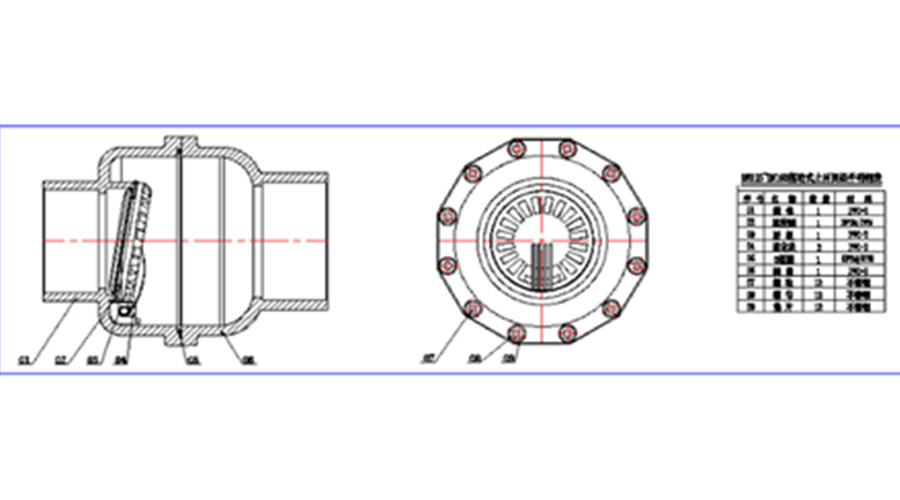

DN125-DN150
No.ParteQuantityMaterial
01Body1PVC-U/PVC-C
02Rubber ring1EPDM/FPM
03Trap1PVC-U/PVC-C
04Fixed block2Stainless Steel
05O-ring1EPDM/FPM
06Cover1PVC-U/PVC-C
07Blot12Stainless Steel
08Nut12Stainless Steel
09Gasket12Stainless Steel


NoDescriptionSizePcs/ctnWeight (g/pcs)

Length

(cm)

Width

(cm)

Height (cm)
1Swinging bottom valveDN6563078.79 48.53632
2DN8063283.28 48.53632
3DN10026556.55 432340
4De12526981.70 432340
5DN125114151.46 282851
6DN150114913.65 303053
