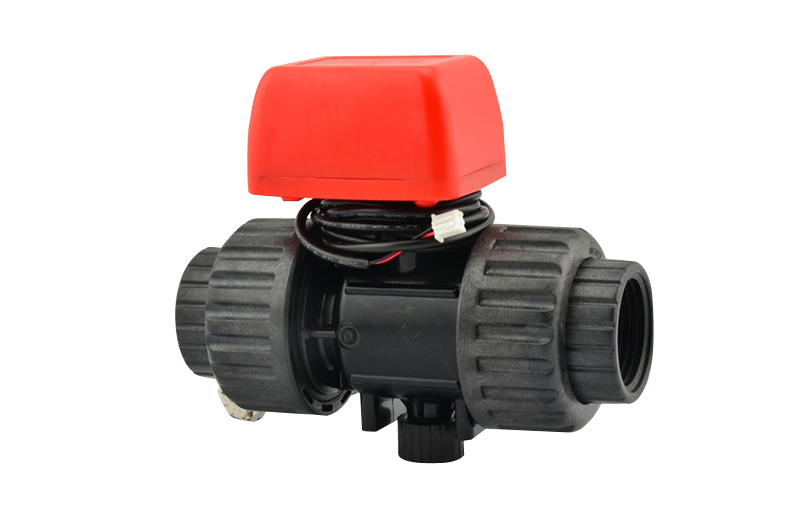

Plastic Electric Ball Valves

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ Customizable price / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T D/P

Keywords:Plastic Electric Ball  Valves

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Valves & Pumps & Compressors Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai/ningbo

The valve body uses PPO material with an IP65 protective grade, allowing it to work great in humid environments. The valve core uses ceramics that are wear resistant and feature a service life of more than 100,000 uses. These plastic electric ball valves are suitable for controlling an array of media, including water, air, oil, acid and alkali corrosive mediums, and low viscosity fluids in the chemical industry.

There are two types available: plastic two way electric ball valves and plastic three way electric ball valves.

Performance Parameters

Operating pressure: 0-1.6MPa
Operating temperature: 0-60
Material for valve stem: 316LHarley alloy steel B or C is available upon request.)
Seals material: EPDM or Fluororubber(optional)
Protection class: IP65



Product Models



Plastic Two-Way Electric Ball Valves through threaded joint

Plastic Two-Way Electric Ball Valves through threaded joint.

Model

Nominal diameter

Wiring type

Open/close time

Input Voltage

Motor power

Actual Power

Q91103-1520/25

DN15
thread size: G1/2 glue
socket: φ20.2
DN20
thread size: G3/4 glue socket: φ25.2
DN25
thread size: G1 glue socket: φ32.2

2 wires●positive and negative connection

12.5s/3s

DC6V/12V/ 24V

2W-4W

0.4W-2.5W

Q91102B-1520/25

2 wires● auto return

12.5s/3s

DC9V-24V

Q91102B1-1520/25

3 wires● auto return

12.5s/3s

DC12V-24V

Q91103C-1520/25

3 wires common line

12.5s/3s

DC6V/12V/ 24V

Q91105C-15 20/25

3 wires●AC220V

12.5s

AC220V

6W

0.4W-2.5W

QQ91103D-15 20/25

5 wires●position feedback

3s

DC24V

4W

0.4W-2.5W

Q91103-3240/50

DN32
thread size: G1/4 glue socket: φ40.2
DN40
thread size: G1/2 glue socket: φ50.5
DN50
thread size: G2 glue socket: φ63.2

2 wires● positive and negative connection

7.5s

DC12V-24V

6W

2W

Q91103C-3240/50

3-wire common line

7.5s

DC12V-24V

QQ91103D-3240/50

5 wires●position feedback

7.5s

DC24V

Q91105D-3240/50

6 wires●signal feedback

12s

AC220V

DN4011W DN5014W

DN32:1W
DN40: 3W DN50:3.5W



Plastic Two-Way Electric Ball Valves jointed by glue (Nominal Diameter: 47mm/58mm)

Plastic 2-way electric ball valve with glue connectionwith size of 47mm/58mm

Nominal diameter

Wiring type

Open/close time

Input voltage

Motor power

Actual power

Q93153D-65

5 wires●signal feedback DC24V

15s

DC24V

45W

8.5W

Q93155D-65

6 wires●signal feedback AC220V

15s

AC220V

Q93153D-80

5 wires●signal feedback DC24V

15s

DC24V

45W

10.5W

Q93155D-80

6 wires●signal feedback AC220V

15s

AC220V



Plastic Three-Way Electric Ball Valves jointed by thread

Nominal diameter

Wiring type

Model

Open/close time

Input voltage

Motor power

Actual power

DN25/ DN32/ DN40/ DN50

2 wires●positive and negative connection

Q91403-2532/40/50

7.5s

DN25/32/40: DC12V/24V DN50: DC24V

DN25 /32:6W DN40: 10W DN50: 16W

DN25 /32: 2W DN40: 5W DN50: 6W

3 wires●common

Q91403C-2532/40/50

7.5s

DN25/32/40:DC12V/24V DN50: DC24V

5 wires●position feedback

Q91403D-2532/40/50

7.5s

DC24V

6 wires●position feedback

Q91405D-2532/40/50

7.5s

AC220V

DN25 /32:11W DN40: 11W DN50: 14W

DN25 /32:1W DN40: 3W DN50: 3.5W





Plastic Three-Way Electric Ball Valves jointed by glue(Nominal Diameter: 21.5mm-37.7mm)

Norminal diameter

Wiring type

Model

Open/close time

Input voltage

Motor power

Actual power

ND25
21.5mm

2 wires●positive and negative connection

Q93403-25

7.5S

DC12V/24V

6W

2W

3 wires●common

Q93403C-25

7.5S

DC12V/24V

5 wires●position feedback DC24V

Q93403D-25

7.5S

DC24V

6 wires●position feedback AC220

Q93405D-25

12s

AC229V

11W

1W

ND32
21.5mm

2 wires●positive and negative connection

Q93403-32

7.5S

DC12V/24V

6W

2W

3 wires●common

Q93403C-32

7.5S

DC12V/24V

5 wires●position feedback DC24V

Q93403D-32

7.5S

DC24V

6 wires●position feedback AC220

Q93405D-32

12s

AC229V

11W

1W

ND40
29mm

2 wires●positive and negative connection

Q93403-40

7.5S

DC12V/24V

10W

5W

3 wires●common

Q93403C-40

7.5S

DC12V/24V

5 wires●position feedback DC24V

Q93403D-40

7.5S

DC24V

6 wires●position feedback AC220

Q93405D-40

12s

AC229V

11W

3W

ND50
37.7mm

2 wires●positive and negative connection

Q93403-50

7.5S

DC12V/24V

16W

6W

3 wires●common

Q93403C-50

7.5S

DC12V/24V

5 wires●position feedback DC24V

Q93403D-50

7.5S

DC24V

6 wires●position feedback AC220

Q93405D-50

12s

AC229V

14W

3.5W

Product name

3-way electric ball valveceramic core

Working temperature

0--60 (EPDM seal)

Valve body material

reinforced PPO (acid and alkali resistance)

0--60 (FKM seal)

Working pressure

0-1.0MPa0-10kg

Ball valve size

Reduced bore ballvalve21.5mm-37.7mm

Ball valve structure

3-way floating ball valvehard-seal ball valve

Valve stem material

316L as the default option; optional: Hastelloy B or Hastelloy B

Suitable fluid

Water, oil, acid or alkali corrosive media and low viscosity fluid in chemical industryprotection class: IP65
