XIANGLI ANTI-STATIC DECORATIVE MATERIAL CO.,LTD(JIANGSU)
Business Type:Manufacturer
Main Products: Anti-Static raised floorsteel raised floorwoodcore raised floorcalcium sulphate raised flooraluminium raised floorperforated raised floorOA network raised floorHPL/PVC/Ceramic finish raised floormagnetic carpetpedestal and stringer
view on mobile
Anti-static wood core raised access floor tile with ceramic finish
Construction & Decoration Flooring
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:Anti-Static Flooring raised floor access floor false floor elevated floor chipboard raised floor woodcore raised floor data center flooring system server room flooring system ceramic finish raised floor
| Product Category: | Construction & Decoration > Flooring | Trademark: | Xiangli |
| Product Package: | pallet | Specifications: | 600*600*40mm |
| Place of Origin: | China | Port: | Shanghai |
high quality chipboard wood core raised access floor coated with Ceramic,HPL,PVC for computer room,data center
Introduction & Advantage
Imported high quality chipboard base material,be coated with HPL,or PVC ,or ceramic,four edge sealed with conductive regula, bottom is galvanized steel.
Details
1.High density particle board,PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal , assembly agility, large wire, good exchangeability.
4.Outlet mating . Elegant appearance for paving wildly brand top tiles.
5.light weight ,high loading capacity ,excellent raised flooring in 21th
6.light weight ,convenient removing, saving

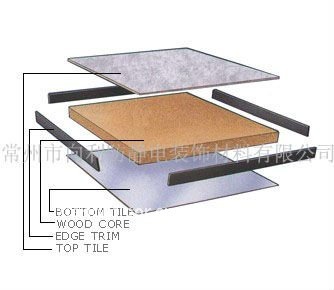

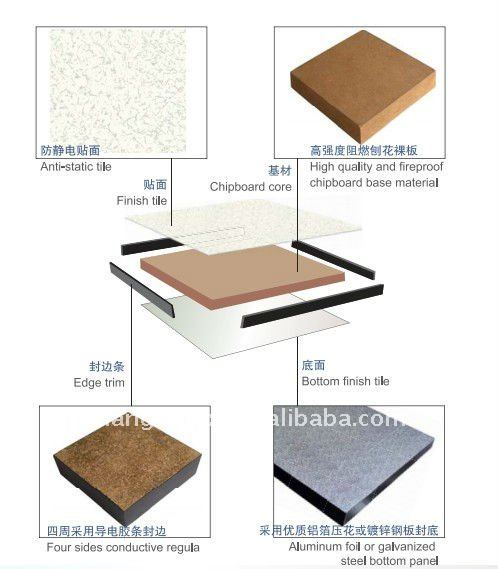

structure
1.panel- 30/38mm thickness particle board ,PVC/ABS corvered four edges,steel/aluminium on the bottom plate ,wildly brand top tiles could be carpet ,HPL PVC ,steel plate,aluminium foil or other tiles as you like
2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system
Application
Wide range of the application , all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office
Type& Technology parameter
Type | International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | |||||||
XL-2001 | FS440 | 600x600x32 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
XL-2002 | FS662 | 600x600x40 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
XL-2003 | FS800 | 600x600x40 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
Standard Pedestal SPEC:
FFH(mm) | tub diameter(mm) | adjustment +(mm) | adjustment – (mm) |
600 | 25 | 20 | 10 |
700~900 | 32 | 20 | 10 |
1000~1500 | 45 | 20 | 10 |
Other height could be customized.
Standard Stringer SPEC: 570x21x32mm
| Contact Name: | Miss Ada LIU | Contact Email: | sa****7@xlraisedfloor.com |
| Contact Job Title: | Export Manager | Contact Mob: | 137***570 |
| Contact Tel: | 86-519-88611-063 | Contact Fax: | 86-519-88611-095 |
| Address: | NO 1.,Xingchen Road, Hengshanqiao Town, Wujin District, Changzhou, Jiangsu, China, 213119 | Website: | www.xlraisedfloor.com |
To protect your data cabling and ensure the full versatility of your space, there’s no better solution than raised floor. Raised flooring enables all manner of cords, cables and wiring to be hidden conveniently beneath your feet, easily accessed for repairs and modifications by simply lifting the panel! Raised flooring also has flooring with perforations, to allow for cooler data centers! XIANGLI Group is here to help you reap the benefits of raised flooring by providing products that are optimal for your space. We're the premier supplier and consultant for your investment in raised access flooring.
Raised floor panels are optimal for a wide range of settings. Whether you're operating a data center that serves tons of thousands with digital storage, or you're running a multi-million-dollar company's servers, raised flooring is the ideal way to finish a space without compromising its integrity, organization or navigability. Our floors are strong, durable and safe, ensuring all of the vital components below them are preserved to the fullest. And, because they're more affordable than other approaches to cable management and space design, more and more businesses are choosing raised access flooring for their facilities.
Take a look at just a few more reasons to call XIANGLI GROUP. when you make the decision to invest in raised flooring:
1.Our company is backed by over 25 years of professional experience.
2.We are the manufacturer and sell raised flooring directly.
3.We sell millions of square feet of raised flooring products per year!
4.We use “Bao steel” galvanized steel and tai Abang glue of Japan.
5.Cross Strengthening Rib which can strengthen 10-30% loading capacity is our PATENT.
