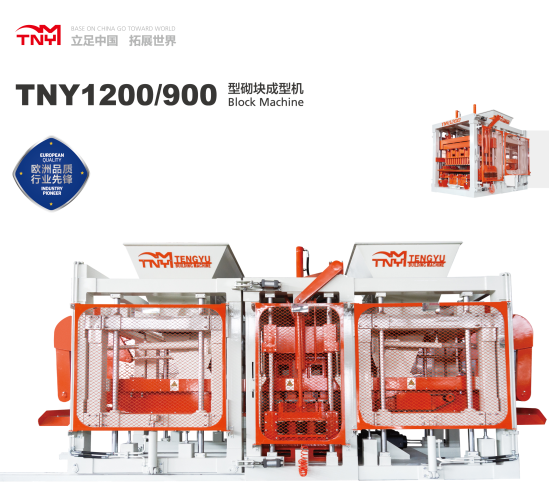

TNY1200 FULLY ATUOMATIC BLOCK PRODUCTION LINE
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:block machine block making machine
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | LIANYUNGANG |

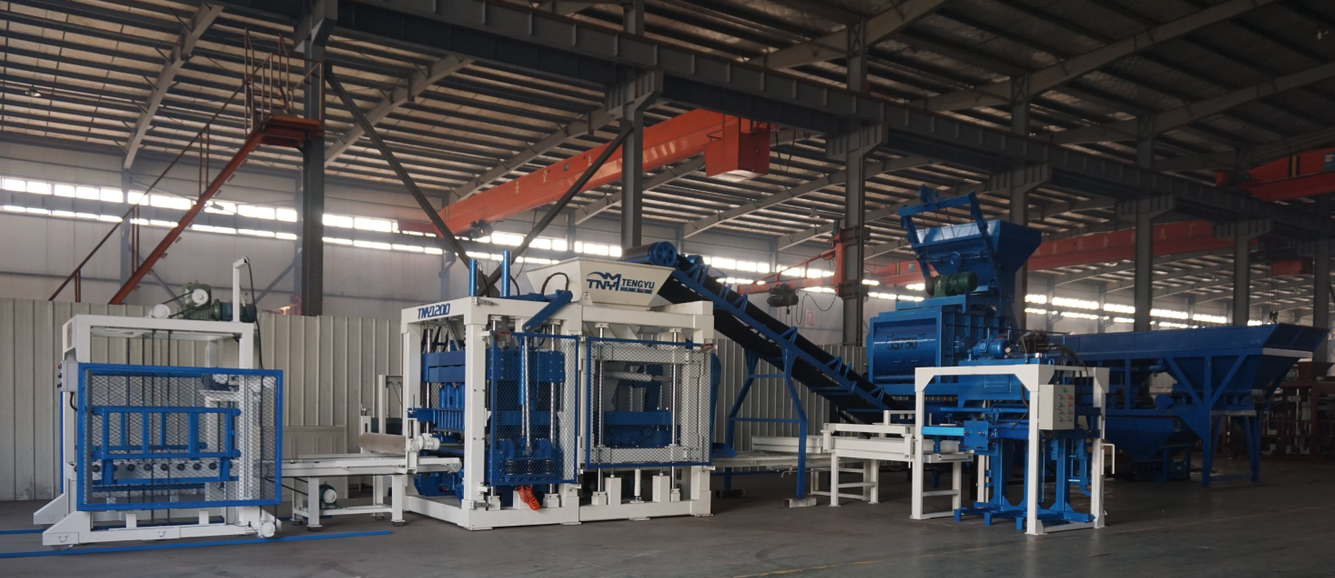

TNY1200 Automatic Block Production Line
The whole process is finished automatic. Such as raw material ratio, block forming, pallet feeding, pallet-block separated, pallet cleaning, pallet returning. and etc. The workers just need to control the whole system easily by surveil. Lots of materials can be used to make all kinds of blocks. Not only sand concrete, but also industry waste or residue (for example: fly ash, slag, steel residue, coal gangue), construction rubbish. It can produce blocks, hollow bricks, color pavers, porous blocks, etc.
Main Parameters:
Model | Cycle Time (s) | Pallet Size (mm) | Power(kw) | Weight(Kg) | Specification (mm) |
TNY1200 | 12-18 | 1400x900x45 | 75 | 26800 | 13000x2850x3350 |
Capacity
Type | Product Size (mm) | No./pallet | Block/hour | Block/8hours | Photo |
Hollow Block | 390×190×190 | 12 | 2880 | 23040 | |
Solid Brick | 240×115×53 | 65 | 15600 | 124800 | |
Paver | 200x100x60 | 48 | 8640 | 69120 |
