PIPE STAND
Manufacturing & Processing Machinery Pipeline Engineering & Equipment
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:pipe threading machine ROLL GROOVING MACHINE PIPE CUTTING MACHINE PIPE STAND PIPE SUPPORT
| Product Category: | Manufacturing & Processing Machinery > Pipeline Engineering & Equipment | Trademark: | TUWEI |
| Product Package: | wooden case | Specifications: | depends on which one you need |
| Place of Origin: | CHINA | Port: | NINGBO/SHANGHAI |

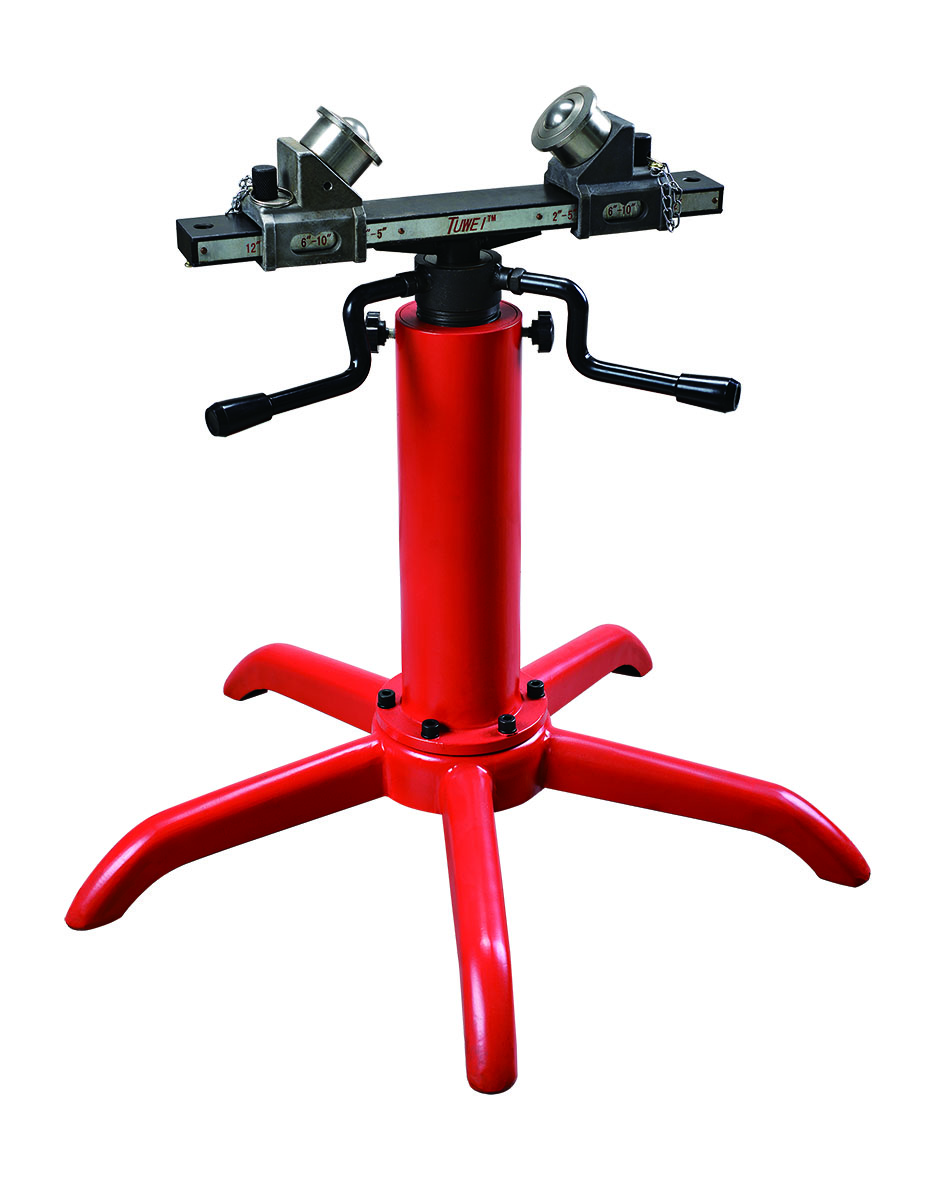

Grooved pipe stand is an important spare part for grooving machine, basically, it is used to support pipe, especially when the pipe is longer than 50cm, operators need to place 2 or 3 sets pipe stand when the pipe length is longer than or equal to 12M.
Except supporting pipe, there are still two functions of pipe stand, one is adjusting pipe height and the other is avoiding pipe running.
a) No matter for roll grooving machine, or pipe cutting machine or other pipe working applications, operators need to adjust pipe height to meet the machines’ central height, but roll grooving machine is different from pipe cutting machine by adjusting pipe stand, for roll grooving machine, the pipe stand should be placed at a position equal to 3/4 of pipe, adjusting pipe stand height to make the pipe 1 degree lower than the horizontal level. But for pipe cutting machine, the pipe stand should be placed at a position equal to 3/4 of pipe, adjust pipe stand height to make the pipe at horizontal level. It is based on considering the pressure of steel pipe weight on the main shaft, the main shaft will slight downwelling, especially loading the bigger size pipe with long length.
b) Sometimes, pipe will run during the grooving or cutting, pipe runs inward or outward, at this time, operators need to adjust pipe stand by moving left or moving right.

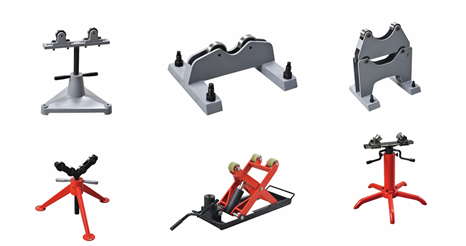

We designed different pipe stands for different models, different pipe stands with different structure, some are five claw base , but some are triangular base; some are screw rod structure, but some are supported by hydraulic oil pump; some are operated by hands, but some are adjusted by foot. Some are portable and light, but some are heavy enough which move forward or backward by using slideway. Some are with universal ball, but some are with bearings; some are using steel ball, but some are using nylon ball. Even though there are many kinds of pipe stand, but many pipe stands can not be interchanged because the central height of machine is different. Well the pipe stand for some models are universal, for example, the pipe stand for 2inch to 12inch roll grooving machine is same as 1inch to 12inch roll grooving machine, customers need to pay attention when place orders of pipe stand.
| Contact Name: | Miss. Alice Li | Contact Email: | al****e@cntuwei.com |
| Contact Job Title: | Business Lady | Contact Mob: | 136***548 |
| Contact Tel: | Contact Fax: | ||
| Address: | No. 22 Beiyuan ave., Beicheng development zone, Huangyan, Taizhou, China | Website: | www.cntuwei.com |
Zhejiang Victaulic-Tuwei Piping Equipment CO.,LTD who is committed to develop and manufacture the quick connection tools of pipelines in Zhejiang province. It is an American-Sino Joint Venture company and it is a part of Victaulic company. On the base of both Tuwei and Victaulic’s technology, Victaulic-Tuwei company is entering a new stage of well-grounded development and accelerated emergence.
Our major products are roll grooving machine, pipe cutting machine, hole cutting machine, pipe threading machine……We always pay special attention to independent research and development of new products, serious product quality and good after-sales services. Sales network of Victaulic-Tuwei cover all of domestic and abroad. More than 50% of our products have been exported to Europe, America, Southeast Asia and the Middle East.
We will always try our best to provide our best and most suitable products to customers. The developing Victaulic-Tuwei needs your more support and let’s stride forward! We believe that we provide more than trust.
