alkali resistance fiberglass mesh
Construction & Decoration Building Structural Material
MOQ:50000 Square Meter(s)
Payment Method : T/T
Keywords:alkali resistance fiber mesh reinfoeced fibergalss mesh plaster fibergalss mesh fiber mesh for cement back Reinforcement Concrete Mesh fiberglass mesh for waterproof
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | yaoxing |
| Product Package: | shrink film bag per roll , in carton | Specifications: | 160g, 4mm*4mm , 1*50m/1*90m or customized |
| Place of Origin: | china | Port: | lianyungang |
Description:

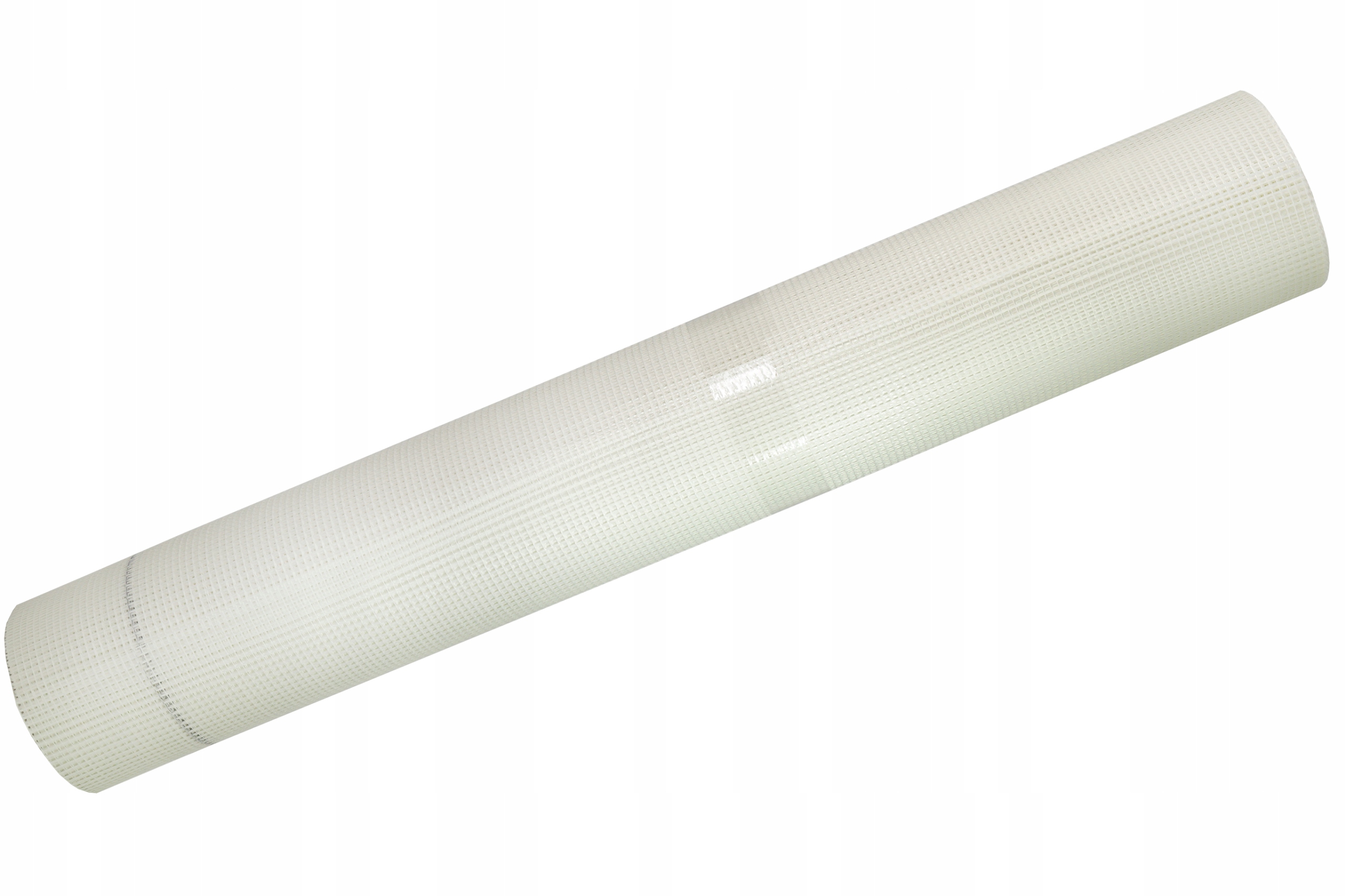

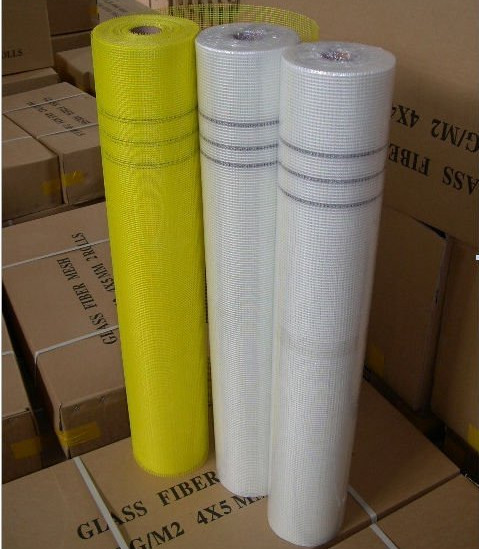

Fiberglass Mesh is is based C-glass yarn as raw material, then coated by alkaline resistant latex. Featured by high strength and low weight, alkali resistant, good insulation properties and dimensional stability, etc.
Application:

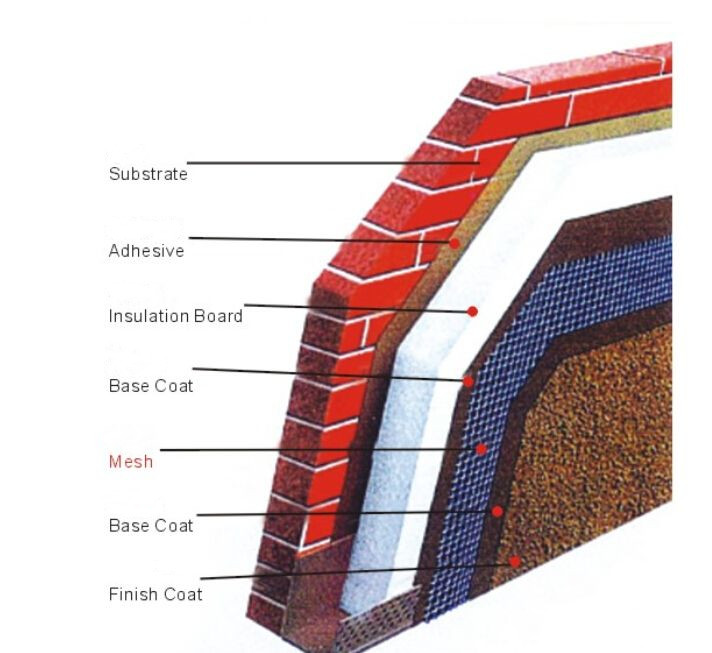

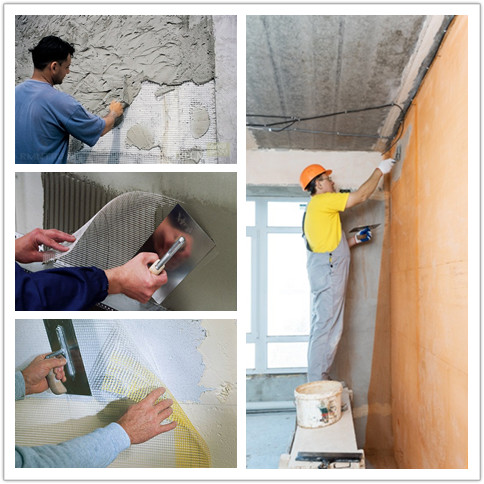

1. Wall reinforced material (such as fiberglass wall mesh, GRC wall panels, EPS insulation with the wall board, gypsum board, bitumen)
2. Reinforced cement products.
3. Used for Granite, mosaic, marble back mesh etc.
4.Waterproof membrane fabric, asphalt roofing.
Technical Paramenters :
| technical data | ||||||||||||
| No. | Width（M） | Tex | Mesh size Size ( mm ) | Density pcs/sq.inch | Weave | Resin Content % | Weight g/m2 | breaking strength（N/50mm） | ||||
| Warp | Weft | Warp | Weft | Warp | Weft | Leno | Warp | Weft | ||||
| 1 | 0.1-2.1 | 32x2 | 204 | 5 | 5 | 5±0.5 | 5±0.5 | Leno | 20±2 | 65±3 | 500 | 800 |
| 2 | 0.1-2.1 | 50x2 | 255 | 5 | 5 | 5±0.5 | 5±0.5 | Leno | 18±2 | 80±3 | 800 | 900 |
| 3 | 0.1-2.1 | 100x2 | 306 | 5 | 5 | 5±0.5 | 5±0.5 | Leno | 18±2 | 125±3 | 1100 | 1300 |
| 4 | 0.1-2.1 | 134x2 | 357 | 5 | 5 | 5±0.5 | 5±0.5 | Leno | 18±2 | 145±3 | 1300 | 1500 |
| 5 | 0.1-2.1 | 134x2 | 408 | 5 | 5 | 5±0.5 | 5±0.5 | Leno | 18±2 | 160±3 | 1300 | 1700 |
| 6 | 0.1-2.1 | 50x2 | 204 | 4 | 5 | 5±0.5 | 5±0.5 | Leno | 18±2 | 80±3 | 850 | 800 |
| 7 | 0.1-2.1 | 100x2 | 255 | 4 | 5 | 6±0.5 | 5±0.5 | Leno | 18±2 | 110±3 | 1100 | 1000 |
| 8 | 0.1-2.1 | 134x2 | 306 | 4 | 5 | 6±0.5 | 5±0.5 | Leno | 18±2 | 145±3 | 1400 | 1300 |
| 9 | 0.1-2.1 | 32x2 | 201 | 4 | 4 | 6±0.5 | 6±0.5 | Leno | 18±2 | 80±3 | 550 | 850 |
| 10 | 0.1-2.1 | 100x2 | 204 | 4 | 4 | 6±0.5 | 6±0.5 | Leno | 18±2 | 120±3 | 1100 | 900 |
| 11 | 0.1-2.1 | 134x2 | 255 | 4 | 4 | 6±0.5 | 6±0.5 | Leno | 18±2 | 150±3 | 1400 | 1200 |
| 12 | 0.1-2.1 | 134x2 | 306 | 4 | 4 | 6±0.5 | 6±0.5 | Leno | 18±2 | 165±3 | 1400 | 1600 |
| 13 | 0.1-2.1 | 50x2 | 306 | 5 | 6 | 5±0.5 | 4±0.5 | Leno | 18±2 | 80±3 | 500 | 1000 |
| 14 | 0.1-2.1 | 100x2 | 357 | 5 | 6 | 5±0.5 | 4±0.5 | Leno | 18±2 | 120±3 | 1000 | 1200 |
| 15 | 0.1-2.1 | 255x2 | 408 | 10 | 10 | 2.5 | 2.5 | Leno | 18±2 | 110±3 | 1000 | 1200 |
| 16 | 0.1-2.1 | 255x2 | 561 | 10 | 10 | 2.5 | 2.5 | Leno | 18±2 | 125±3 | 1000 | 1400 |
| 17 | 0.1-2.1 | 375x2 | 561 | 10 | 10 | 2.5 | 2.5 | Leno | 18±2 | 145±3 | 1300 | 1500 |
| 18 | 0.1-2.1 | 33x2 | 45 | 2.8 | 2.8 | 9±0.5 | 9±0.5 | Leno | 21±2 | 50±3 | 500 | 450 |
| 19 | 0.1-2.1 | 33x2 | 67 | 2.8 | 2.8 | 9±0.5 | 9±0.5 | Leno | 21±2 | 60±3 | 500 | 500 |
| Contact Name: | Miss Nancy Shi | Contact Email: | na****y@sqyxbx.com |
| Contact Job Title: | Export Manager | Contact Mob: | 189***980 |
| Contact Tel: | Contact Fax: | ||
| Address: | 8#，FuChun Jiang Road , Economic Development Zone , SuQian,JiangSu , China | Website: | www.sqyxbx.com |
Suqian Yaoxing fiberglass co.,Ltd. established in 2002, which is professional on fiberglass materials manufacturing and selling. Currently, our factory covers an area 20000 square meters, fiberglass yarn drawing equipment more than 60 sets and weaving machine 200 sets. The company has more than 200 employees, we can supply C-glass Staple Fiber Yarns(medium alkali) and E-glass yarn (alkali-free) for the customer. Our products have a wide range of applications, such as EIFS mortar and concrete insulation mesh, Interior&Exterior wall reinforcing fiberglass mesh, Marble slab and Mosaic tile reinforcement mesh, Drywall joint repair self-adhesive tape, and so on. We are the largest fiberglass materials manufacturing base in the north of Jiangsu province. All of the products manufactured by the ISO 9001:2015 certificate, which provides our customers with first-class products and service.
