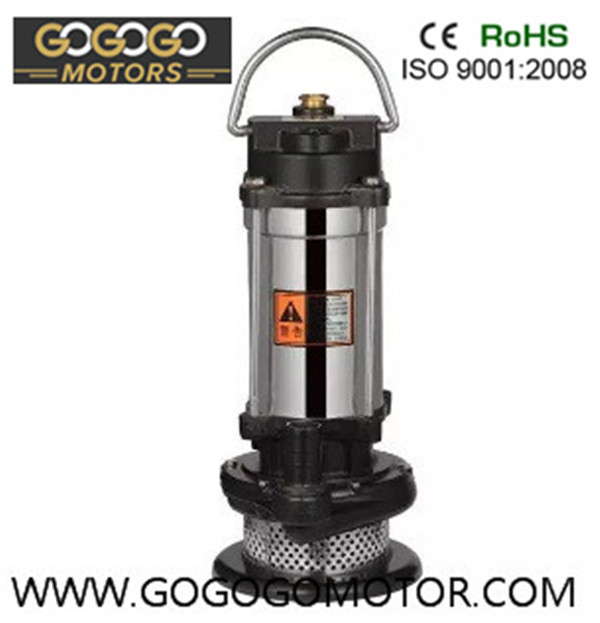

Chinese Best Home Use Small Qdx/Qd 1/2HP 1/3HP 3/4HP 1HP 2HP Submersible Pump (0.25kw-3kw)
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:20 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:Qdx Pump Submersible Pump Peripheral Pump Deep Well Pump Sewage Pump 220V 50Hz Pumps Water Distribution Water Supply Pump Electric Pump Centrifugal Pump
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | GOGOGO |
| Product Package: | Carton/Wooden Case/Plywood Case | Specifications: | 0.25kw 0.37kw 0.55kw,0.75kw,1.1kw,1.5kw 2.2kw 3kw |
| Place of Origin: | China | Port: | Ningbo |
APPLICATION
Q(D)X series submersible pump consist of pump, seal and motor, and equipmented with protection apparatus,
It is designed for clean water, widely used for drawing water from well, farm irrigation, garden, building construction,
breeding industry, and daily life. Moreover, it has small volume and light weight, more easy to use.
OPERATING LIMITS
Max.medium temperature+40°C
Max.ambient temperature+40°C
PH level from 6.5-8.5
Maximum sand content is 01%.Passage of suspended solids up to 0.2mm.
Voltage fluctuation range:0.9-1.1 times of the rated value lmmersion depth from 0.5m-5m
MOTOR INFORMATION
2 pole induction motor
Single phase/three phase,220v-240v,380v,400v,415v,460v .50hz,60hz,or 50/60Hz(on demand)
Thermal protector for single phase /three phase pumps
Insulation class:B/F/H
Protection class:IPX8
MATERIAL
Pump body:Cast iron/Aluminum/Stainless steel
Motor housing: Aluminum
Impeller:Aluminum
Motor wire:copper
Mechanical seal:Graphite&Ceramis
Shaft:45#steel/stainless steel
We produce also many other types of Submersible pumps accoridng to client request.
If you need Above QDX submersible pumps,welcome to inquiry now.
