Qdx Farm Irrgation 0.5 HP Submersible Electric Water Pump
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:20 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:Qdx Pump Submersible Pump Peripheral Pump Deep Well Pump Sewage Pump 220V 50Hz Pumps Water Distribution Water Supply Pump Electric Pump Centrifugal Pump
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | GOGOGO |
| Product Package: | Carton/Wooden Case/Plywood Case | Specifications: | 0.25kw 0.37kw 0.55kw,0.75kw,1.1kw,1.5kw 2.2kw 3kw |
| Place of Origin: | China | Port: | Ningbo |
APPLICATION
Q(D)X series submersible pump consist of pump, seal and motor, and equipmented with protection apparatus,
It is designed for clean water, widely used for drawing water from well, farm irrigation, garden, building construction,
breeding industry, and daily life. Moreover, it has small volume and light weight, more easy to use.
OPERATING LIMITS
Max.medium temperature+40°C
Max.ambient temperature+40°C
PH level from 6.5-8.5
Maximum sand content is 01%.Passage of suspended solids up to 0.2mm.
Voltage fluctuation range:0.9-1.1 times of the rated value lmmersion depth from 0.5m-5m
MOTOR INFORMATION
2 pole induction motor
Single phase/three phase,220v-240v,380v,400v,415v,460v .50hz,60hz,or 50/60Hz(on demand)
Thermal protector for single phase /three phase pumps
Insulation class:B/F/H
Protection class:IPX8

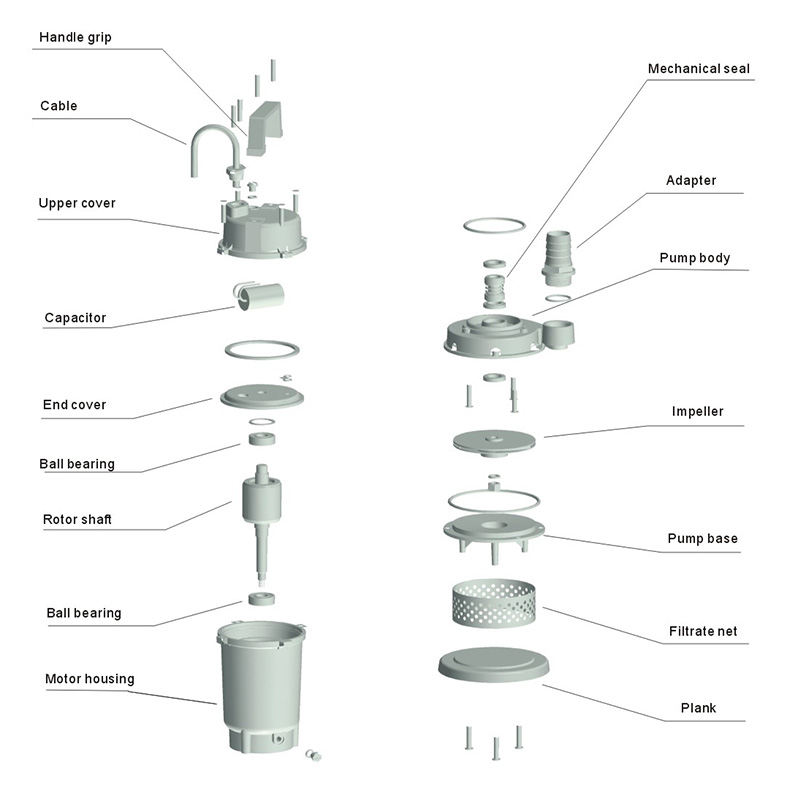

MATERIAL
Pump body:Cast iron/Aluminum/Stainless steel
Motor housing: Aluminum
Impeller:Aluminum
Motor wire:copper
Mechanical seal:Graphite&Ceramis
Shaft:45#steel/stainless steel
We produce also many other types of Submersible pumps accoridng to client request.
If you need Above QDX submersible pumps,welcome to inquiry now.
| Contact Name: | Mr. TONY ZUO | Contact Email: | to****y@gogogomotor.com |
| Contact Job Title: | Commercial Manager | Contact Mob: | 183***712 |
| Contact Tel: | Contact Fax: | ||
| Address: | jiakaicheng,zeguo,wenling | Website: | http://www.gogogomotor.com |
ZHEJIANG GOGOGO MECHANICAL&ELECTRICAL CO., LTD, as an experienced manufacturer and supplier of motors,water pumps and other derivative products. we have worked in the three phase electric motor,single phase capacitor start motor,Centrifugal Pipeline water pump, and Submersible Sewage Pump industry for more than 20 years, serving hundreds of customers and understanding the needs of different customers.Understand the various features of the products.In the process of work, he has encountered a variety of customers, some customers only need a single product.Some customers need a wide variety of products.To meet different special needs, we have begun to offer a wide variety of products.This can help customers save a lot of time,purchasing cost and effort.All what we have done has greatly improved customer satisfaction.And at the same time, customers have introduced more and more customers to us because they are satisfied with our products and services. Our own brand "GOGOGO MOTORS","EASTOP MOTOR" is very famous in many developping markets,such as Egypt, Sudan, Iraq, Morocco, Bangladesh, Philippines, Viatnam, Thailand, Ghana, Ethiopia, Srilanka, Poland, Spain, Turkey, Mexico, USA, Costa Rica, Colombia, Nigeria, Kenya,etc.more than 30 countries. We are located in Zeguo two, Wenling which is only 3 hours'way from Chinese 2nd largest port-Ningbo port.We have our own subsidiary electric motor factory, water pump factory,and high presurre cleaning machine factory.With our strong R&D team,can provide OEM/ODM/OTM service.we supply our products to ITT, ATLAS, CNP, WORDWIDE, etc. directly or via our agents.we export our products to more than 200, 000pcs every year. In order to ensure the quality of our products, we have strict quality control system for every process from raw material selection, parts processing,parts assemble,every testings to packagings.achieve the qualified rate of 100%, customer satisfaction rate of 98%. To support our custo
