Self-cleaning filter

Manufacturing & Processing Machinery Water treatment & Environment

FOB Price:US$ 1,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C

Keywords:自清洗过滤、电动刷

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Water treatment & Environment Trademark:
Product Package: Specifications:
Place of Origin: Port: Nanjing

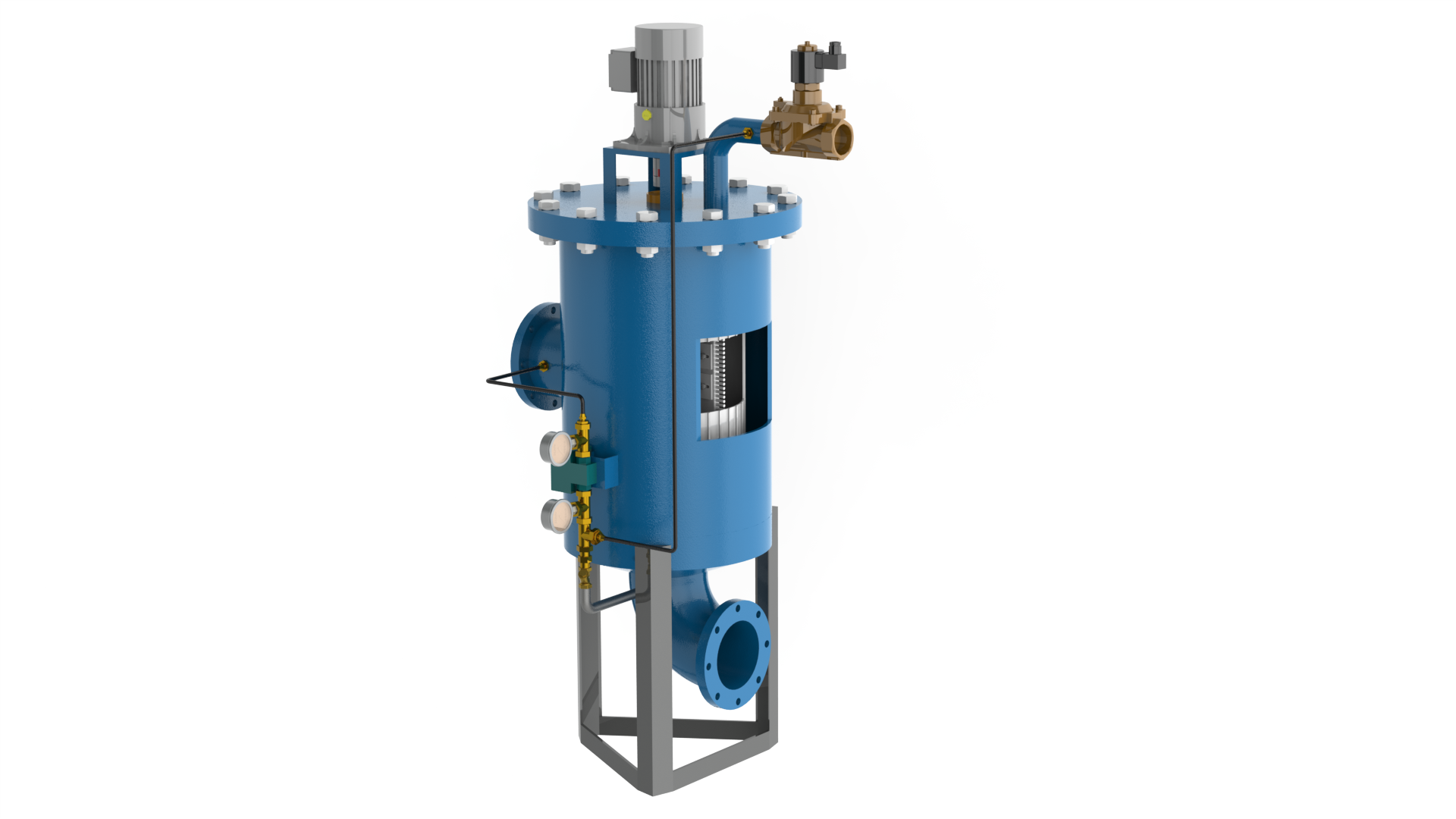

ACF过滤器工作原理



综述

ACF过滤器是适用于水质差情况下的电动刷式自清洗过滤器,共有4种型号,最高流量可达700m3,过滤精度从3500-100μm



过滤过程

原水从过滤器的“进口管”进入后,通过“滤网”再经由出口管向外流出,杂质积累在滤网内表面形成“滤饼”,随着滤网拦截的杂质的增加,过滤器进出口之间将产生压差。



自清洗过程

在过滤器清洗过程中,系统并不断流,仍在供水,过滤器的“排污阀”打开,“马达”启动并驱动过滤器内部的“刷式清洗装置”转动,将滤网拦截的杂质刷下并通过排污阀排出。



控制系统

过滤器本体上装设有“”压差开关,当压差达到设定值(通常是0.05Mpa)时,便传递信号给配套的控制箱,控制箱发出执行指令:启动马达,驱动内部的刷式清洗机构进行清洗,同时打开排污阀,杂质通过排污阀排出本体外,整个清洗过程仅需十几秒钟,清洗时系统不断流;控制箱设置有多项保护功能,并能记录系统清洗情况。



过滤器将在以下条件下启动一次自清洗过程:

1. 从压差开关接收到信号

2. 定时器达到预定时间

3. 手动启动



控制箱还有以下功能

清洗计数功能

报警输出-可接入中央控制室,远程监控过滤器的运行状态

可根据用户要求增设其他功能



ACF产品型号

ACF产品系列包含以下型号:

ACF100最高流量100m3/h

ACF300最高流量300m3/h

ACF500最高流量500m3/h

ACF700最高流量700m3/h













技术参数

过滤器型号

ACF100

ACF300

ACF500

ACF700



滤网参数

过滤面积cm2

700

2000

3100

4000

滤网类型

SS316楔行网/钻孔网





控制及配电

额定运行电压

三相220/380/440VAC50/60Hz(可根据用户要求提供其它电压等级)

电力马达

3/4马力;0.55KW减速输出18/分钟

1马力;0.75KW减速输出22/分钟

1.5马力;1.1KW减速机输出18/分钟

4x1马力(0.75KW)减速输出22/分钟

电流消耗

1.5A

2.5A

3.0A

2.5A

控制电压

24VAC







结构材质

过滤器外壳及端盖

碳钢37-2,环氧树脂涂布

清洗装置

不锈钢316L,高分子

排污阀

碳钢,不锈钢

密封圈

EPDMPTFE

控制

黄铜,不锈钢







*实际流量与过滤器滤网精度及水质状况有较大关系,详情请向本公司咨询。
