Ultrasonic Water Meter with Lora/NB-IOT wireless communication
Tools,Hardware & Instruments Measuring Instruments
MOQ:100 Piece(s)
Payment Method : L/C T/T Western Union Paypal
Keywords:wireless communication lora NB-IOT Smart Remote Control ultrasonic water meter Water Meters
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | SECK |
| Product Package: | carton | Specifications: | 30*20*25cm |
| Place of Origin: | CHINA | Port: | NINGBO |
1. SK-UM11 series ultrasonic water meter is developed based on the principle of propagation velocity difference method, and the measurement accuracy is stable.
2. Adopt low power design, a battery life length can be 10 years.
3. High repeatability, low pressure loss, no moving parts, accuracy requirements meet GB/778-2007, JJG162 - 2009 verification regulations.
4. The starting flow rate is low to 0.002 m3/h

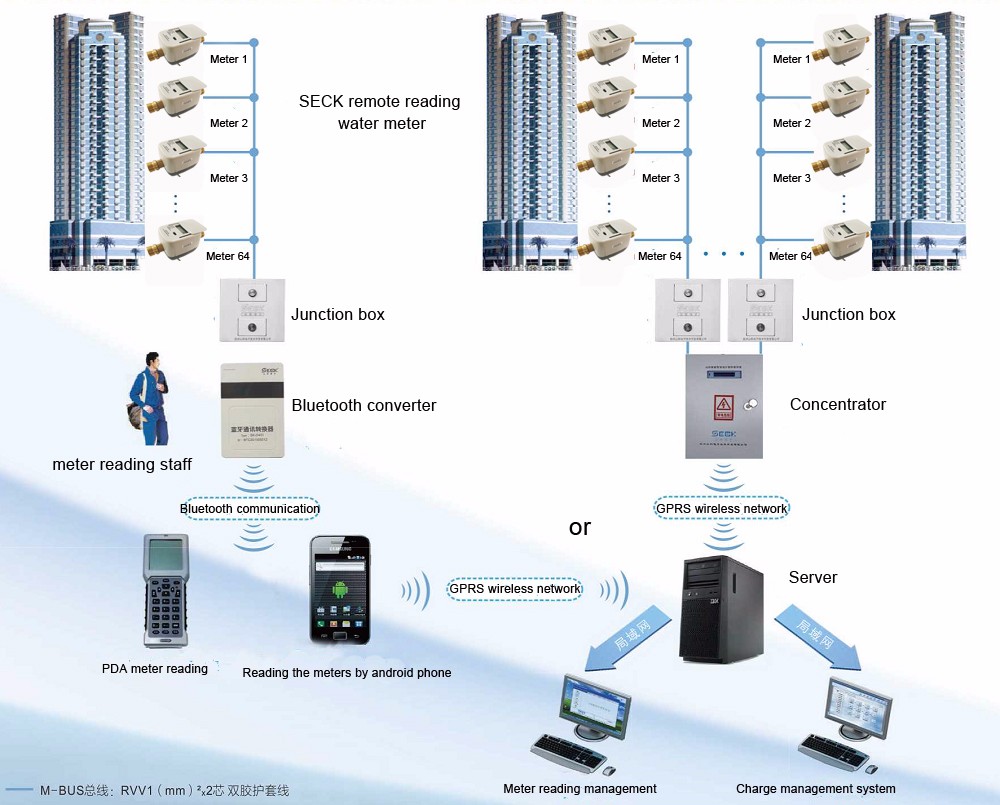

5. Support M-BUS or various wireless output, realize remote meter reading, facilitate centralized management of users, and realize intelligent analysis of pipe network data.
6. The ultrasonic water meter adopts IP68 waterproof design, which can be immersed in water for a long time.
7. The water meter can be mounted in many angles, and the measuring accuracy of the water meter is not affected.
Item | Parameter |
Accuracy | Class 2 |
Nominal Diameter (DN) | DN15 & DN20 |
Dynamic Range R | 250 |
Max. Permissible working Pressure | 1.6MPa |
Temperature class | T30 (default), or T50 |
Upstream Flow Field Sensitivity | U0 |
Downstream Flow Field Sensitivity | D0 |
Climate &Mechanical Environmental Conditions Class | C |
Electromagnetic Compatibility | E1 |
Content of Display | Cumulative flow: m3, Instantaneous flow rate: m3/h, Water Temperature, ℃, Cumulative effective running time: h, Date: y/m/d, Clock: h/m/s, Software version, Screen test |
Display Resolution | Cumulative flow rate: 0.001m3; |
Display Range | Cumulative flow rate: 0 m3~+999999.999m3 |
Keyboard | Light-sensitive Keys |

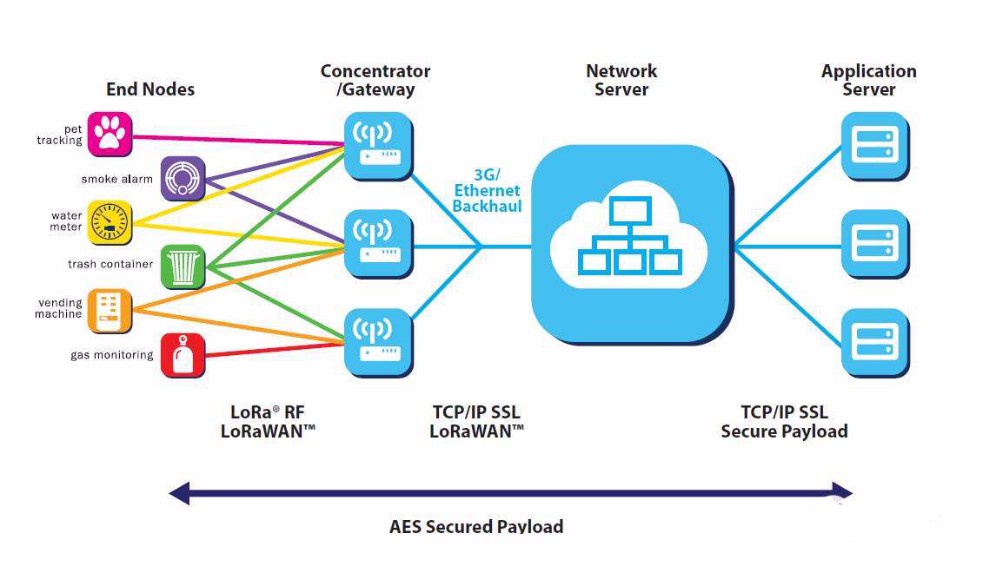

Type of Communication | M-BUS, RS485, Pulse/LoRa, LoRawan, NB-IOT |
Data storage | Storing accumulated flow monthly, automatically storing data for the last 24 months |
Power Supply | Battery DC3.6V |
Powder Consumption | 0.22mW |
Protection Class | IP68 |
Pressure loss rating | △P63 |
Nominal diameter(mm) | DN15 | DN20 |
Overload Flow rate, Q4(m3/h) | 3.125 | 5.000 |
Permanent Flow rate, Q3(m3/h) | 2.500 | 4.000 |
Transitional Flow rate, Q2(m3/h) | 0.016 | 0.0256 |
Minimum Flow rate, Q1(m3/h) | 0.010 | 0.016 |
Starting Flow rate(m3/h) | 0.002 | 0.002 |

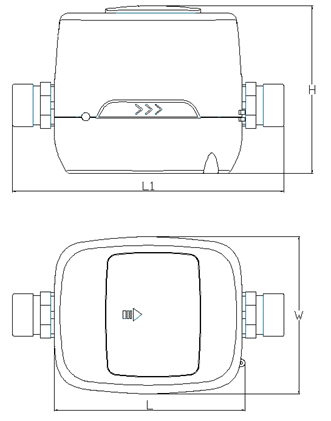

Nominal diameter | L1 | L | W | H | connecting threads | |
mm | d | D | ||||
DN15 | 165 | 116 | 96 | 102 | R1/2 | G3/4 |
DN20 | 195 | 116 | 96 | 102 | R3/4 | G1 |
