DN25-DN40 Ultrasonic Water Meter with wireless communication(Copy)
Tools,Hardware & Instruments Measuring Instruments
MOQ:100 Piece(s)
Payment Method : L/C T/T Western Union Paypal
Keywords:ultrasonic water meter water meter smart water meter DN25 DN40
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | SECK |
| Product Package: | carton | Specifications: | 30*20*25cm |
| Place of Origin: | China | Port: | NINGBO |
technical parameter list
Item | Parameter |
Accuracy | Class 2 |
Nominal Diameter.mm | DN25，DN32，DN40 |
Dynamic Range R | 250/400 |
Max. Permissible working Pressure | 1.6MPa |
Temperature class | T50 |
U5 | |
Downstream Flow Field Sensitivity | D3 |
Climate &Mechanical Environmental Conditions Class | O |
Electromagnetic Compatibility | E2 |
Content of Display | Cumulative flow rate: m3, Instantaneous flow rate: m3/h, Water Temperature, ℃, Cumulative effective running time: h, Date: y/m/d, Clock: h/m/s, Software version, Screen test |
Display Resolution | Cumulative flow rate: 0.001m3; Verification accumulation (0.001L) |
Display Range | Cumulative flow rate: 0 m3~+999999.999m3 |

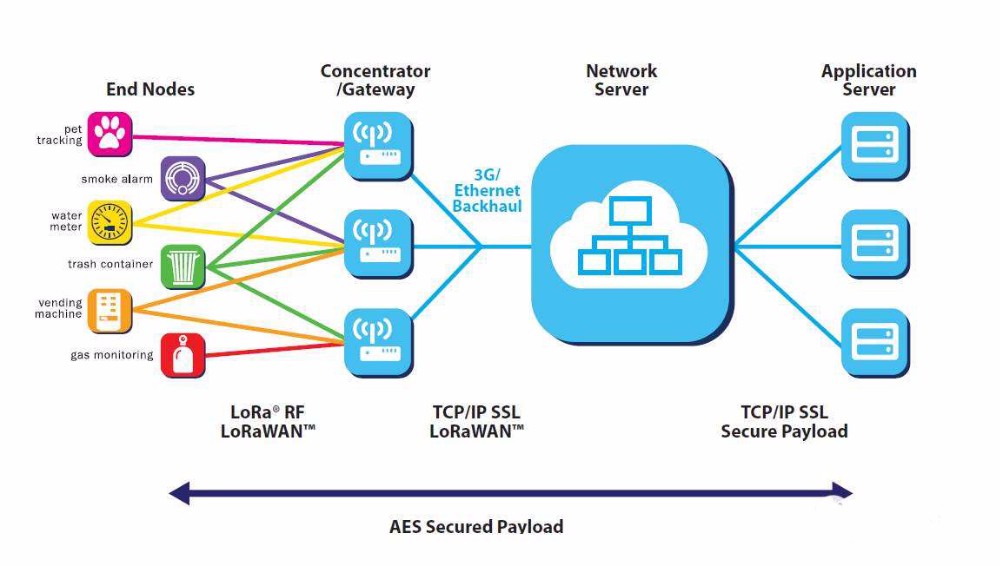

Type of Communication | M-BUS、Photoelectric Interface、Pulse/LoRa, LoRawan, NB-IOT |
Data storage | Storing accumulated flow monthly, automatically storing data for the last 24 months |
Power Supply | Battery Powered DC3.6V |
Protection Class | IP68 |
Pressure loss class | △P63 |
Flow parameter table
Nominal diameter(mm) | DN25 | DN32 | DN40 |
Overload flow Q4(m3/h) | 7.875 | 12.500 | 20.000 |
Permanent flow Q3(m3/h) | 6.300 | 10.000 | 16.000 |
Transitional flow Q2(m3/h) | 0.0252 | 0.0400 | 0.0640 |
Minimum Flow rate Q1(m3/h) | 0.0157 | 0.0250 | 0.0400 |
Starting Flow rate (m3/h) | 0.003 | 0.003 | 0.006 |

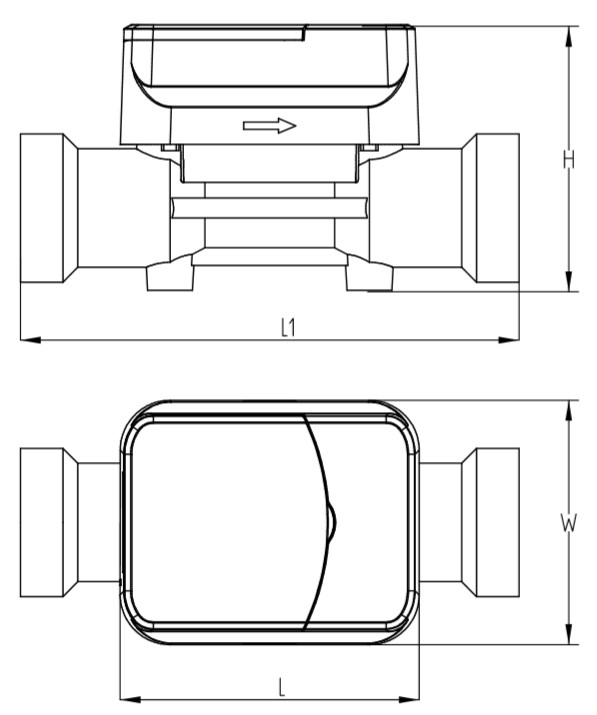

instrument size table
L1 | L | W | H | connecting threads | ||
mm | d | D | ||||
25 | 160 | 120 | 98 | 95 | R1 | G1/4 |
32 | 180 | 120 | 98 | 100 | R1/4 | G1-1/2 |
40 | 200 | 120 | 98 | 108 | R1-1/2 | G2 |
| Contact Name: | Mr Matt Wang | Contact Email: | ma****t@seck.com.cn |
| Contact Job Title: | Sales And Marketing | Contact Mob: | 156***565 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: | http://www.seck.com.cn:17934/en/ |
SECK has been committed to the water industry, through the integration of automation, information, software, communication technology, formed the overall solution to meet market demand for smart water. Help water companies to provide stable and reliable smart water technology, products and services. Focus on leading the new trend of Intelligent Water Service.
