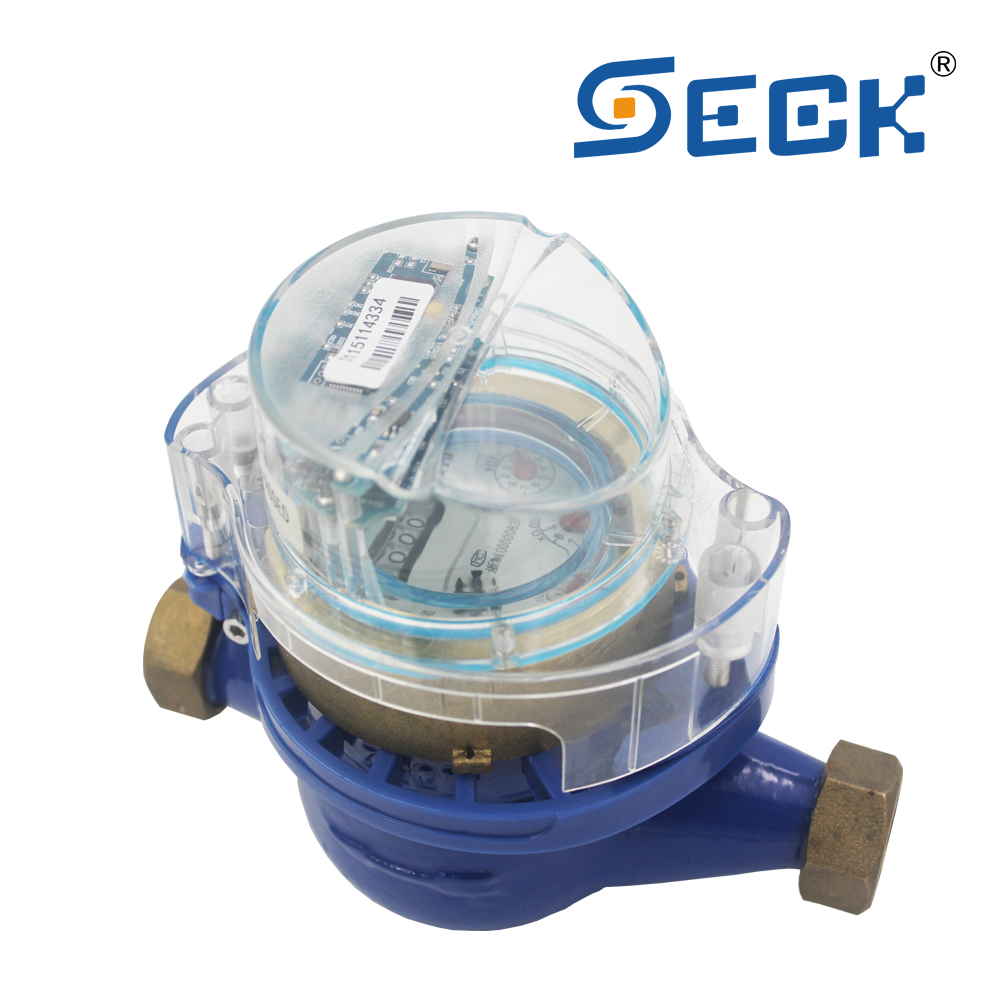

Camera Direct Reading Water Meter with Remote Reading System
Tools,Hardware & Instruments Measuring Instruments
MOQ:100 Piece(s)
Payment Method : L/C T/T Western Union Paypal
Keywords:Camera water meter Water Meters Direct reading Remote reading
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | SECK |
| Product Package: | carton | Specifications: | 30*25*20 |
| Place of Origin: | China | Port: | NINGBO |
1. This type of water meter based on OCR camera technology, direct reading of water meter, recognition accuracy of ±0.5ton, data accuracy of 99.9%
2. The entire modular design, can fit to any type of water meter.
3. The sensor module has long life time, and the electronic components can be used more than 100,000 times.
4. Support remote control, real-time shooting of water meter readings, without on-site personnel to check the meter, data traceability.
5. Support MBUS/LORA/NB-IOT communication, remote meter reading
Technical Parameter
Function item | Description |
Data collect method | Camera recognition |
Data communication | MBUS/LoRa/NB-IOT |
Battery Type | 3.6V, Lithium battery, replaceable, non-rechargeable (for wireless remote water meter) |
Battery life | ≥7 years （for wireless remote water meter） |
Accuracy class | Class B |
Max permissible pressure | 1Mpa |
Waterproof class | IP68 |
Performance parameters
Diameter (DN) | R (Q3/Q1) | Overload flow rate Q4 (m3/h) | Permanent flow rate Q3 (m3/h) | Transitional flow rate Q2 (L/h) | Min flow rate Q1 (L/h) | Min reading (m3) | Max reading (m3) |
15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 99999 |
100 | 40 | 25 | |||||
20 | 80 | 5 | 4 | 80 | 50 | ||
100 | 64 | 40 | |||||
25 | 80 | 7.875 | 6.3 | 126 | 78.75 | ||
100 | 100.8 | 63 |

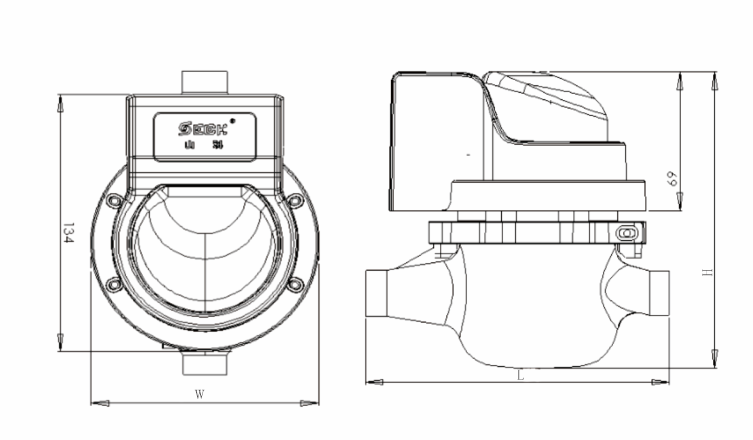

Diameter （DN） | L | W | H | Thread | |
mm | |||||
15 | 165 | 113 | 149 | R1/2 | G3/4 |
20 | 195 | 113 | 149 | R3/4 | G1 |
25 | 225 | 113 | 165 | R1 | G1 1/4 |
Note: based on the camera direct reading wireless remote communication water meter, the external size is for reference only.
