Brief of oilfield drilling mud agitator

Oilfield drilling mud agitator is well used on mud tank installation for tank agitating. AIPU is one of the famous agitator suppliers for different options like vertical installation or horizontal installation, worm gear or bevel gear, with coupler or without, single impeller or double. The agitator is combined with electrical motor, gear box, coupler, shaft, impeller and a pubic skid. Oilfield mud agitator is typically use flame proof motors and control panel which is higher standard for electricals compares non-explosion proof area like horizontal directional drilling, water well drilling and other construction drillings.

Oilfield drilling mud agitator is a very important to mix mud inside of tank to avoid solids build up in tank corner. There are different types of agitator depending on motor installation type, gear box type and jobsite footprint space. There is worm gear, bevel gear, horizontal installation and vertical installation for options. The agitators will be required for all mud storage tank, 24 hours working is essential because solids built in tank will be very hard to remove if without agitator. It is very important to keep the mud active in tank and able to pump to anywhere as per jobsite requirement.

Oilfield drilling mud agitator technical specification

Flame proof electrical motor with ExdIIbT4 or higher standard, IP 56 or higher protection level, Zone 1, 4 poles motor.

Worm or bevel gear options for open selection. Worm gear is cost effective but larger footprint and bevel gear is small foot print, high working effective and higher price.

Couper connected between electrical and gear for protection to pass motor rotation speed to gear box which will drive shaft.

Shaft installed on gear box for 1000mm to 2800mm depending on tank height. A stabilizer installed to help shaft working steadily.

Single layer or double later impeller installed on shaft to reach agitating performance.

Oilfield drilling mud agitator options

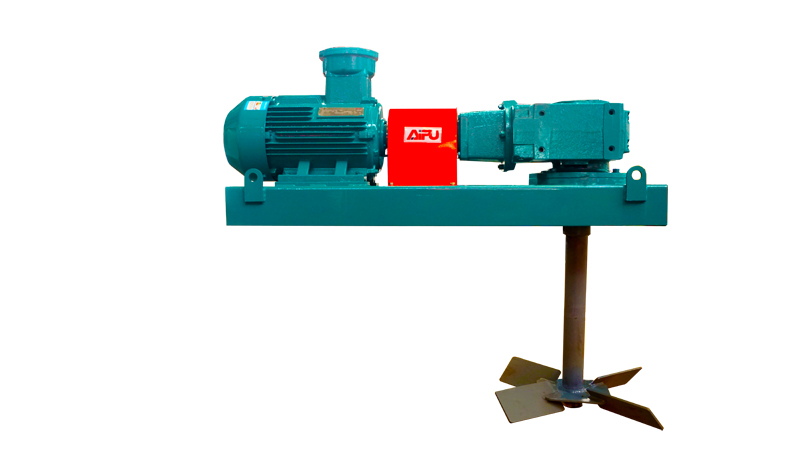

1. Horizontal worm gear type agitator, this is the most popular agitator used in oil and gas mud tank because it’s cost effective. There is coupler options for agitator to protect gear or options without coupler for saving cost.

2. Horizontal bevel gear type agitator, this is a very good option for larger torque and minimum footprint. The bevel gear is much higher torque compares worm gear. Better performance, higher cost.

3. Vertical agitator, this is well used for vertical tank with small footprint but higher height.

4. AIPU supply mud agitator for above options as per buyer’s request and cost budget. Other than agitator, AIPU supply a series equipment for mud tank or a whole tank with all tank attachment. Please contact us freely.

APMA series mud agitator is one of the most popular solids control equipment, due to low cost and durable performance. If you have any interest, contact us freely. You'll get optimal solution
