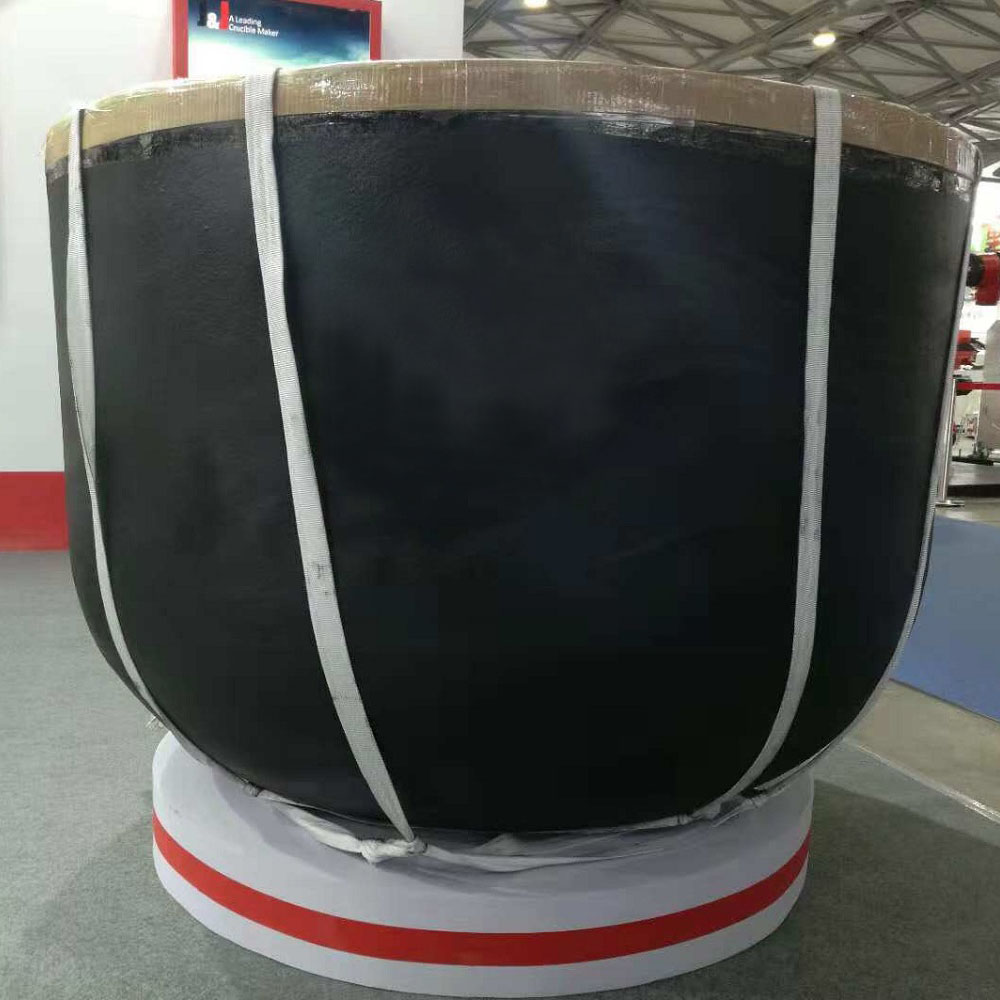

Silicon carbide graphite crucible

Ⅰ.Brief

Mainly used in the melting of non-ferrous metals, such as copper, aluminum, etc.It has the advantages of fast heat conduction, high temperature resistance, good thermal stability and no reaction with melting.

Ⅱ.Features

Use high thermal conductivity of graphite and other raw materials, shorten the melting time.

Heat shock resistance: high heat shock resistance, not easy to crack when cold or hot.

High heat resistance: high temperature resistance, can withstand 1200~1650 high temperature.

Ⅲ. Physical Properties

Bulk Density: 2.21—2.25 g/cm3

Apparent porosity: 9—12％

Modulus of Rupture: 8—12 Mpa

Thermal Expansion Rate: 3.0—4.5 (10-6  K-1)

Electrical Resistance: 3.5—4.5*10 -3Ω .CM (24℃)

3.0—4.0*10 -3Ω .CM （800℃）

Thermal Conductivity: 140—150 W/(m*K) (25℃)

40—50 W/(m*K) (800℃)

Ⅳ.Chemical analysis

C (free C ) 38—49%

SiC (silicon carbide) 39—53%

SiO2 3—5%

Si2—4%
